MacDon M205 - Switching the Installed Header Sensors on or off

214603 134 Revision A
1009971
CXXX
XXXX
VIEW ENGINE CODES?
NO/YES
C
C
B
A
D
Figure 3.169: M205 Engine Codes
10. Press right arrow (C) to select YES. Press SELECT (D).
11. Press left (B) or right (C) arrow to cycle through the last
ten recorded engine error codes until EXIT ENGINE
CODES is displayed.
• Refer to 8.4 Engine Error Codes, page 464.
12. Press right arrow (C) to select YES. Press SELECT (D).
13. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next diagnostic mode.
Switching the Installed Header Sensors ON or OFF
You can selectively enable or disable header sensors in the event of a malfunction or as part of a troubleshooting
routine.
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
• Disabled sensors flash the word SENSOR on CDM during regular operation.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C

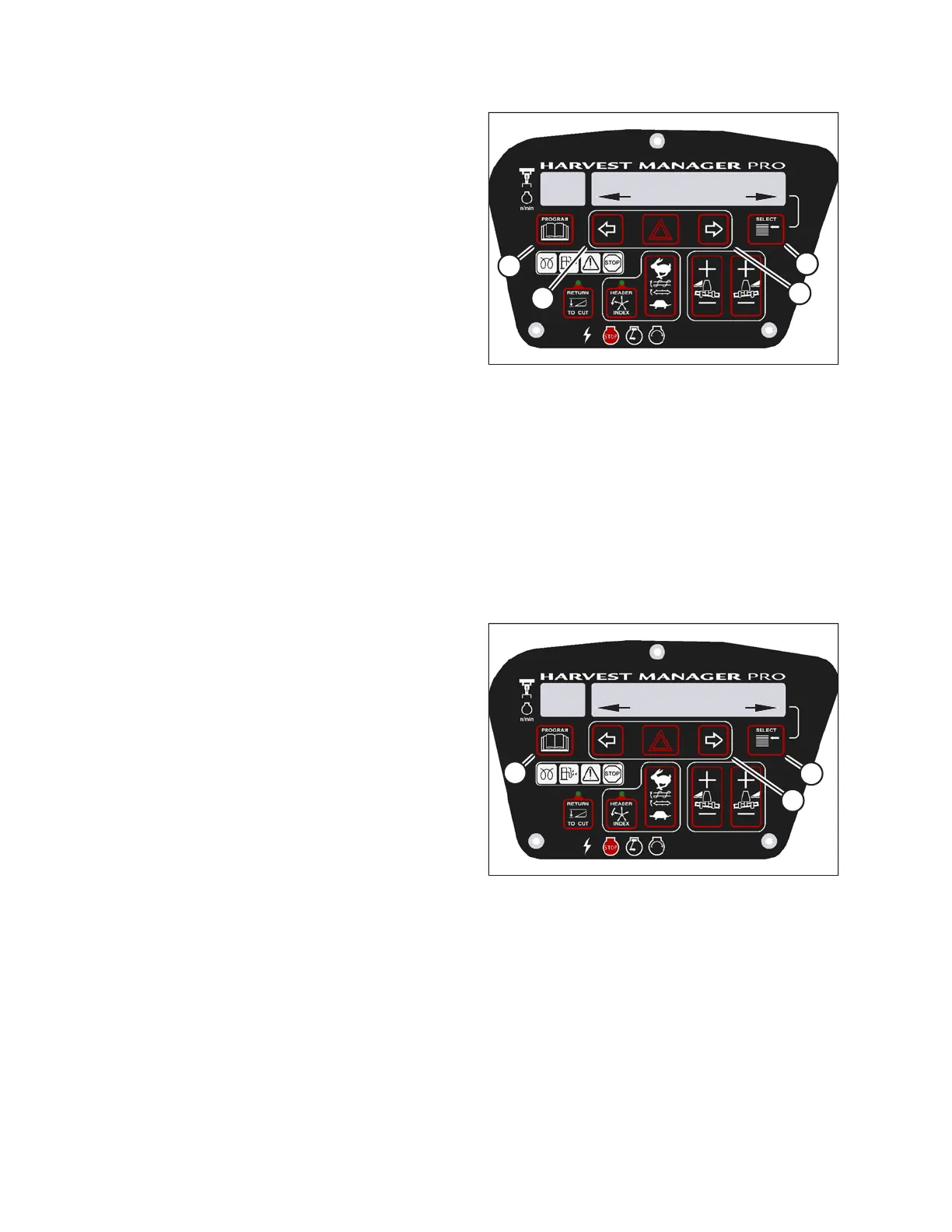

Figure 3.170: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press SELECT (C) until DIAGNOSTIC MODE? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
4. Press right arrow (B) to select YES. Press SELECT (C).
• VIEW ERROR CODES? is displayed on the
upper line.
OPERATOR’S STATION
