MacDon M205 - Activating the Hydraulic Purge Using the Cab Display Module (CDM)

214603 154 Revision A
Activating the Hydraulic Purge Using the Cab Display Module (CDM)
The hydraulic purge removes air from the hydraulic pump system after it has been repaired or changed.
NOTE:
Engine MUST be running to perform this procedure.
1007188
C###
X###
WINDROWER SETUP?
NO/YES
A
B

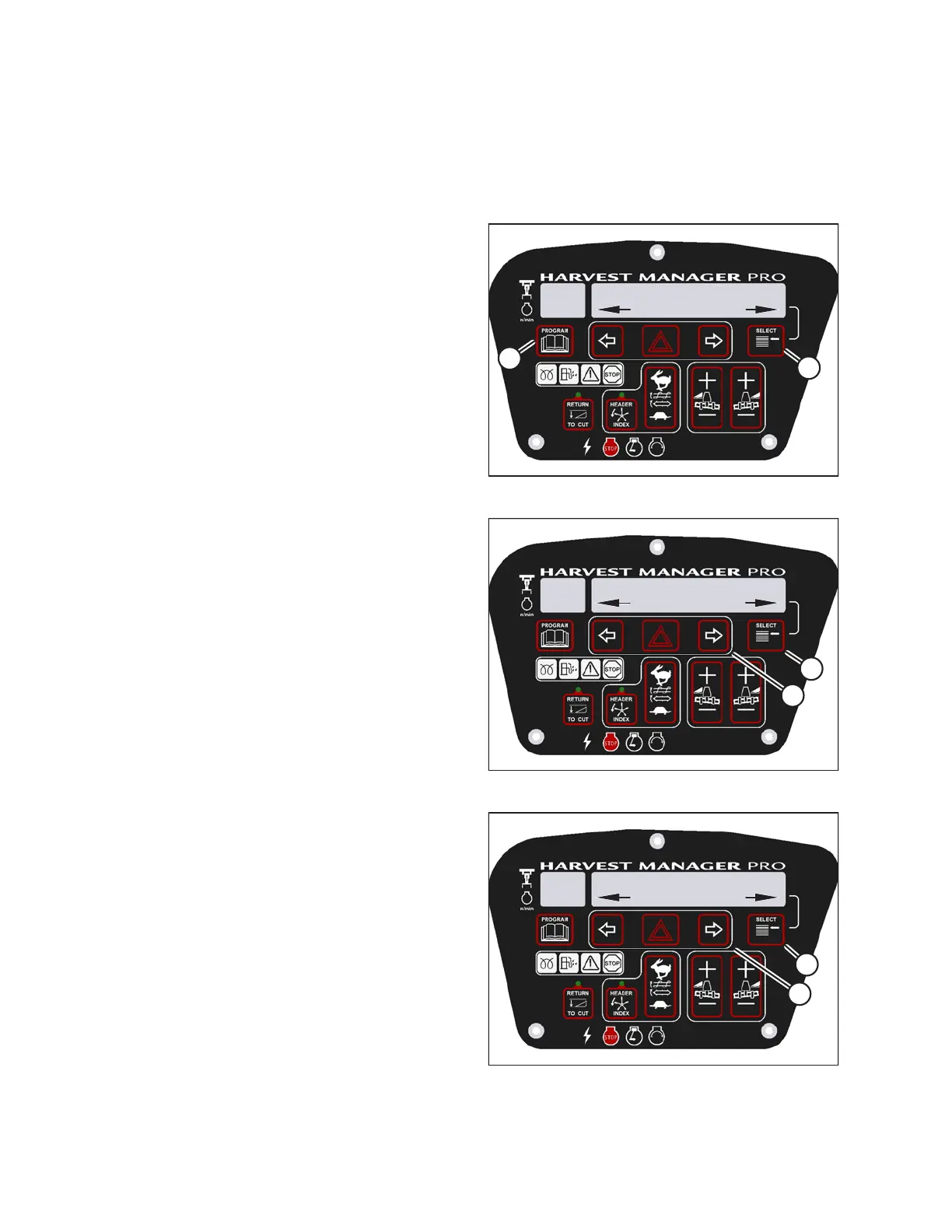

Figure 3.216: M205 CDM Programming Buttons
1. Start the engine.
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
1010019
DIAGNOSTIC MODE?
NO/YES
C###
X###
A
B
Figure 3.217: M205 Diagnostic Functions
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.
4. Press right arrow (A) to select YES. Press SELECT (B).
1010024
ACTIVATE FUNCTIONS?
NO/YES
C###
X###
B
A
Figure 3.218: M205 Functions
5. Press SELECT (B) until ACTIVATE FUNCTIONS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right arrow (A) to select YES. Press SELECT (B).
• ACTIVATE HEADER HT is displayed on the
upper line.
• DOWN/UP is displayed on the lower line.
OPERATOR’S STATION
