DIAGNOSTIC MODE?
NO/YES
C###
X###
A
B

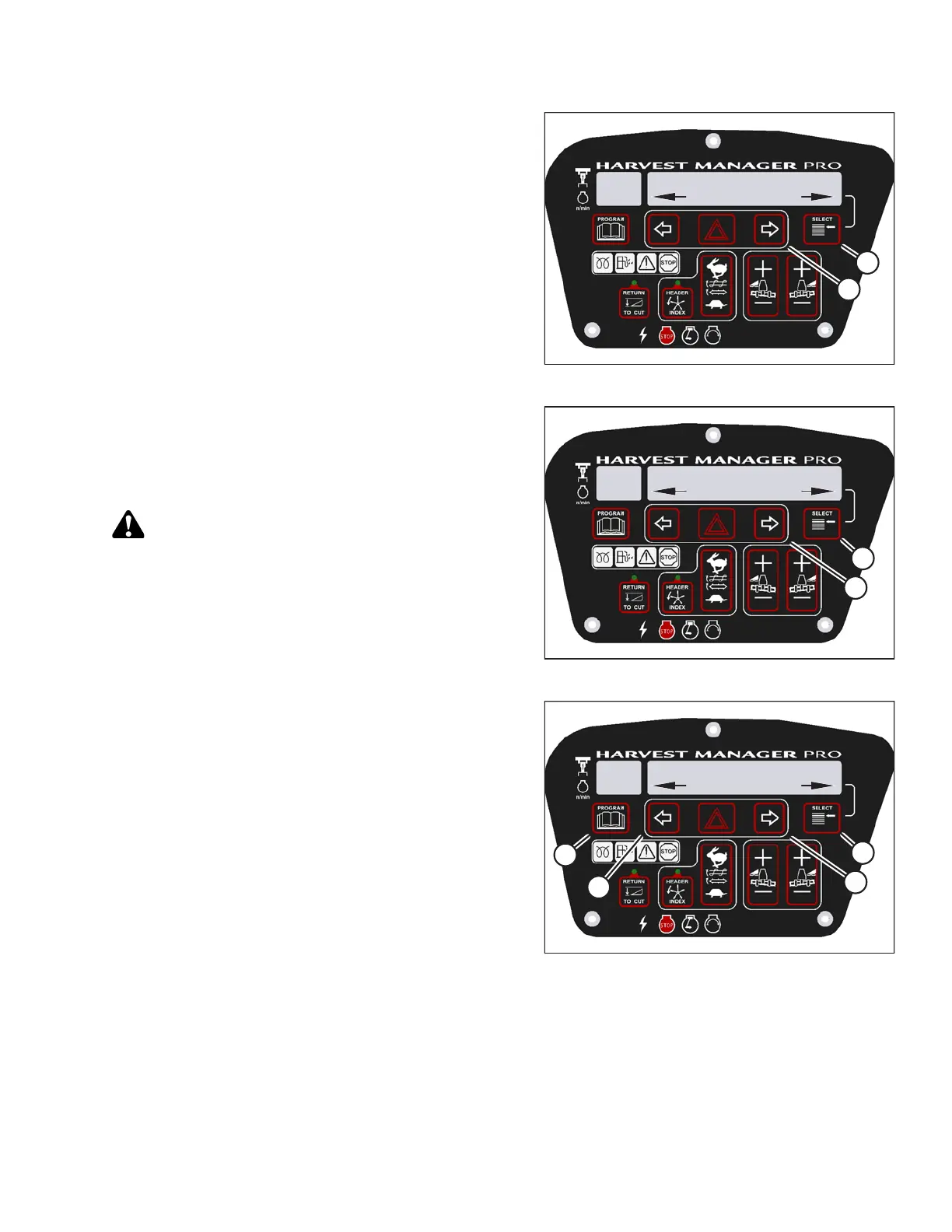

Figure 3.213: M205 Diagnostic Functions
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.
4. Press right arrow (A) to select YES. Press SELECT (B).
1010024
ACTIVATE FUNCTIONS?
NO/YES
C###
X###
B
A
Figure 3.214: M205 Functions
5. Press SELECT (B) until ACTIVATE FUNCTIONS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right arrow (A) to select YES. Press SELECT (B).
CAUTION
Check to be sure all bystanders have cleared the area.
1010029
ACTIVATE REEL F/A
FORE/AFT
C###
X###
D
C
B
A
Figure 3.215: M205 Reel Fore-Aft
7. Press SELECT (D) until ACTIVATE REEL F/A is
displayed on the upper line.
• FORE/AFT is displayed on the lower line.
8. Verify reel fore-aft is functioning properly.
a. Press and hold left arrow (B) to move reel forward.
Press and hold right arrow (C) to move
reel backward.
b. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next ACTIVATE
FUNCTION.
