214603 345 Revision A
5.8.8 Exhaust System
CAUTION
Engine exhaust stack may be hot. To avoid burns, do NOT touch exhaust canister when engine is running.
Allow sufficient cooling time after shut-down.
The exhaust system requires no regular maintenance, but it should be inspected periodically as follows:

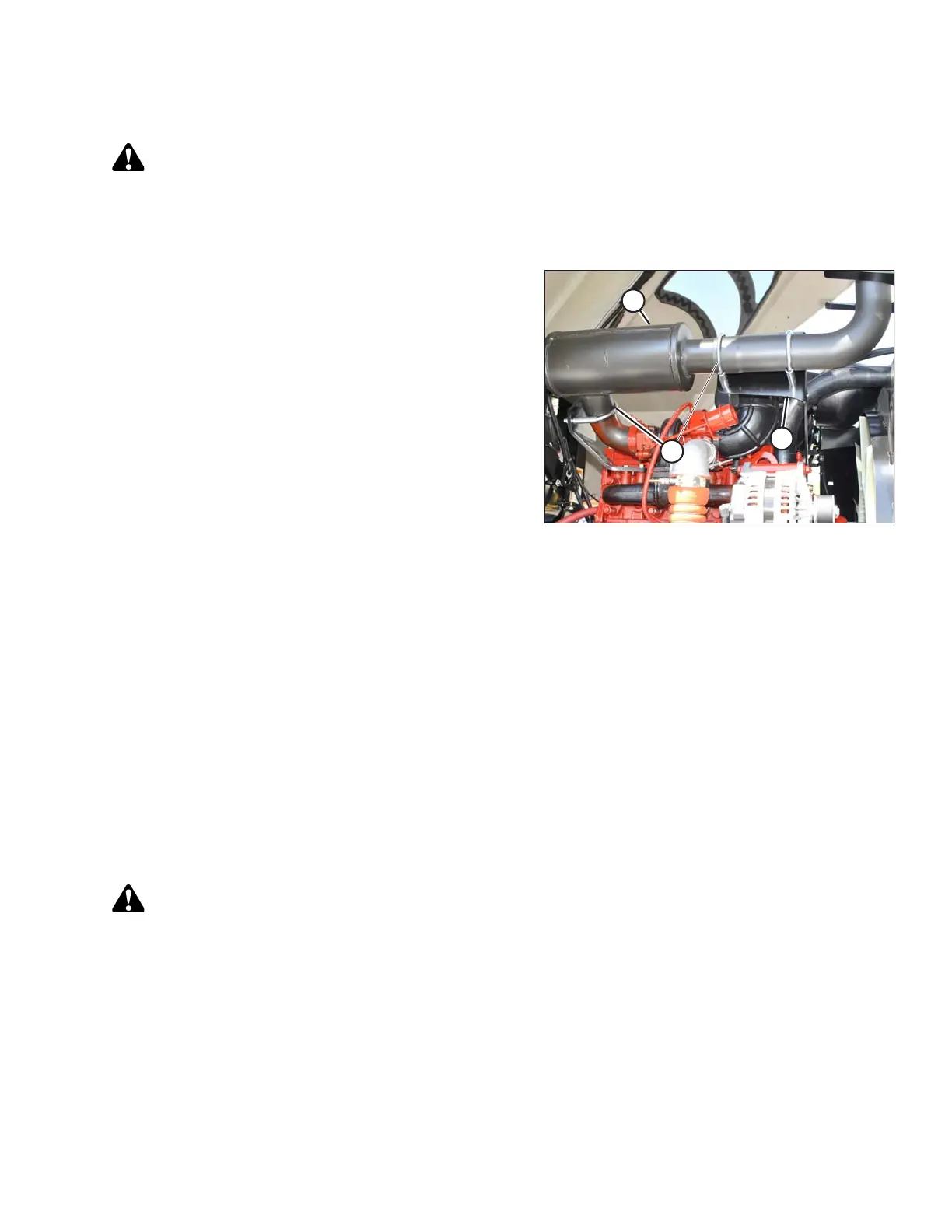

Figure 5.107: Exhaust System
1. Open the hood to its highest position. For instructions,
refer to 5.2.3 Opening Hood (Highest Position), page
286.
2. Inspect the area around clamps (A) for breakage,
cracks, and rust-through. In addition to excess noise, a
leaky exhaust system may allow exhaust gases to
escape to the cab.
3. Check tubing for dents or crushed areas. Dents or
crushed portions of any tubing create exhaust flow
restriction and increase back pressure significantly.
Even relatively small dents will cause decreased fuel
economy and increased turbo wear. If dents are
relatively large, increased bearing and cylinder wear will
occur due to increased exhaust temperature.
4. Make sure the exhaust system is secured to eliminate
vibration. The brackets (B) should fit securely to muffler
(C) and to the engine.
IMPORTANT:
Do NOT change muffler type, piping sizes, or exhaust
configuration. See your Dealer for proper
replacement parts.
5.8.9 Belts
Tensioning Alternator/Fan Belt
The alternator, water pump, and fan belt are automatically tightened. Manual adjustment is NOT required.
Replacing Fan Belt
To replace the fan belt, follow these steps:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine and remove the key.
2. Open the left platform. Refer to 5.3.1 Opening Platforms (Standard Position), page 288.
3. Open the hood. Refer to 5.2.1 Opening Hood (Lower Position), page 284.
MAINTENANCE AND SERVICING
