MacDon M205 - Windrower Dimensions

214603 34 Revision A
2.3 Windrower Dimensions

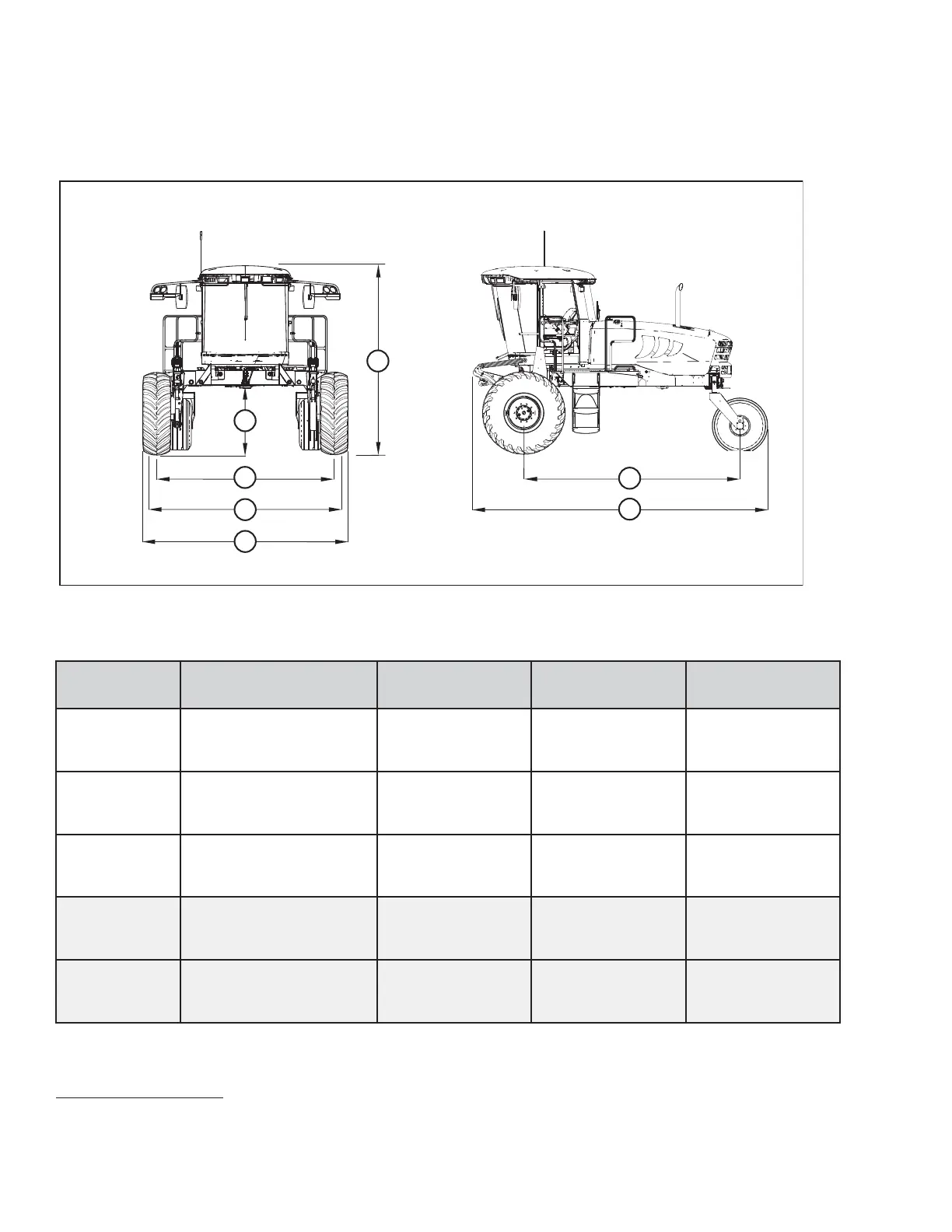

Figure 2.2: Windrower Dimensions – Cab-Forward
1008767
A
B
C
F
G
H
J
A - Drive Tire Tread B - Drive Tire Hubs C - Drive Tires F - 1160 mm (45-3/4 in.)
G - 3378 mm (133 in.) H - 4022 mm (158-5/16 in.) J - 5280 mm (207-7/8 in.)
Table 2.1 Drive Tires
Tire Size
Wheel Position
Tread (A)
mm (in.)
Hubs (B)
mm (in.)
Tires (C)
mm (in.)
18.4 x 26
bar and turf
narrow track
5
Inner/outer (shipping) 3144 (123-3/4) 3571 (140-9/16) 3644 (143-7/16)
18.4 x 26
bar and turf
narrow track
5
Outer/outer 3324 (130-7/8) 3751 (147-11/16) 3824 (150-5/8)
18.4 x 26
bar and turf
narrow track
5
Inner/inner 2964 (116-11/16) 3391 (133-1/2) 3464 (136-3/8)
18.4 x 26
bar and turf
wide track
5
Inner/outer (shipping) 3319 (130-11/16) 3571 (140-9/16) 3819 (150-3/8)
18.4 x 26
bar and turf
wide track
5
Outer/outer 3499 (137-3/4) 3751 (147-11/16)
3999 (157-7/16)
PRODUCT OVERVIEW
5. Only 18.4 x 26 tires are compatible with the 13-foot R80 and R85.
