214603 33 Revision A
Frame and Structure
Dimensions
Refer to 2.3 Windrower Dimensions, page 34
Frame to ground (crop clearance)
1160 mm (45.7 in.)
Weight
Base
4500 kg (9920 lb.)
Weight
Max GVW 9750 kg (2,1500 lb.)
Weight
Max CGVW 10480 kg (2,3100 lb.)
Header compatibility
A40D Auger
D50 Harvest Header
D60 Harvest Header/D65 Draper up to 12.2 m (40 ft.)
D1 SP Draper Header up to 12.2 m (40 ft.)
R80/R85 Rotary Disc
NOTE:
• Specifications and design are subject to change without notice or obligation to revise previously sold units.
• Weights do not include options.

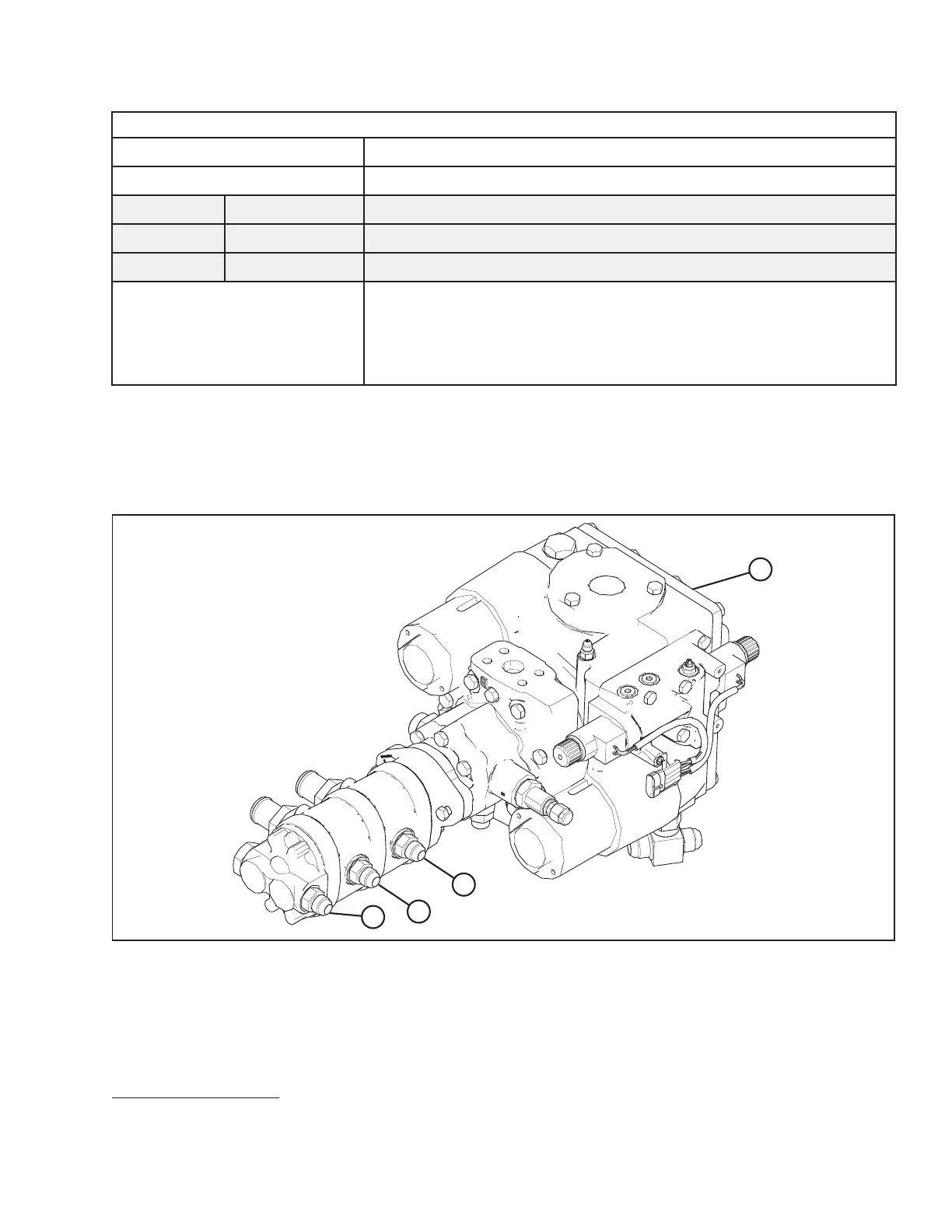

Figure 2.1: Hydraulic Pumps (Orientation)
A - Piston Pump: Disc Drive, Knife Drive, Reel (Draper) Drive
B - Gear Pump (Outboard): Lift, Tilt, and Reel Fore-Aft Circuits
C - Gear Pump (Middle)
4
: Draper Control D Series / D1 Series, Reel/Auger Control A Series
D - Gear Pump (Inboard)
4
: DWA (Double Windrow Attachment)
PRODUCT OVERVIEW
4. Pump (C) and (D) combine for supercharge.
