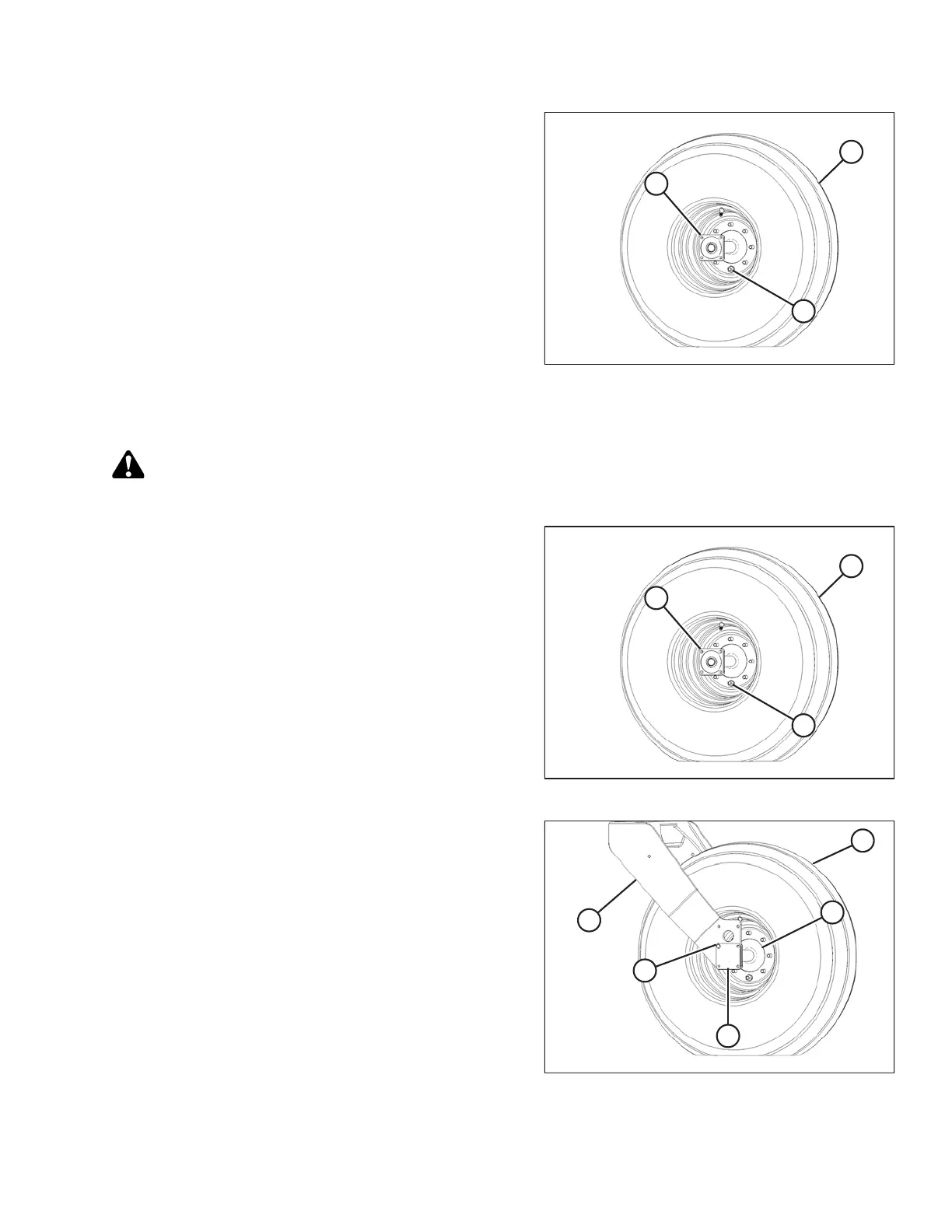

Figure 5.221: Forked Caster Wheel
3. Remove the eight wheel nuts (A) that secure axle (B) to
wheel (C).
4. Separate axle (B) and wheel (C).
Installing Forked Caster Wheel
CAUTION
Wheel assemblies are heavy. Support wheel assembly before removing axle bolts.
1006261
B
C
A
Figure 5.222: Forked Caster Wheel
1. Position wheel assembly (C) on axle assembly (B) and
install wheel nuts (A).
2. Torque wheel nuts (A). Refer to Tightening Caster
Wheel Nuts, page 407.
1006260
A
B
C
D
E
Figure 5.223: Forked Caster Wheel
3. Position wheel assembly (D) in forked caster (E).
4. Position cover plates (C) and install eight bolts (A) (four
on each side of caster) to secure axle (B) to caster (E).
Torque bolts to 97–107 Nm (75–79 lbf·ft).
5. Lower caster wheel. Refer to Lowering Caster Wheel
(Formed and Forked), page 410.
