214603 382 Revision A
Inspecting and Replacing 125A Main Fuses
The 125A main fuse holders are located on the frame under the right cab-forward side platform beside the battery.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Stop engine and remove key.
2. Move right (cab-forward) side platform rearward.

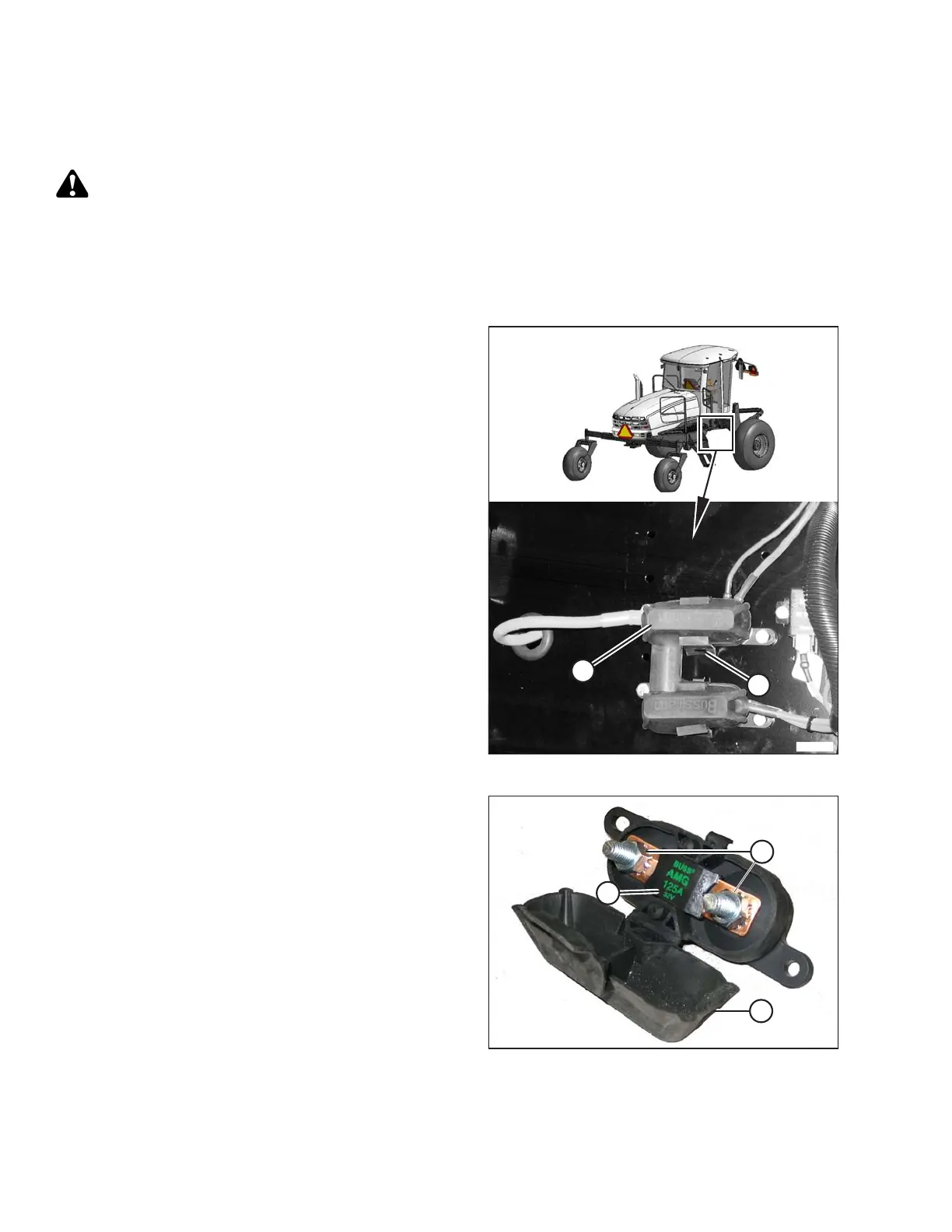

Figure 5.176: 125A Main Fuses
3. To check condition of fuse, pull tab (A) and open
cover (B).
Figure 5.177: 125A Main Fuse
4. Visually examine fuse (B) for indications of melting.
5. To remove fuse (B), remove two nuts (C) and pull fuse
free from holder (existing wiring may need to be pulled
off the stud first).
6. Install new fuse on studs and any existing wiring that
was removed.
7. Secure with nuts (C).
MAINTENANCE AND SERVICING
