MacDon M205 - Field Lights: Cab-Forward; Adjusting Field Lights

214603 362 Revision A
1000916
A
B
C
D
E

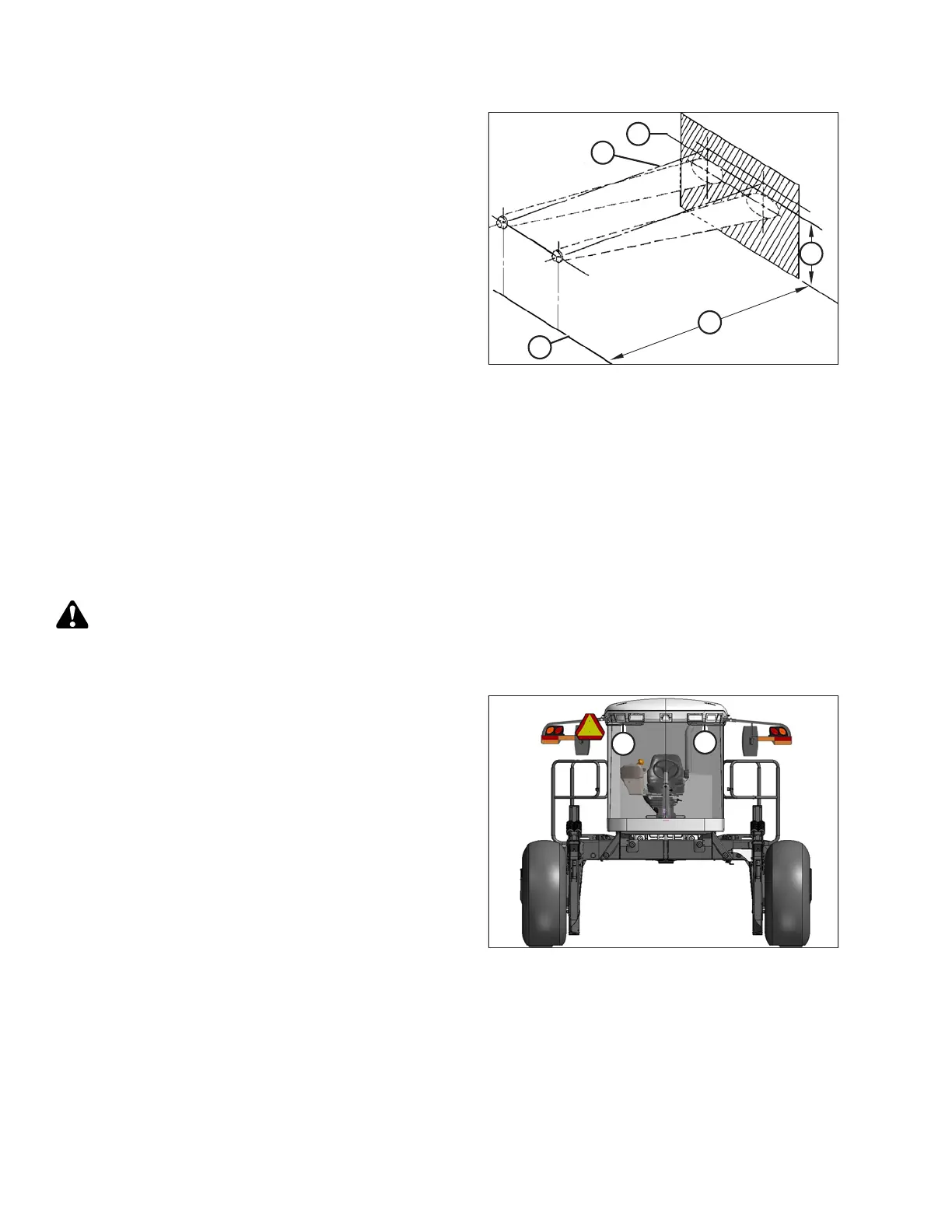

Figure 5.137: Headlight Beam Positioning
A - 1263 mm (49-3/4 in.) Maximum
B - 7.5 m (25 ft.)
C - Top Edge of Beam
D - Beam Centered on Direction of Travel Line
E - Ground
• Upper limit of the beam NOT higher than 1263 mm
(49-3/4 in.) above ground at a distance of 7.5 m (25 ft.)
from the headlight.
5.9.4 Field Lights: Cab-Forward
Adjusting Field Lights
The field lights are best adjusted with the machine in the field (or equivalent) to suit Operator preference.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1000891
A
A
Figure 5.138: Windrower Cab-Forward
1. Hold onto handholds (A) on the cab front corners, and
stand on header anti-slip strips.
MAINTENANCE AND SERVICING
