MacDon M205 - Page 381

214603 361 Revision A
1022787
A
B

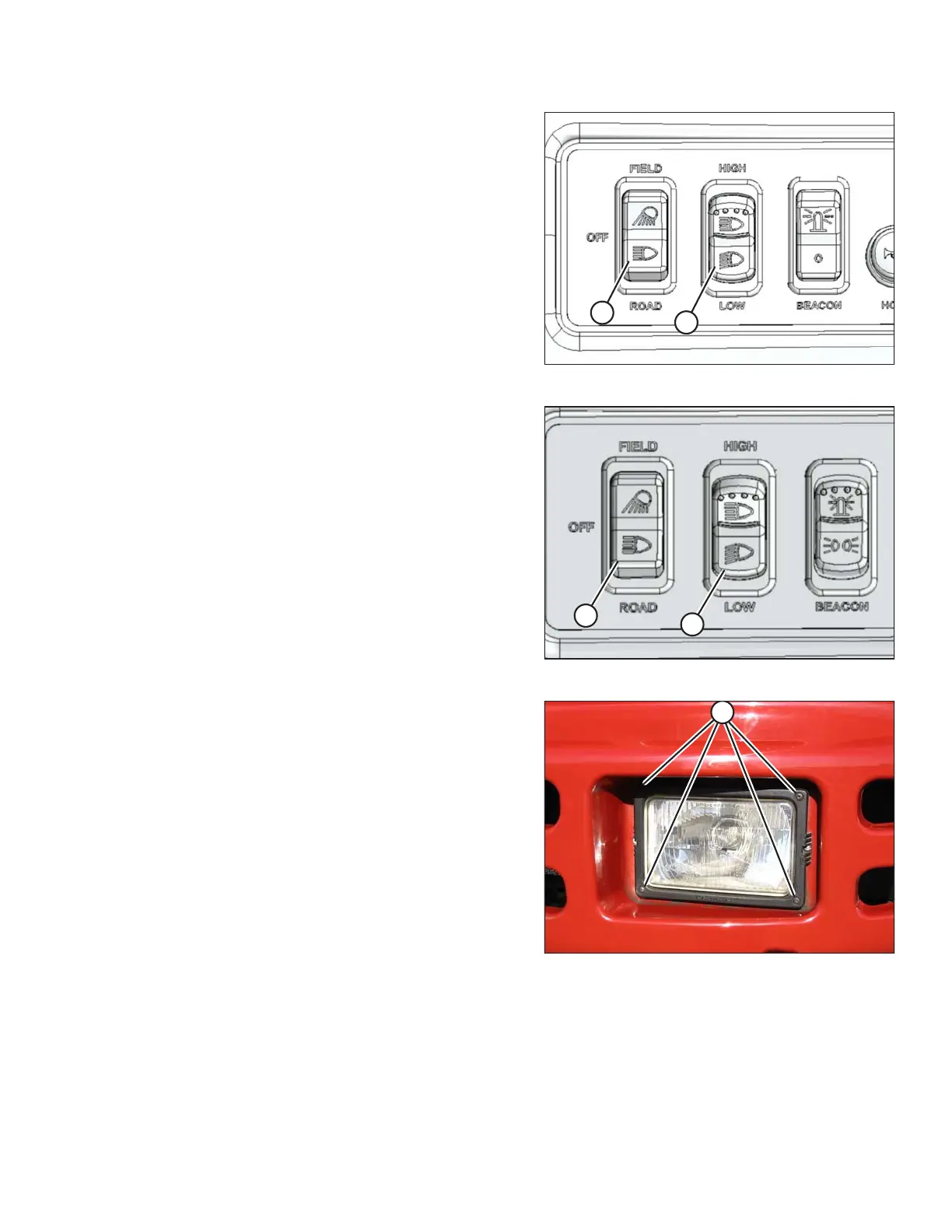

Figure 5.134: Road Light Switch (except Russia)
1022784
B
A
Figure 5.135: Road Light Switch (Russia Only)
3. Turn on ROAD lights (A) and switch to low beam (B).
1022703
A
Figure 5.136: Headlights
4. Align the headlights to the following specifications by
turning adjusting screws (A).
• Adjustments are for low beam.
• Light beams laterally centered on the direction of
travel line from the headlights (that is, NOT skewed
left or right).
MAINTENANCE AND SERVICING
