MacDon M205 - Closing Platforms (Standard Position)

214603 289 Revision A
1000412
A
B

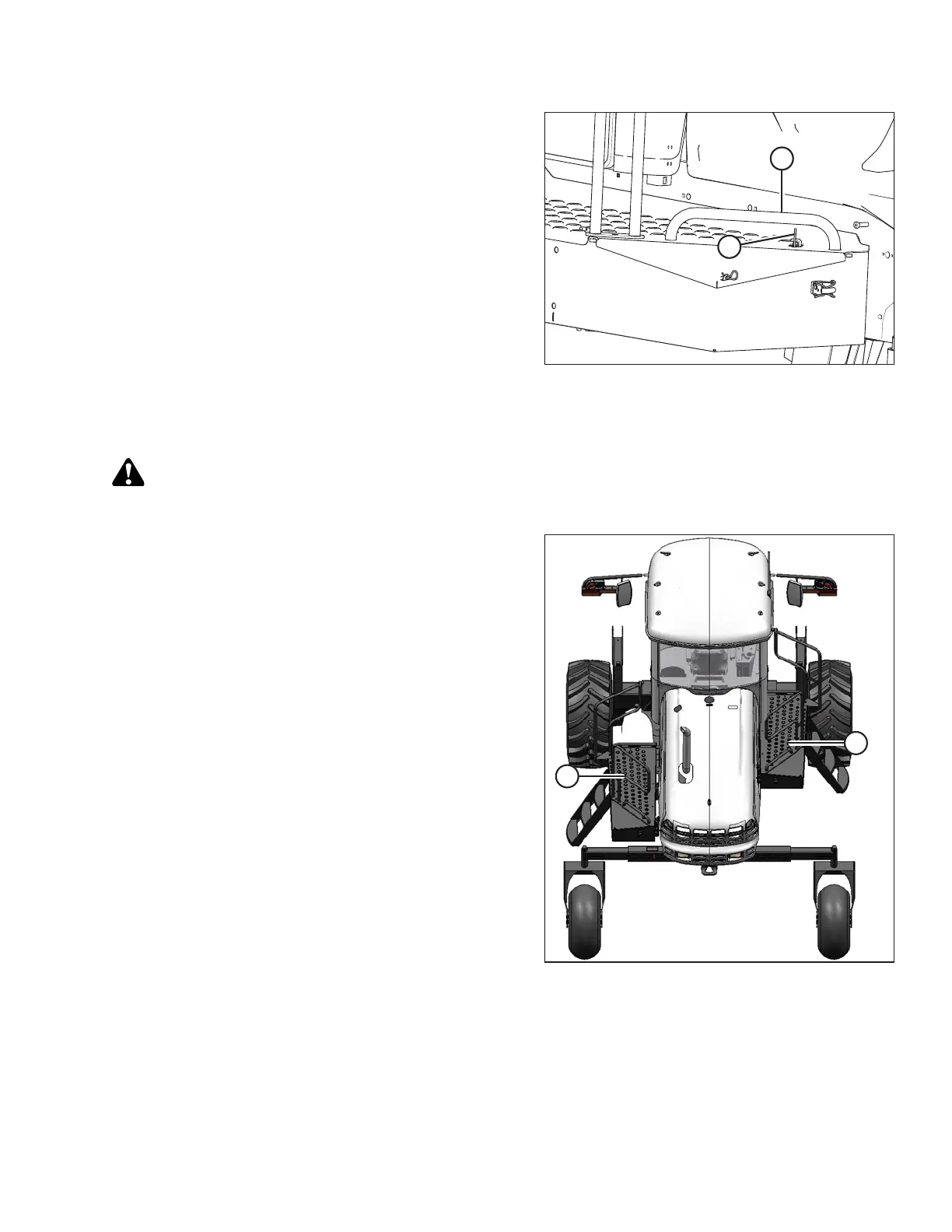

Figure 5.6: Platform Latch
1. Push latch (A) and pull platform (B) toward walking
beam until it stops and latch engages in open position.
NOTE:
Ensure the platform is latched before using.
5.3.2 Closing Platforms (Standard Position)
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
1006274
A
B
Figure 5.7: Platforms
This procedure describes how to close the cab-forward left
platform (A). The same procedure is used for the right
platform (B).
MAINTENANCE AND SERVICING
