3.7.2 Road Light: Engine-Forward
1010282
A

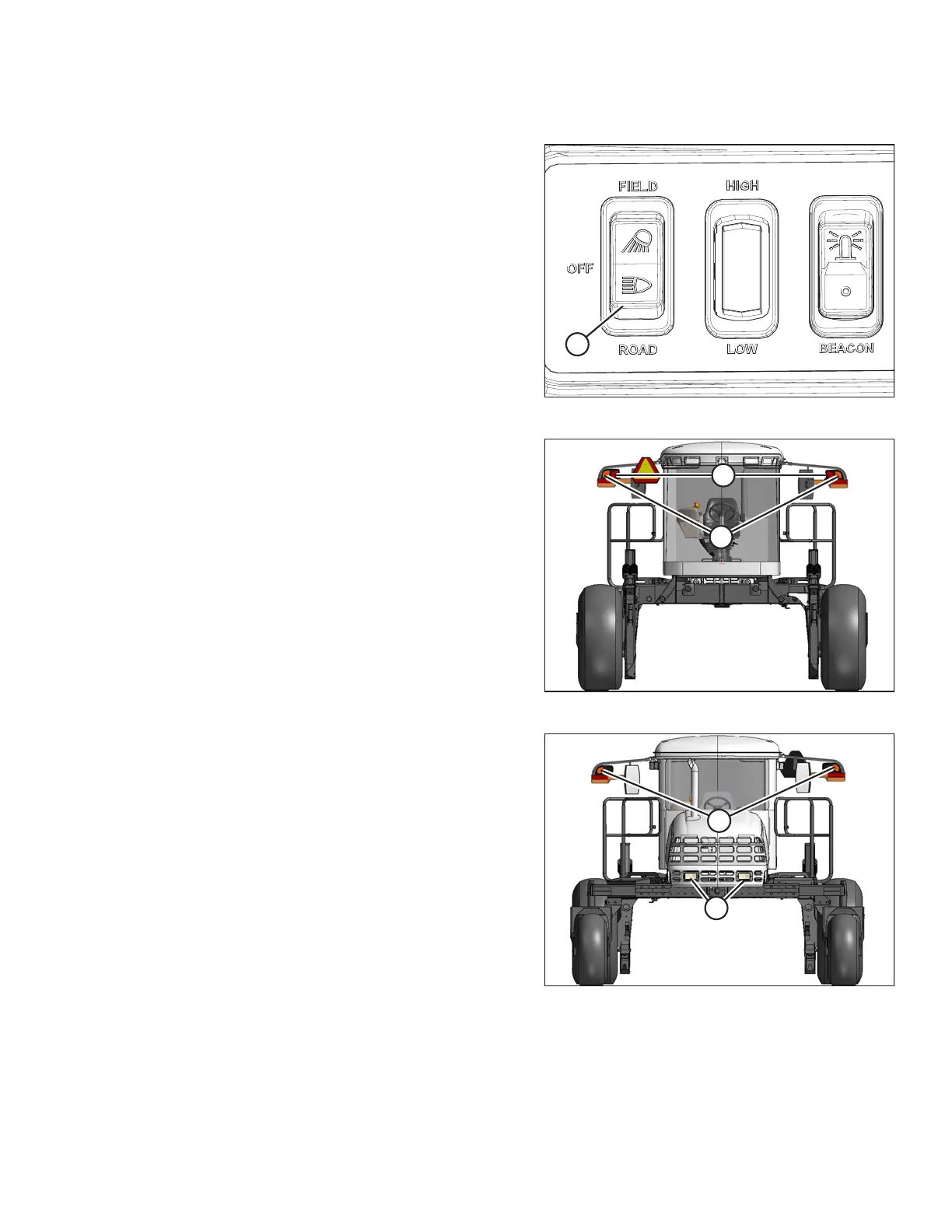

Figure 3.21: Road Light Switch
The following lights are ON when the light switch (A) is in
ROAD position with the windrower in engine-forward mode:
1000588
A
B
Figure 3.22: Engine-Forward: Rear View
• Red taillights (A) on the mirror supports
• Amber turn signals and hazard lights (B) on mirror
supports rear view
1000589
A
B
Figure 3.23: Engine-Forward: Front View
• Amber turn signals and hazard lights (A) on mirror
supports front view
• Headlights (B) in hood with low/high switch
The two headlights in the hood are adjustable. Refer to
Aligning Headlights, page 360.
