MacDon M205 - Operator Console

214603 39 Revision A
3 Operator’s Station
The operator’s station is designed for operating the windrower in cab-forward mode (working mode) or in
engine-forward mode (transport mode). The operator’s station—which includes the seat, console, and steering
column—pivots 180° to provide access to controls and gauges regardless of the direction of travel.
3.1 Operator Console
1000570
A
B
C
D
C
E

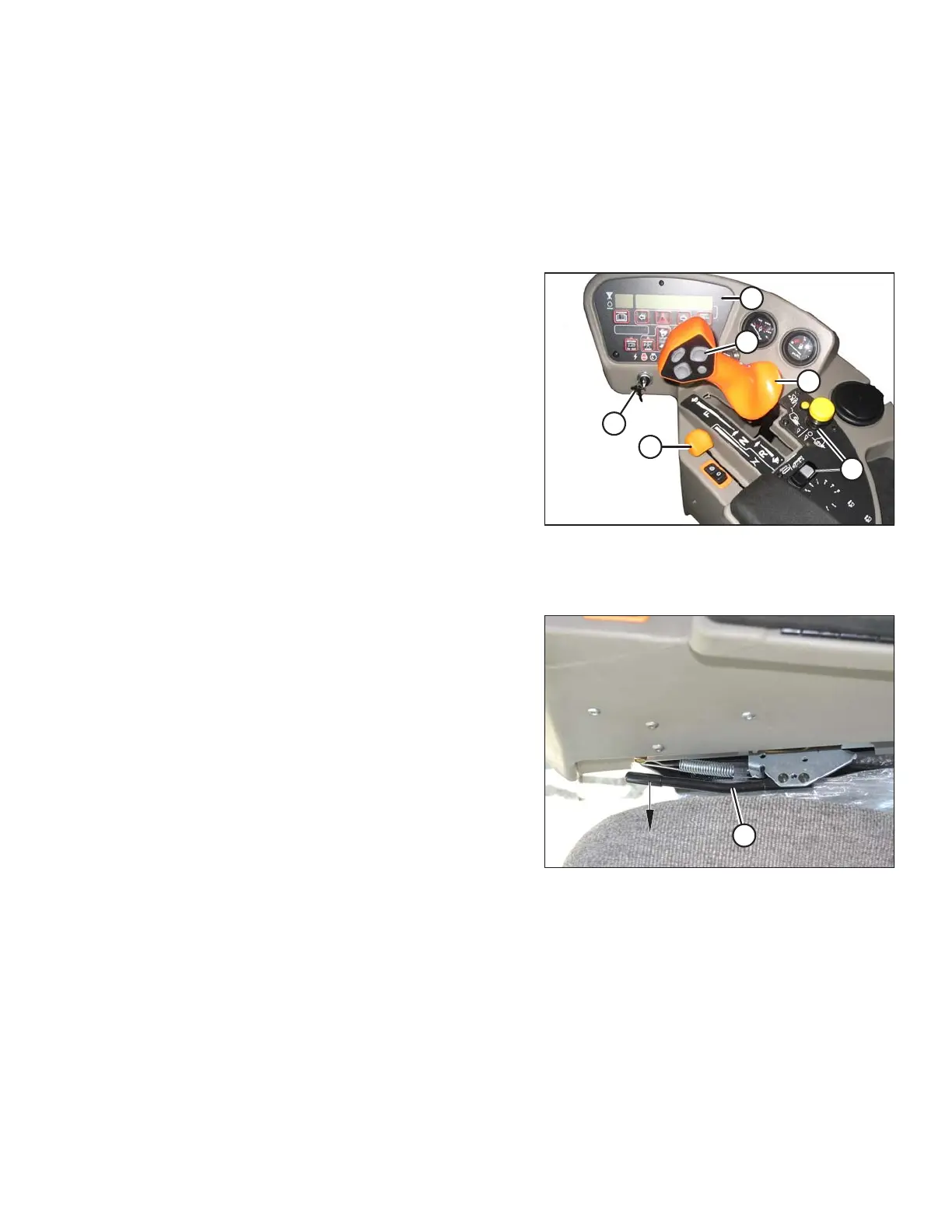

Figure 3.1: Operator Console
A - Ignition B - Cab Display Module (CDM)
C - Header Controls D - Ground Speed Lever (GSL)
E - Throttle
The console contains controls to operate the windrower, as
well as amenities for the Operator. The console position is
adjustable to suit each Operator.
1000572
A
Figure 3.2: Console Fore-Aft
1. Adjusting fore-aft and height:
a. Pull lever (A) and slide console fore or aft to the
desired position.
b. Release lever to lock console.
