214603 114 Revision A
1010005
NO/YES
SET CONTROL LOCKS?
C###
X###
B
A

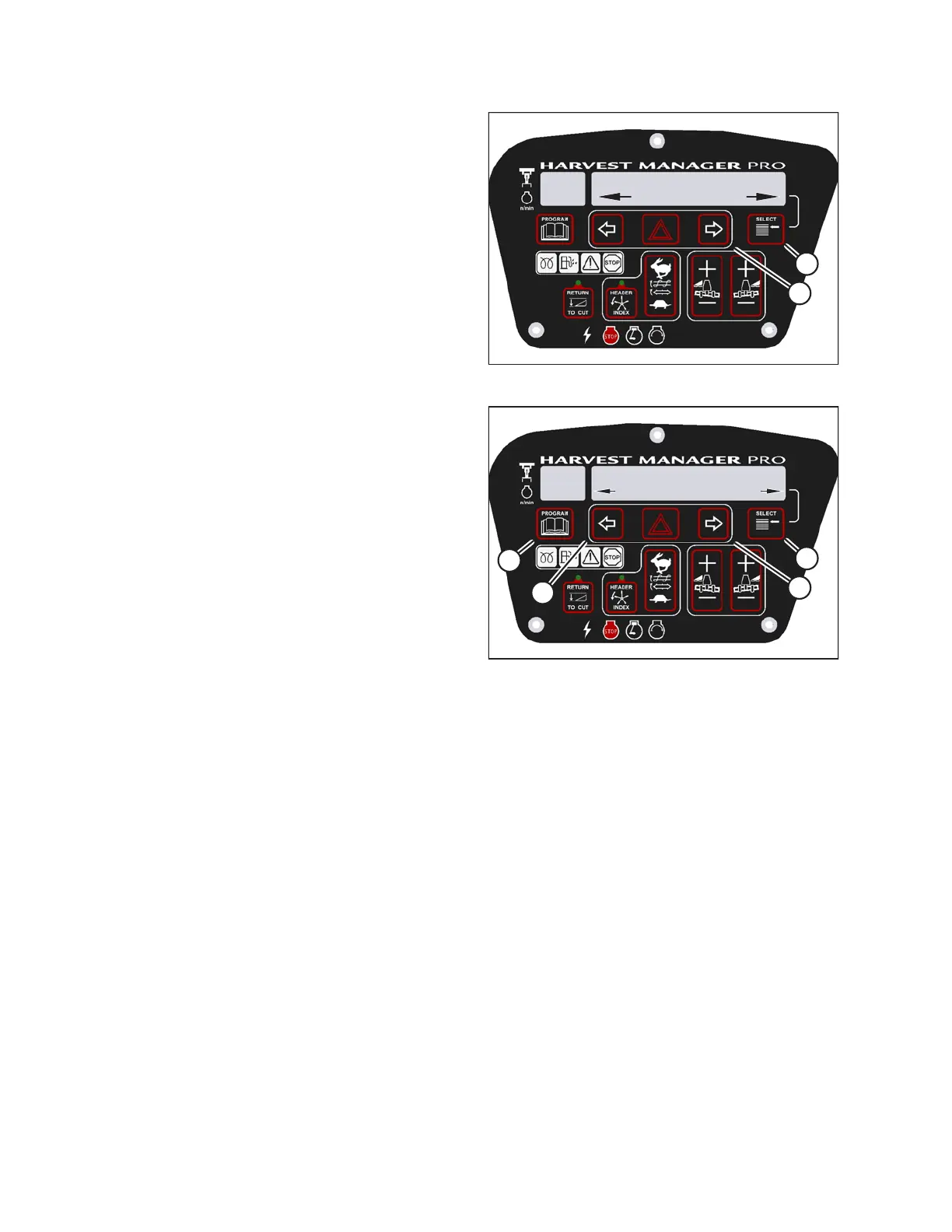

Figure 3.119: M205 Control Locks
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right arrow (A) to select YES. Press SELECT (B).
1010010
AUGER SPEED
ENABLED/LOCKED
C###
X###
D
C
B
A
Figure 3.120: M205 Auger Control Lock
6. Press SELECT (D) until AUGER SPEED is displayed
on the upper line.
• ENABLED/LOCKED is displayed on the lower line.
7. Press left arrow (B) to enable AUGER SPEED control
switch.
Press right arrow (C) to lock AUGER SPEED control
switch.
8. Press PROGRAM (A) to exit programming mode, or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
Activating Knife Speed Control Lockout
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and Detaching
Headers, page 217.
