WINDROWER SETUP?
NO/YES
A
B
C

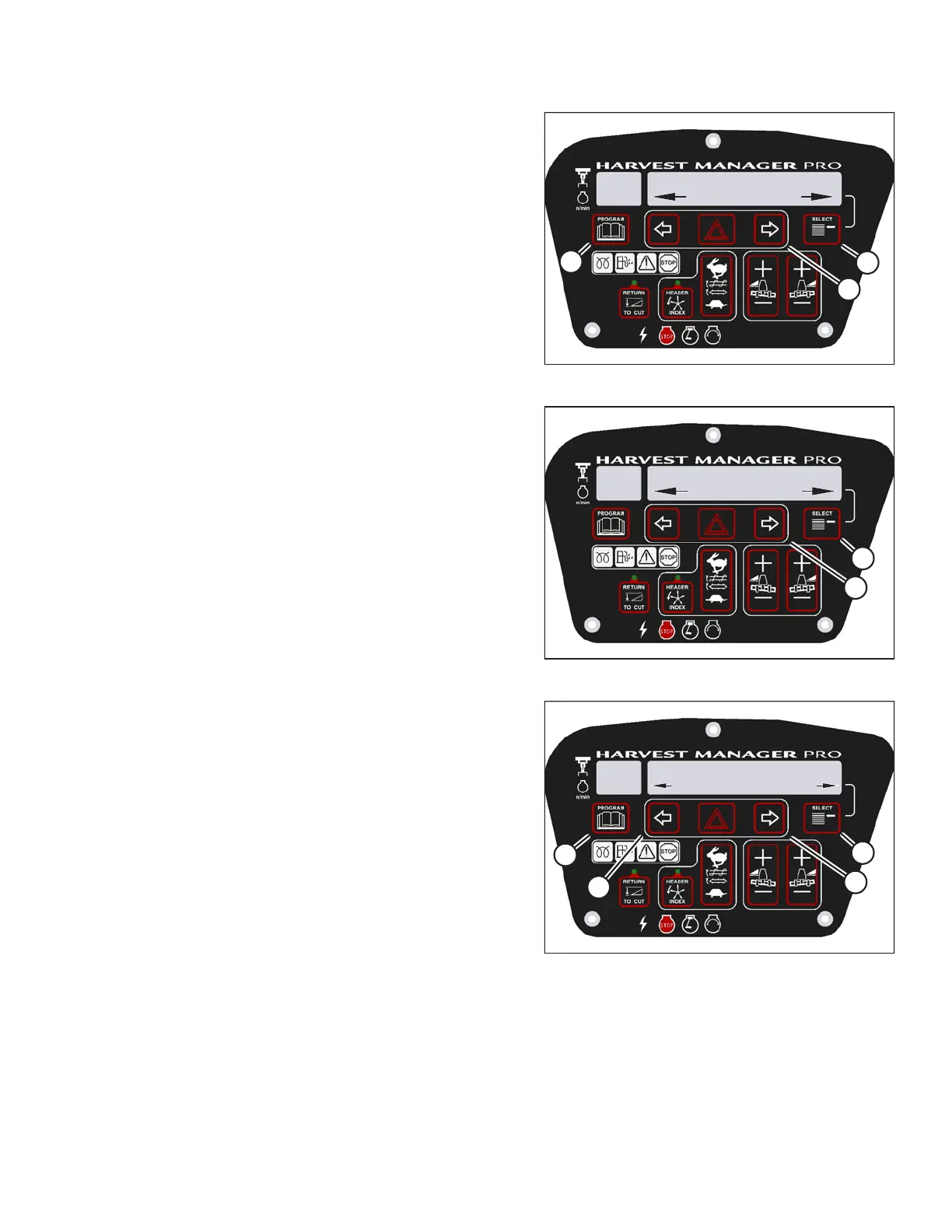

Figure 3.121: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
1010005
NO/YES
SET CONTROL LOCKS?
C###
X###
B
A
Figure 3.122: M205 Control Locks
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right arrow (A) to select YES. Press SELECT (B).
1010006
KNIFE SPEED
ENABLED/LOCKED
C###
X###
D
C
B
A
Figure 3.123: M205 Knife Speed Control Lock
6. Press SELECT (D) until KNIFE SPEED is displayed on
the upper line.
• ENABLED/LOCKED is displayed on the lower line.
7. Press left arrow (B) to enable KNIFE SPEED control
switch, or press right arrow (C) to lock KNIFE SPEED
control switch.
8. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
