214603 263 Revision A
4.6 Operating with a D Series or D1 SP Series Header

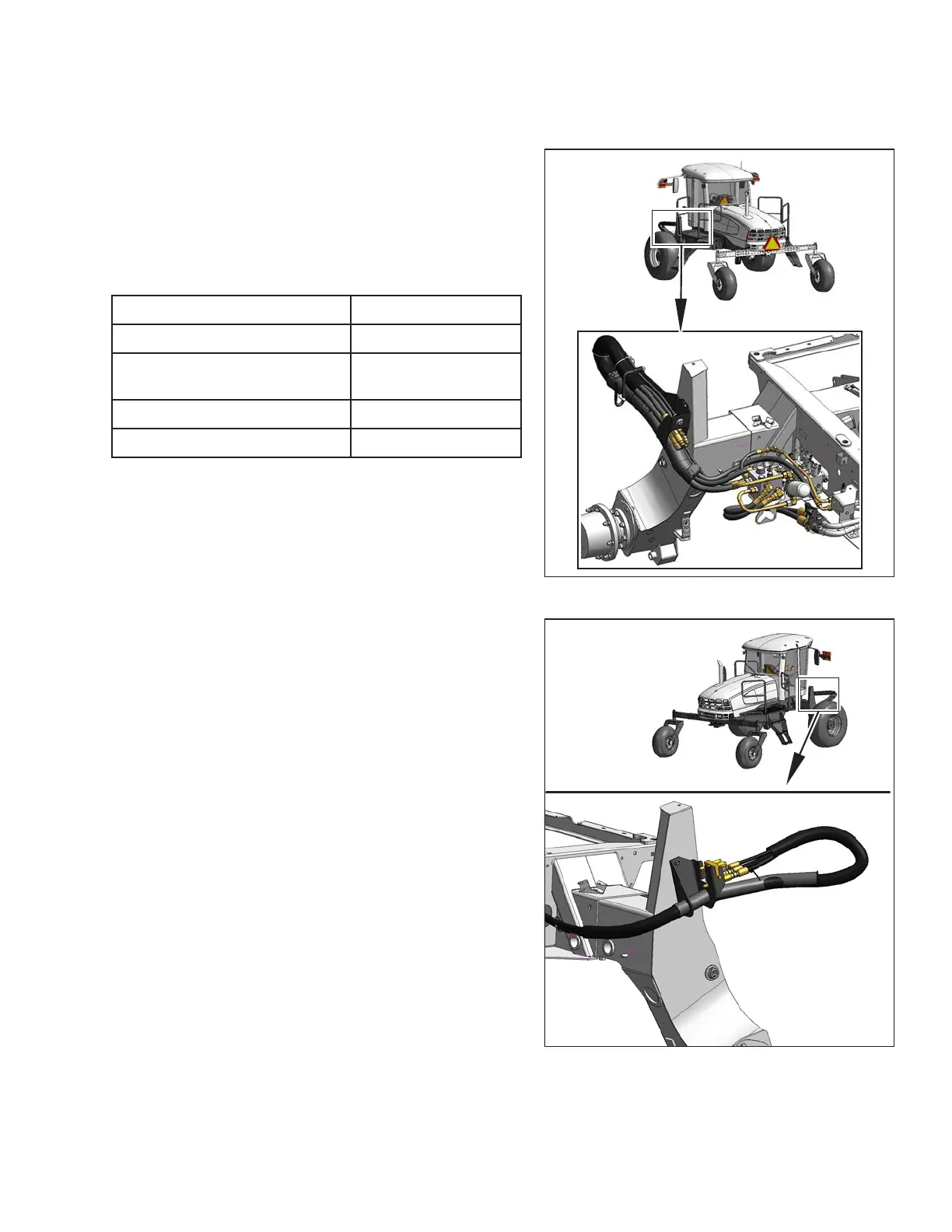

Figure 4.219: Draper Header Drive Hydraulics
To operate a D Series or D1 SP Series header, the M205
must be equipped with a draper driver basic kit and a
completion kit as shown.
If necessary, obtain the following kits from your MacDon
Dealer and install them in accordance with the instructions
supplied with the kits.
Kit Description Kit Number
Base draper/auger drive kit MD #B5491
Draper header reel drive
completion kit
MD #B5496
Hydraulic couplers kit
MD #B5497
Hydraulic union kit
MD #166844
Figure 4.220: Draper Header Reel Hydraulics
OPERATION
