214603 262 Revision A

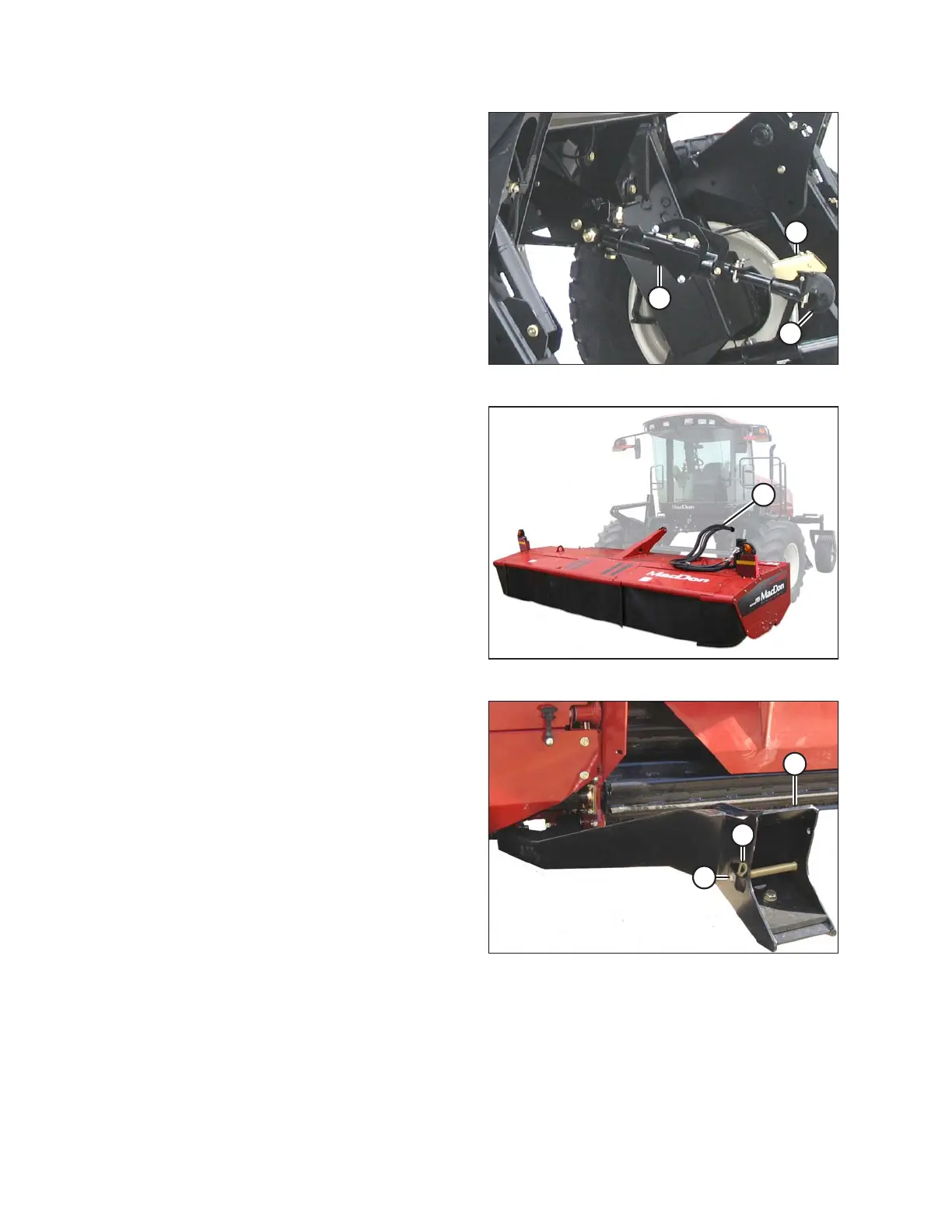

Figure 4.216: Hydraulic Center-Link
10. Stop the engine and remove the key from the ignition.
11. Lift hook release (C) and lift hook (B) off header pin.
NOTE:
If optional center-link lift cylinder is installed, lift
release (C) and then operate the link lift cylinder from
the cab to disengage the center-link from the header.
Figure 4.217: Header Drive Hydraulics
12. Disconnect header drive hydraulics and electrical
harness (A). For instructions, refer to the header
operator’s manual.
13. Back the windrower slowly away from the header.
Figure 4.218: Header Boot
14. Reinstall clevis pin (A) through boot (C) and secure with
hairpin (B). Repeat for opposite side.
OPERATION
