5.2.4 Closing Hood (Highest Position)
1000069
A
B
C
D

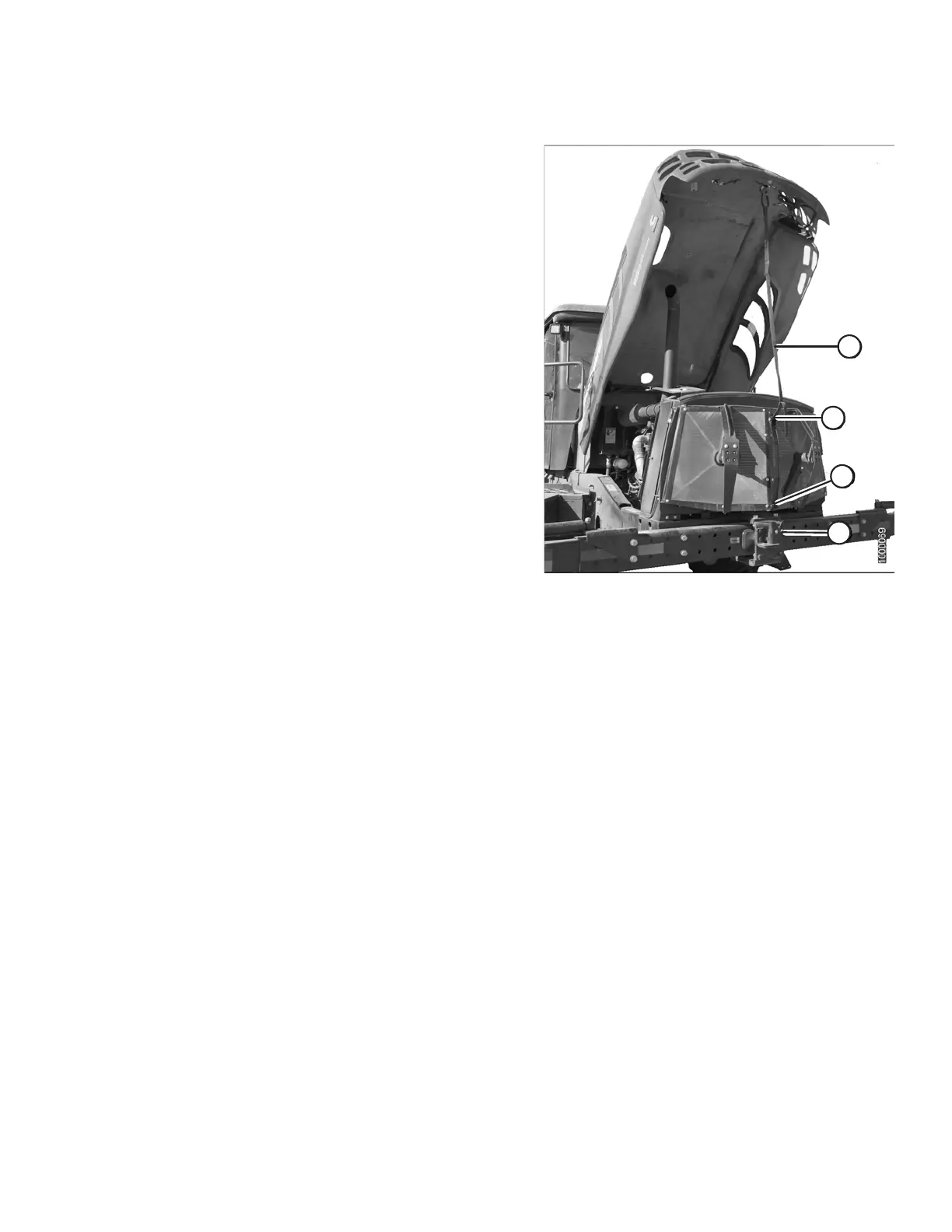

Figure 5.4: Hood Open (Highest Position)
1. Pull down on strap (B) and loop under lower hook (D).
2. Grasp strap (B) and loop under upper hook (C).
IMPORTANT:
Failure to hook strap may result in it becoming
entangled with the screen cleaners or the latch.
3. Pull down on strap (B), grasp the hood when within
reach, and lower until hood engages latch (A).
