MacDon M205 - Setting Draper Index

214603 269 Revision A
1. Engage header.
2. Set HEADER INDEX (B) switch to ON.
3. Press DISPLAY SELECTOR button (E) until display (A) shows ##.## DRAPER MIN.
The displayed value (##.##) = draper speed (mph or km/h
21
).
4. Use the FAST (C) and SLOW (D) buttons to set the desired minimum draper speed.
Setting Draper Index

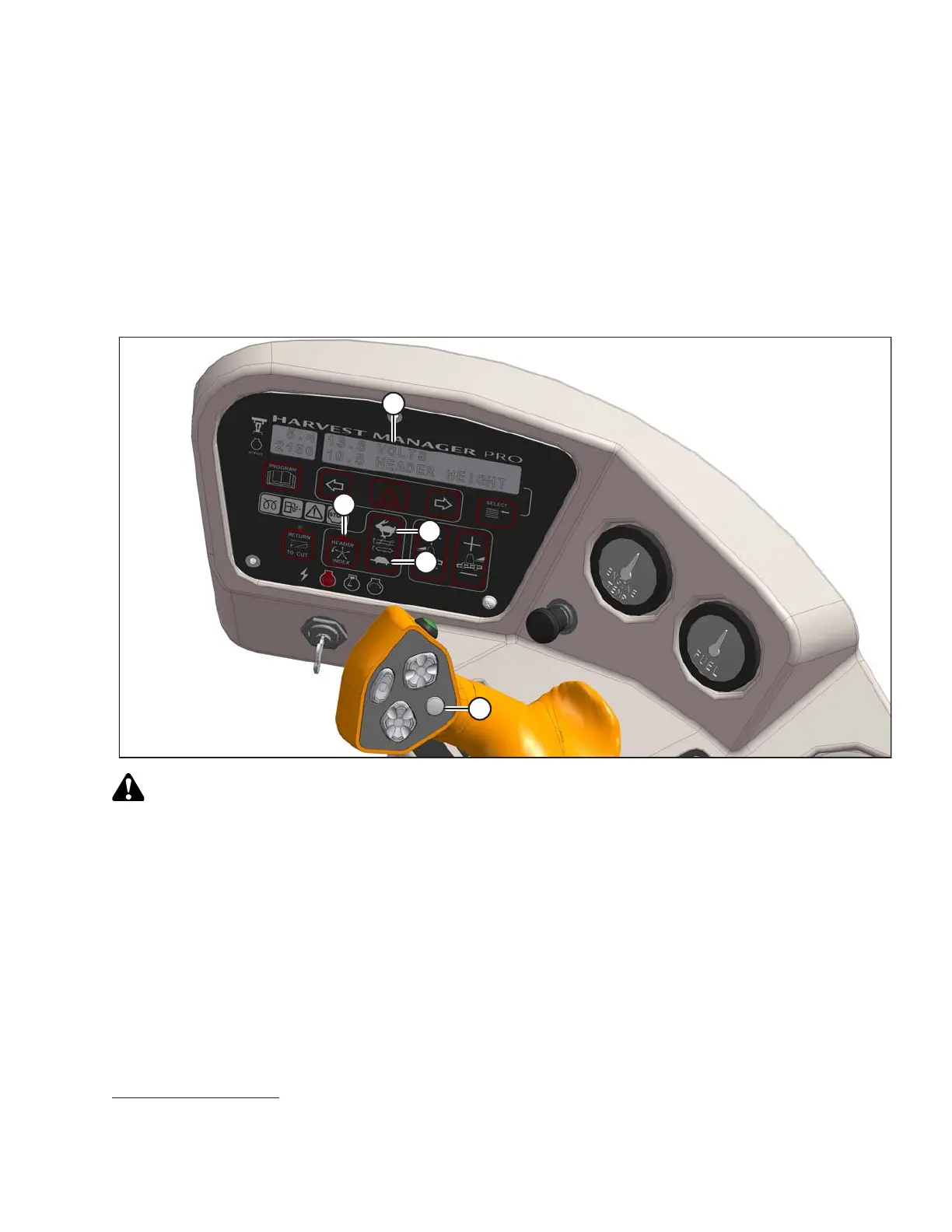

Figure 4.226: Operator Console
1000793
A
B
C
D
E
CAUTION
Check to be sure all bystanders have cleared the area.
Set draper index as follows:
IMPORTANT:
Draper Index can only be adjusted while operating at a ground speed faster than minimum draper speed plus
header index value.
1. Engage header.
2. Set HEADER INDEX switch (B) to ON.
OPERATION
21. Depending on cab display module (CDM) programming.
