MacDon M205 - Operating with an R Series Header

214603 281 Revision A
4.8 Operating with an R Series Header
The M205 is equipped with the hydraulics and connections to run R Series Rotary Disc headers.
1025045
A

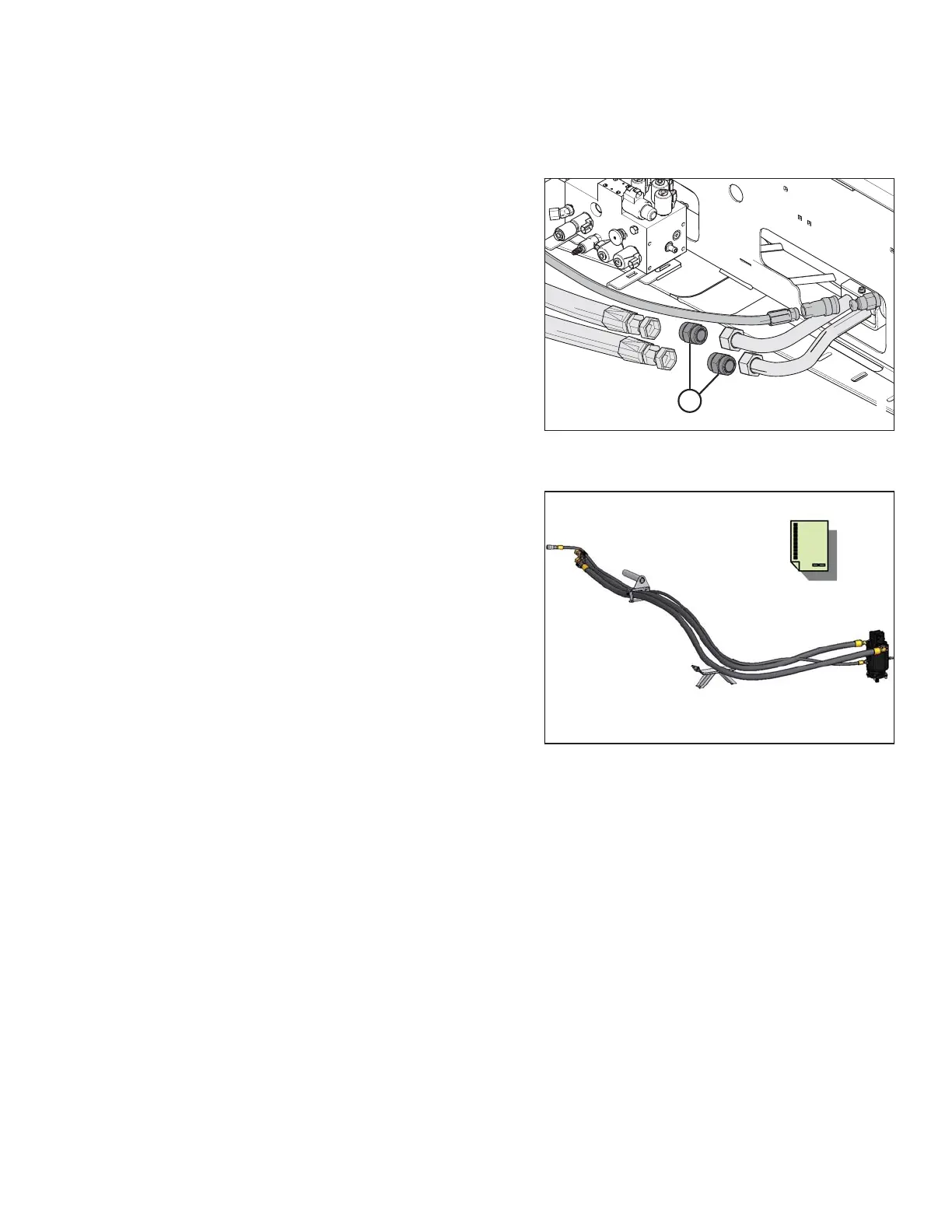

Figure 4.239: Union Fittings (MD #135708) – R85
4.9 M (16 Ft.)
R85 4.9 m (16 ft.) header
The R85 4.9 m (16 ft.) header is factory-equipped with the
hydraulic connections for attachment to an M205
windrower. The two union fittings (A) (MD #135708) shipped
with the header are required to hard plumb to the
windrower.
1005184
Figure 4.240: Kit MD #B5456
R85 4.0 m (13 ft.), R80 (4.0 and 4.9 m) 13 and 16 ft.
headers
The R85 4.0 m (13 ft.) header and the R80 4.0 and 4.9 m
(13 and 16 ft.) headers are shipped without the motor and
hoses installed. The installation of a separate motor and
hose bundle is necessary.
If required, obtain kit MD #B5456 from your MacDon Dealer,
and install it in accordance with the instructions supplied
with the kit.
NOTE:
Hydraulic Coupler kit (MD #B5497) is also available for quick
attachment and removal of multiple header types.
OPERATION
