MacDon M205 - Alignment

214603 223 Revision A
1000774
A
B

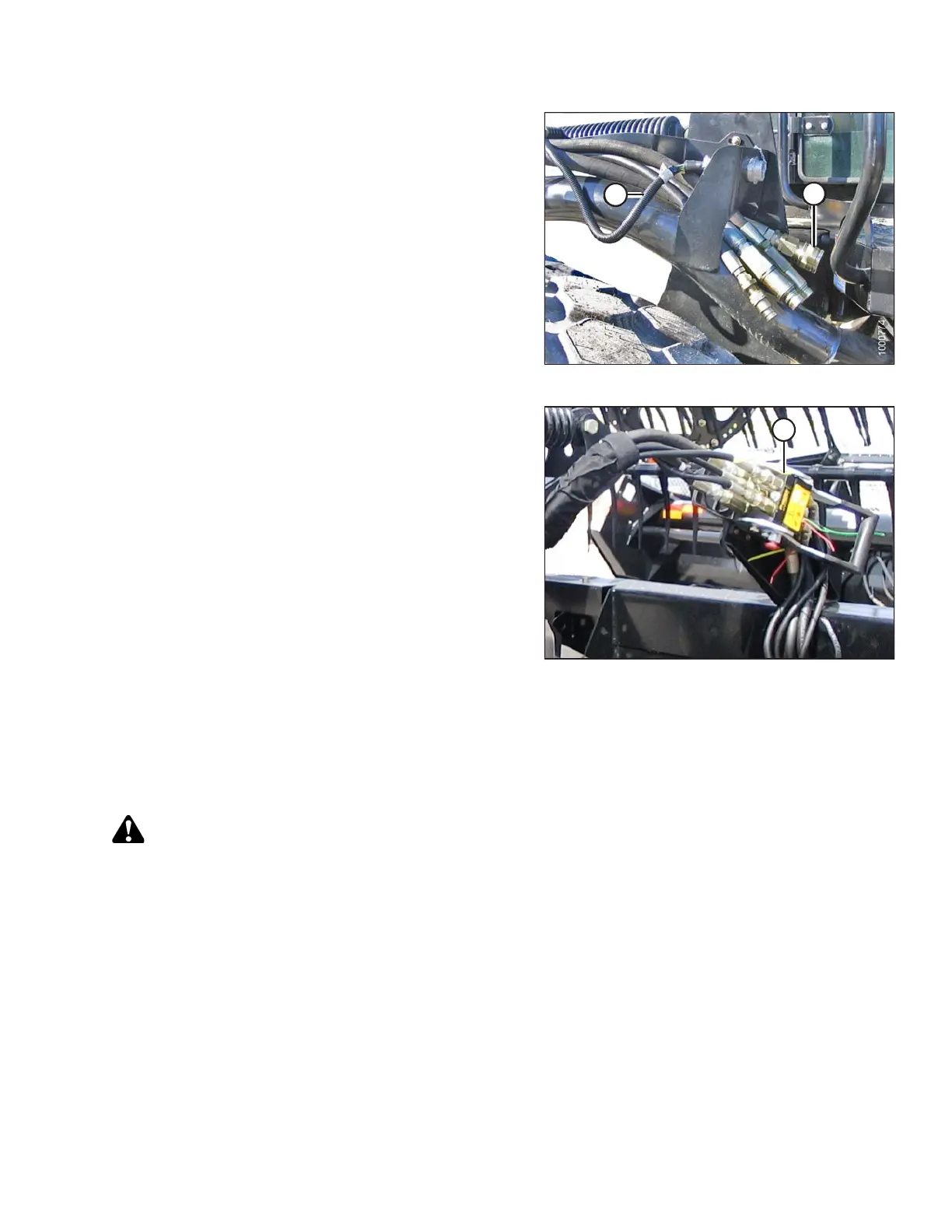

Figure 4.116: Header Drive Hoses and Harness
20. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the draper header
operator’s manual.
1000775
A
Figure 4.117: Reel Hydraulics
21. Connect reel hydraulics (A) at right cab-forward side of
windrower. Refer to the draper header operator’s
manual.
Attaching a D Series or D1 SP Series Header: Hydraulic Center-Link without Self-Alignment
NOTE:
Draper header boots must be installed onto the windrower lift linkage before starting this procedure. Refer to 4.5.1
Attaching Header Boots, page 217.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
OPERATION
