214603 224 Revision A

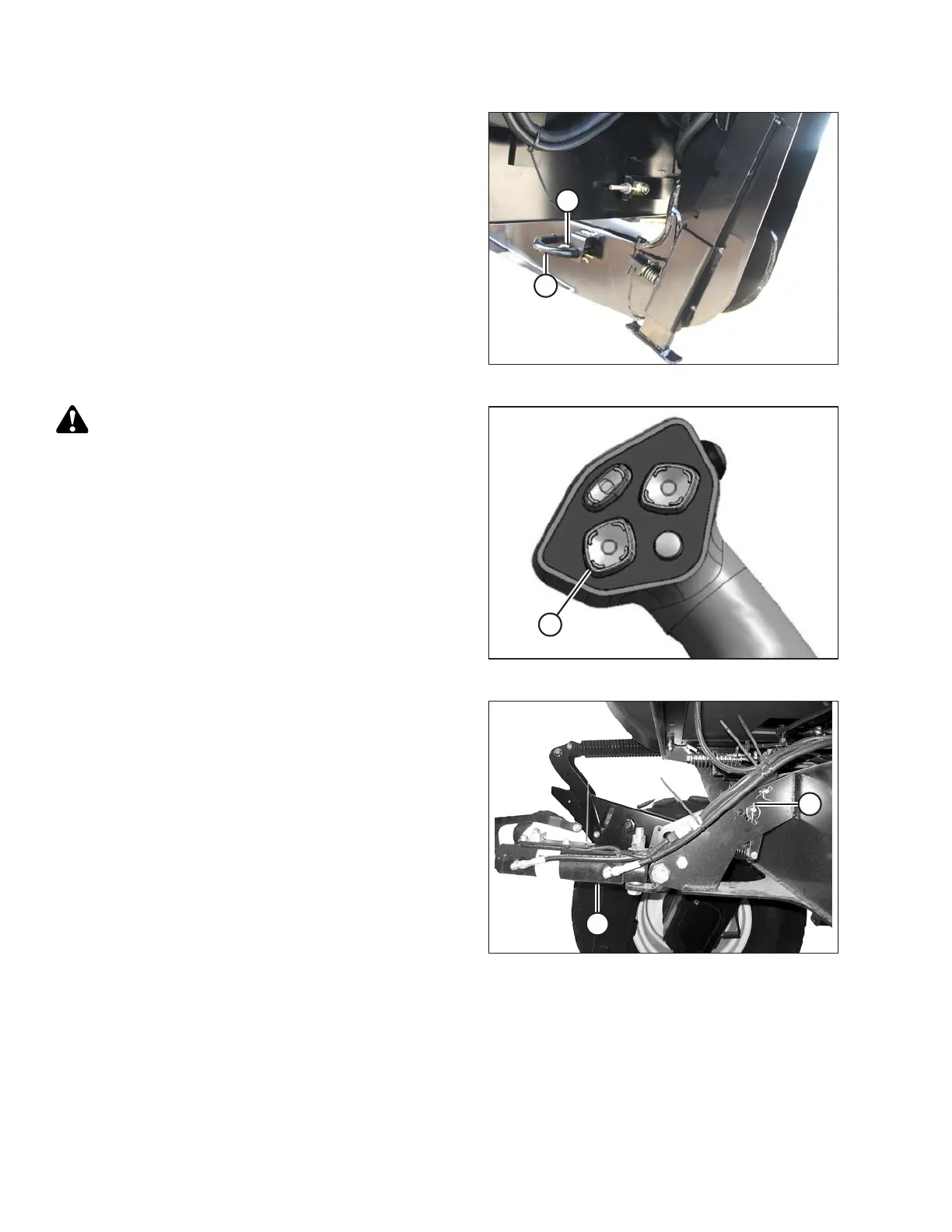

Figure 4.118: Header Leg
1. Remove hairpin (A) from pins (B), and remove pins
from both header legs.
Figure 4.119: Ground Speed Lever
CAUTION
Check to be sure all bystanders have cleared the area.
IMPORTANT:
Before starting engine, remove protective cover from
exhaust stack.
2. Start the engine and activate the HEADER DOWN
button (A) on the ground speed lever (GSL) to fully
retract header lift cylinders.
Figure 4.120: Hydraulic Center-Link without
Self-Alignment Kit
3. Remove pin (A) pin in frame linkage and raise center-
link (B) until hook is above the attachment pin on
header. Replace pin (A) to hold center-link in place.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
OPERATION
