214603 67 Revision A
3.16 Engine Controls and Gauges

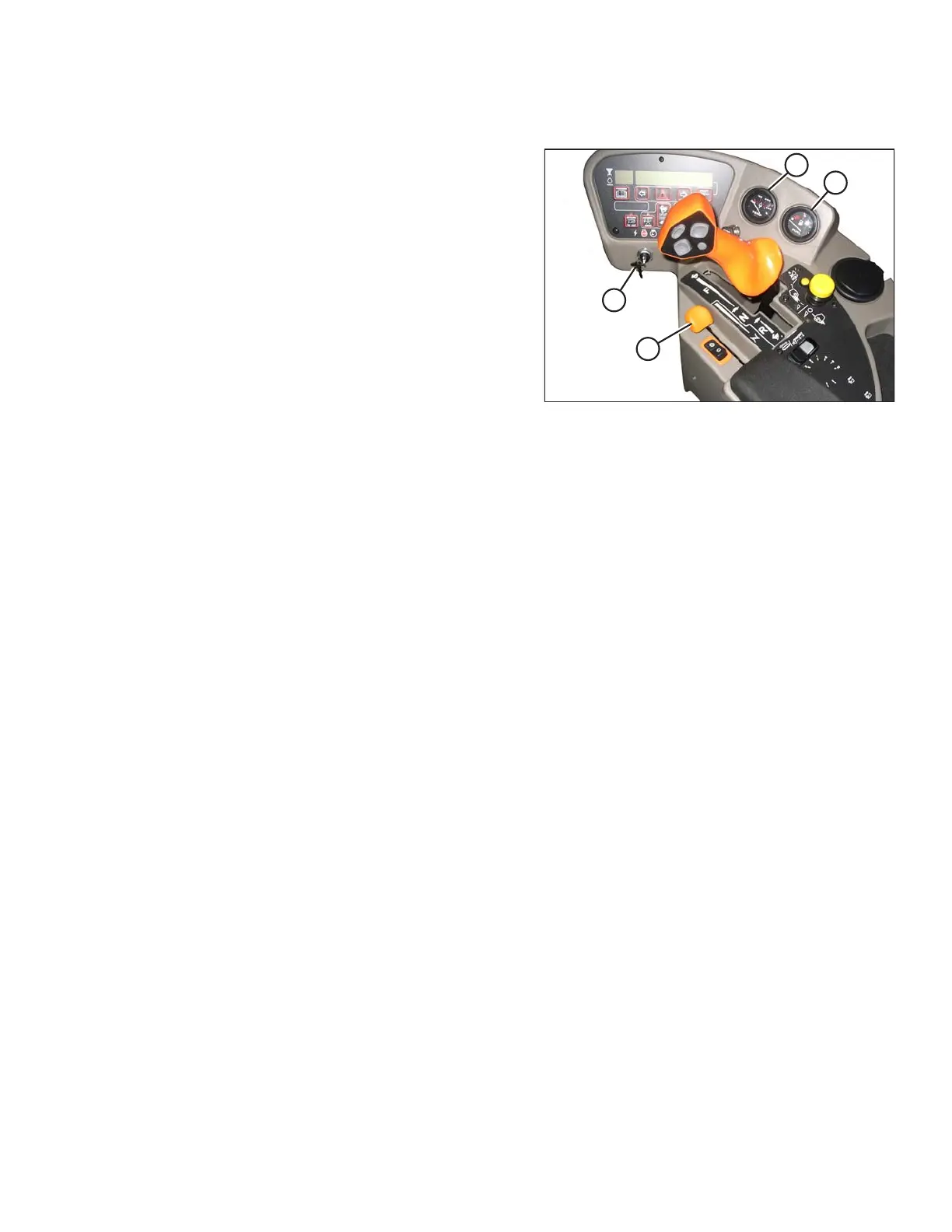

Figure 3.52: Engine Controls and Gauges
The following engine controls and gauges are conveniently
located on the operator’s console.
Ignition Switch (A)
• ACC (Accessory): Fully counterclockwise
• OFF: All electrical systems OFF
• RUN: Clockwise
• START: Fully clockwise to crank engine: Release and
switch returns to RUN
NOTE:
Remove key when windrower is not in use; the key also
locks doors.
Engine Coolant Temperature Gauge (B)
• Normal Running: 82°–104°C (180°–220°F)
NOTE:
For information about temperature warnings and alarms, refer to Display Warnings and Alarms, page 87.
Fuel Gauge (C)
• E: Empty
• F: Full
Throttle (D) controls engine speed
• FULL: Push lever forward
• OPERATING: Refer to Driving Forward in Cab-Forward Mode, page 172
• CLOSED: Pull lever back
OPERATOR’S STATION
