MacDon M205 - Setting Float Options with Deck Shift

214603 273 Revision A
1000626
A
B
C
D

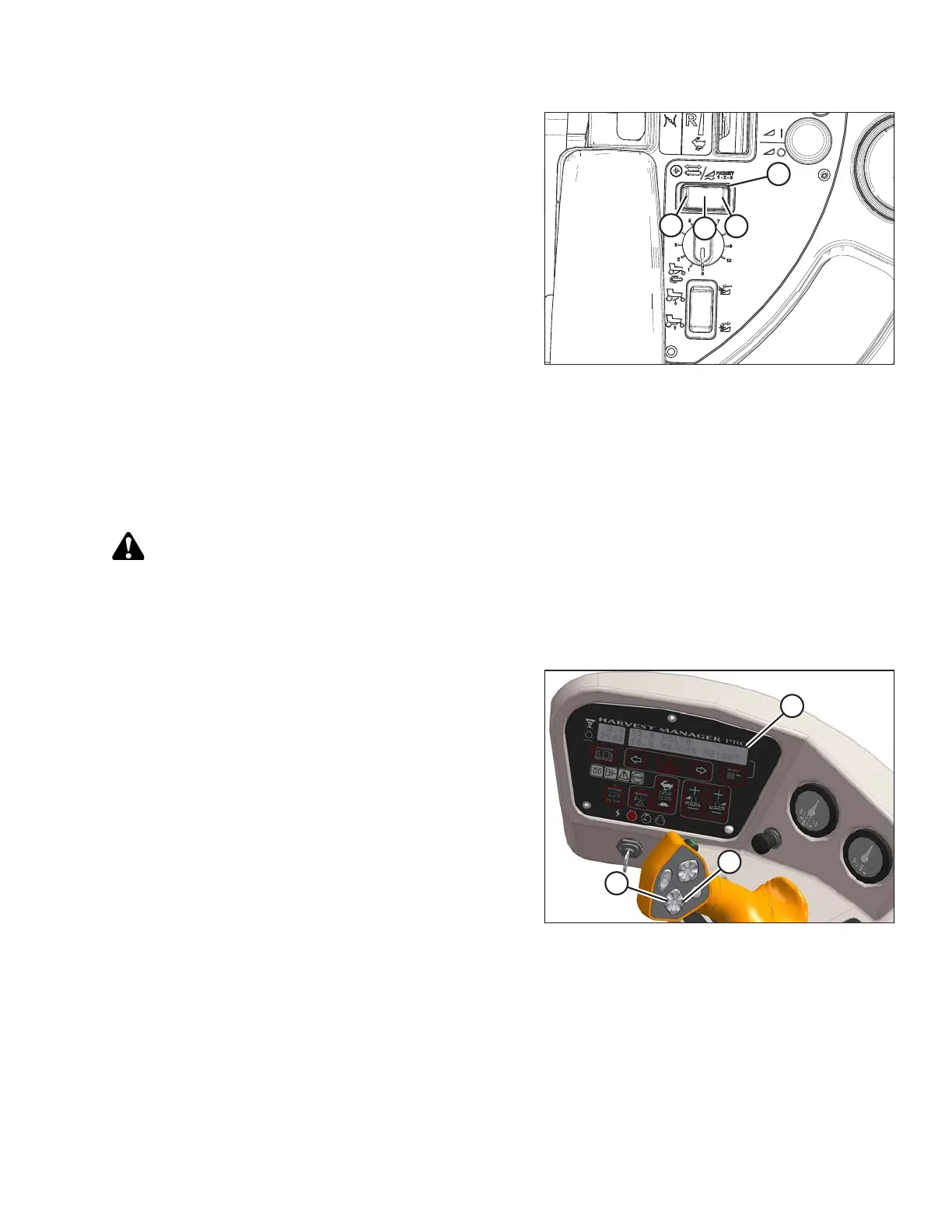

Figure 4.229: Deck Shift Switch
A - Deck Shift Switch B - Left-Side Delivery
C - Center Delivery D - Right-Side Delivery
2. Push switch (A) to desired delivery position. Deck(s) will
move and direction of drapers will change accordingly.
3. Operate windrower.
Setting Float Options with Deck Shift
For draper headers equipped with the deck shift option, the header float can be set for each deck position. Float is
maintained when the decks are shifted.
CAUTION
Check to be sure all bystanders have cleared the area.
Program the float as follows:
1. Engage header.
1025101
A
B
C
Figure 4.230: Operator Console
2. Using HEADER TILT SWITCHES (A) and (B) on the
ground speed lever (GSL), set center-link to mid-range
position (05.0 on display [C]).
OPERATION
