3.19.3 Operating Screens
The cab display module (CDM) and the windrower control module (WCM) provide information on several functions
for the engine, header, and windrower. The information displayed in various operating modes is described in the
following sections.

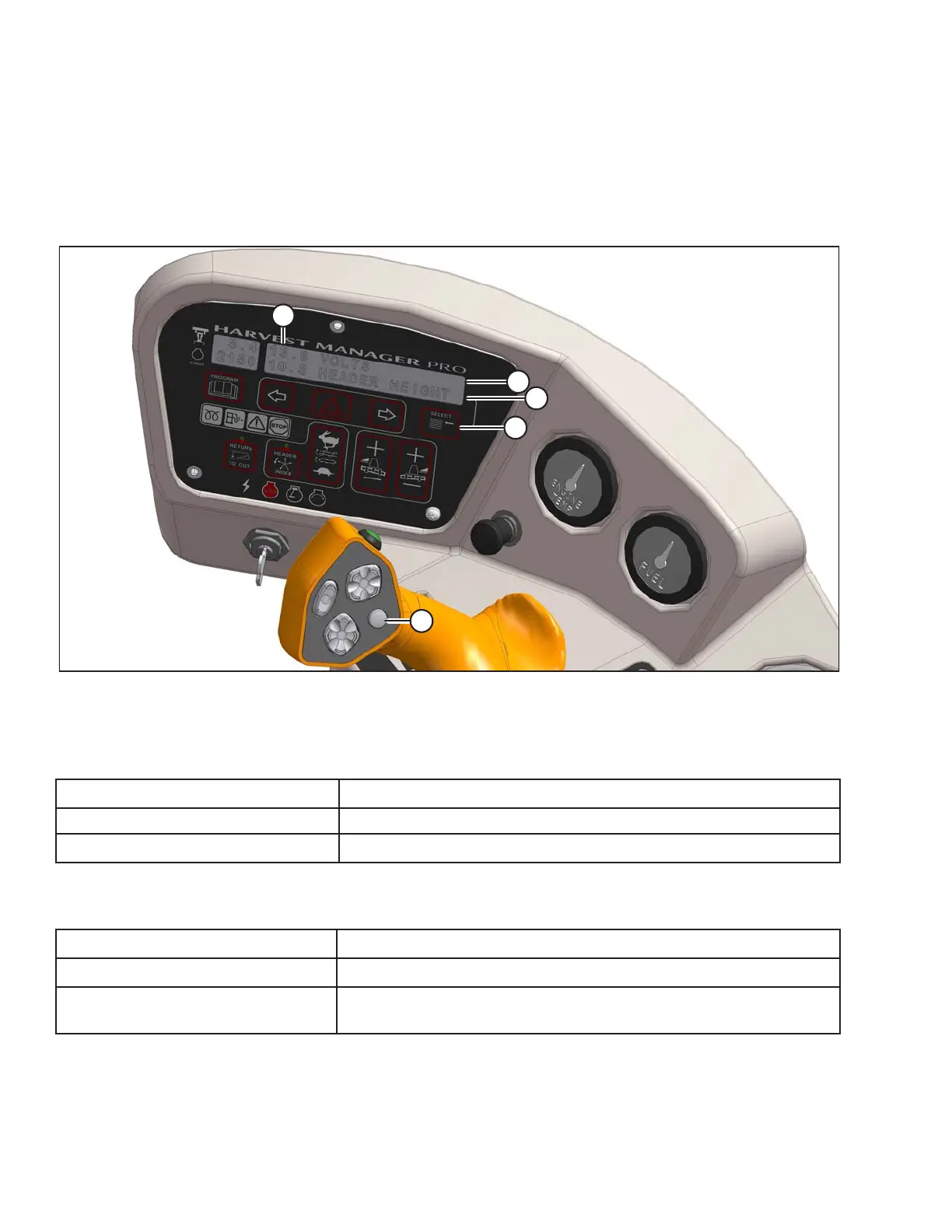

Figure 3.70: CDM Operating Screen
1000647
A
B
C
D
E
A - Display Selector for Upper Line B - Display C - CDM Upper Line
D - CDM Lower Line E - Display Selector for Lower Line
Ignition ON, Engine Not Running
Display (Upper Line) (2–3 Seconds) Description
HEADER DISENGAGED Indicates HEADER DRIVE switch is OFF
IN PARK Indicates ground speed lever (GSL) is in N-DETENT
Engine Running – At Initial Start Up
Display (Upper Line) (2–3 seconds)
Description
HEADER TYPE AND SIZE
Ignition start, engine running.
IN PARK
Indicates ground speed lever (GSL) in N-DETENT.
On startup.
OPERATOR’S STATION
