214603 87 Revision A
Display Warnings and Alarms
The cab display module (CDM) warnings and alarms indicate abnormal windrower conditions.

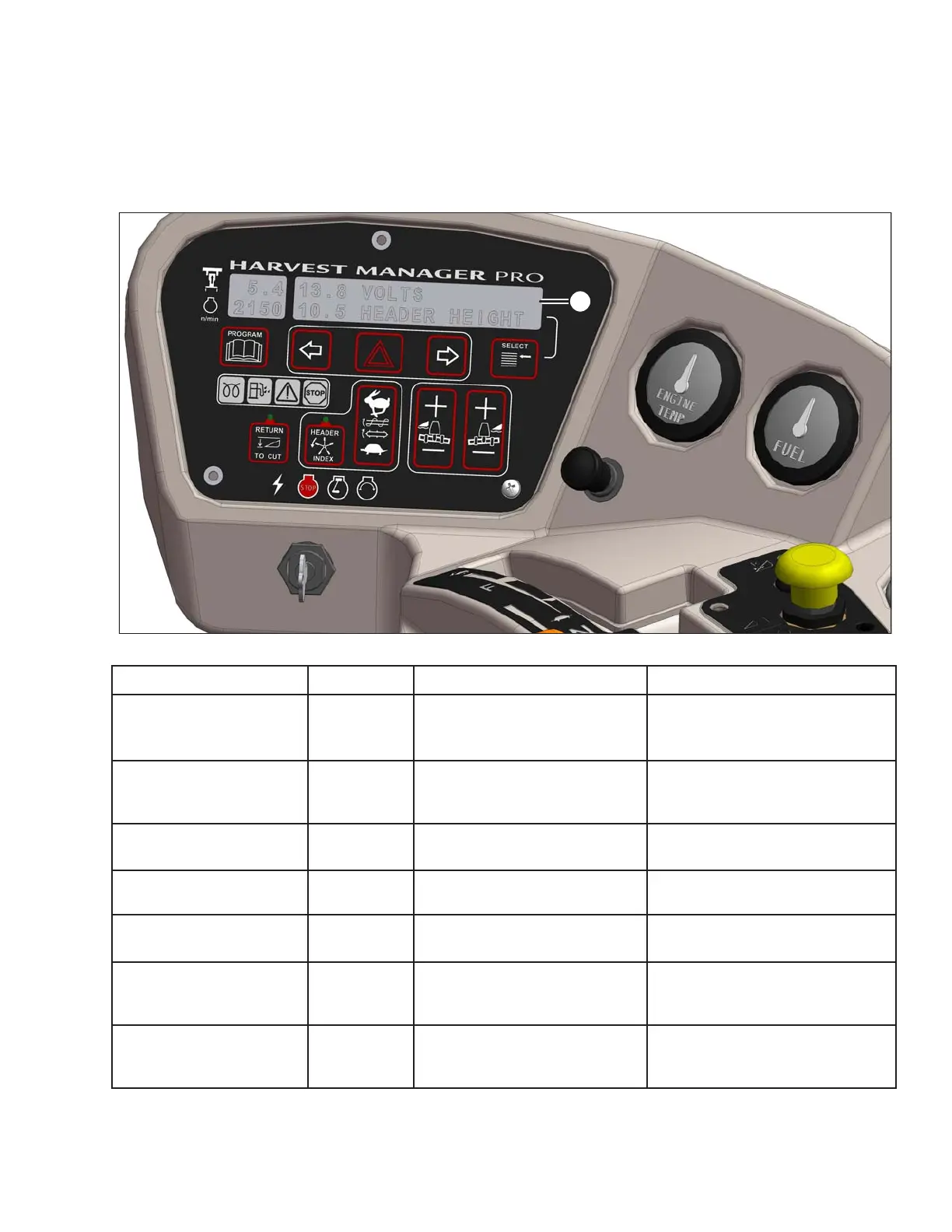

Figure 3.72: CDM Display Warnings and Alarms
Display (A) Flashing Alarm Tone Description
BRAKE OFF
Engine running, GSL in N-
DETENT, brake pressure switch
or brake switch relay fault.
BRAKE ON
X
Short beep with each flash
Ground speed lever (GSL) out of
N-DETENT, but interlock switch
remains closed to apply brake
BRAKE SW FAILURE
X
Short beep with each flash
Ignition ON/engine not running,
brake switch and relay closed
CAB-FORWARD SW ON/
ENG-FORWARD SW ON
X
Messages flash alternately
Both seat switches activated
CENTER STEERING
Two beeps per second
GSL or interlock switches not
closed with key ON/engine OFF
DISENGAGE HEADER
RE-ENGAGE
<1800 RPM>
X None
R80/R85 - Engine rpm above
1800 rpm when engaging header
ENGINE AIR FILTER
X
Single loud tone for 10 seconds,
Repeats every 30 minutes until
condition is corrected
Engine air filter requires servicing
OPERATOR’S STATION
