3.7 Exterior Lighting
1022562
A
B
C

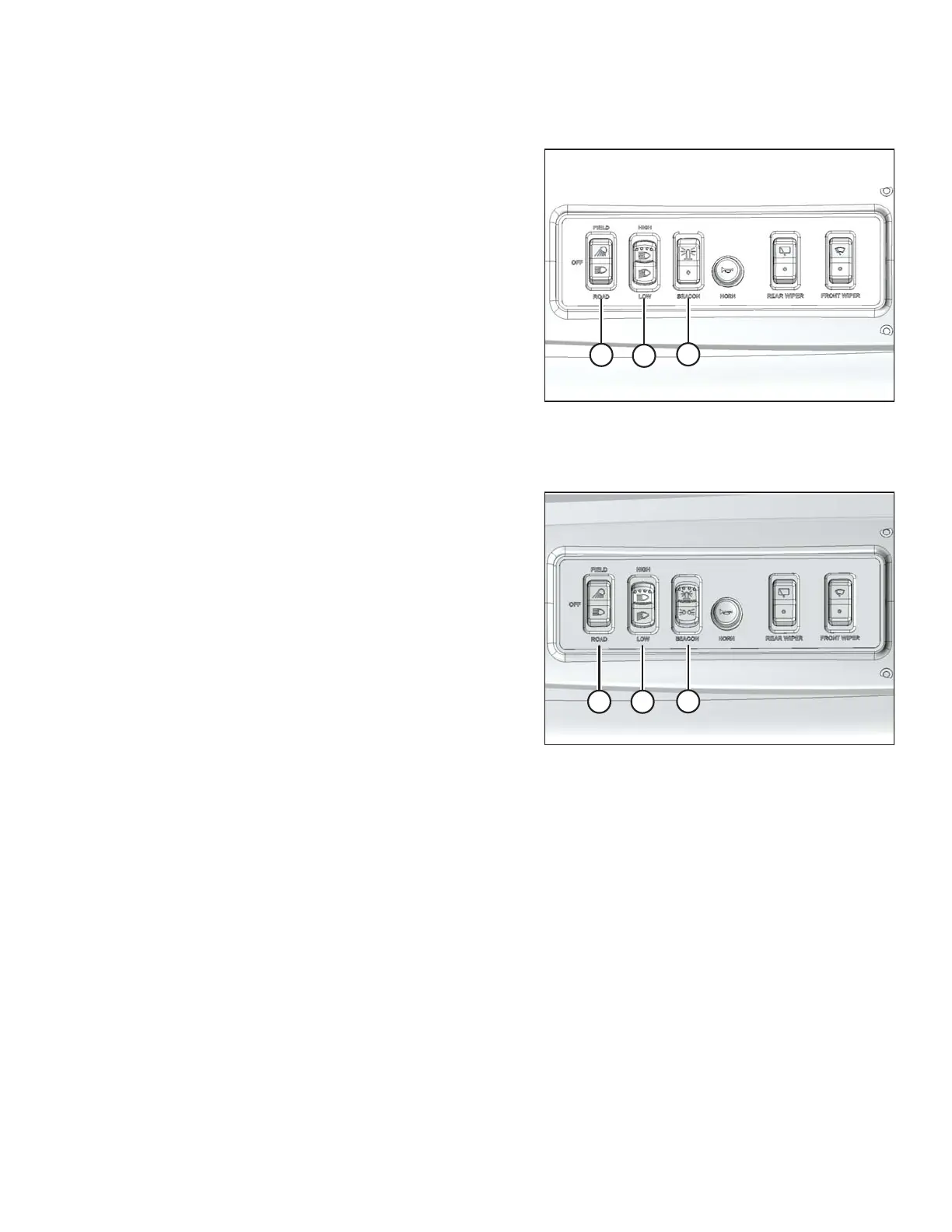

Figure 3.16: Headliner Console (except Russia)
A - FIELD / OFF / ROAD
B - HIGH / LOW
C - BEACONS / OFF
1022563
A
B
C
Figure 3.17: Headliner Console (Russia)
A - FIELD / OFF / ROAD
B - LOW / HIGH
C - BEACON & CLEARANCE / OFF / CLEARANCE
The field/road (A), high/low beam (B), and beacon light (C)
switches are located on a panel in the cab headliner. The
hazard/turn signal switch is located on the cab display
module (CDM).
The position of the operator’s station (cab-forward mode or
engine-forward mode) automatically determines the lighting.
IMPORTANT:
Red and amber reflector tape is positioned so as to be visible
in both engine-forward and cab-forward modes.
