MacDon M205 - Attaching an a Series Header: Hydraulic Center-Link Without Self-Alignment

214603 238 Revision A
1008947
A

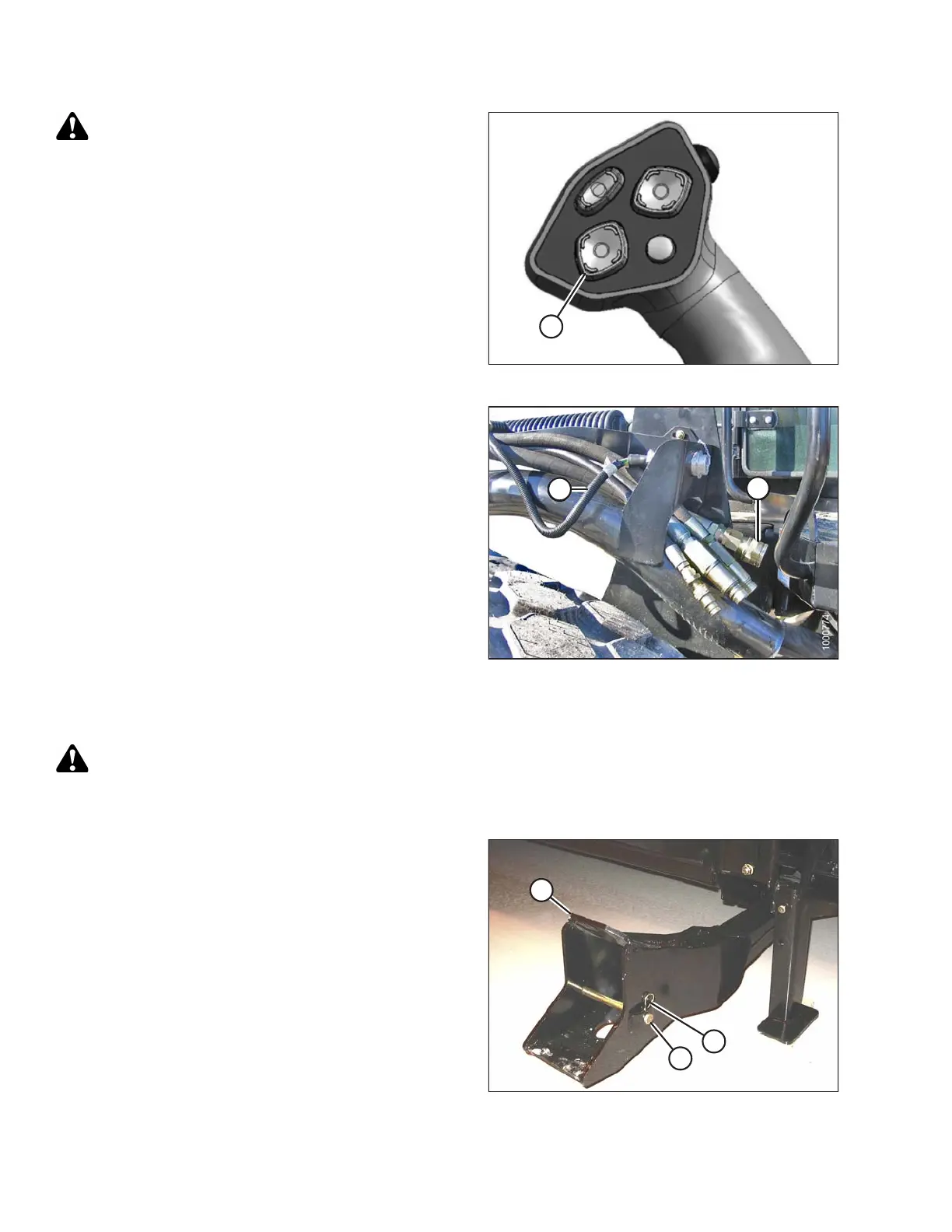

Figure 4.155: Ground Speed Lever
CAUTION
Check to be sure all bystanders have cleared the area.
19. Start the engine and press HEADER DOWN switch (A)
on the GSL to fully lower the header.
20. Stop engine and remove key from ignition.
1000774
A
B
Figure 4.156: Header Drive Hoses and Harness
21. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the draper header
operator’s manual.
Attaching an A Series Header: Hydraulic Center-Link without Self-Alignment
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1000778
A
B
C
Figure 4.157: Header Boot
1. Remove hairpin (A) from clevis pin (B) and remove
clevis pin from the header boots (C) on both sides of the
header.
OPERATION
