214603 239 Revision A

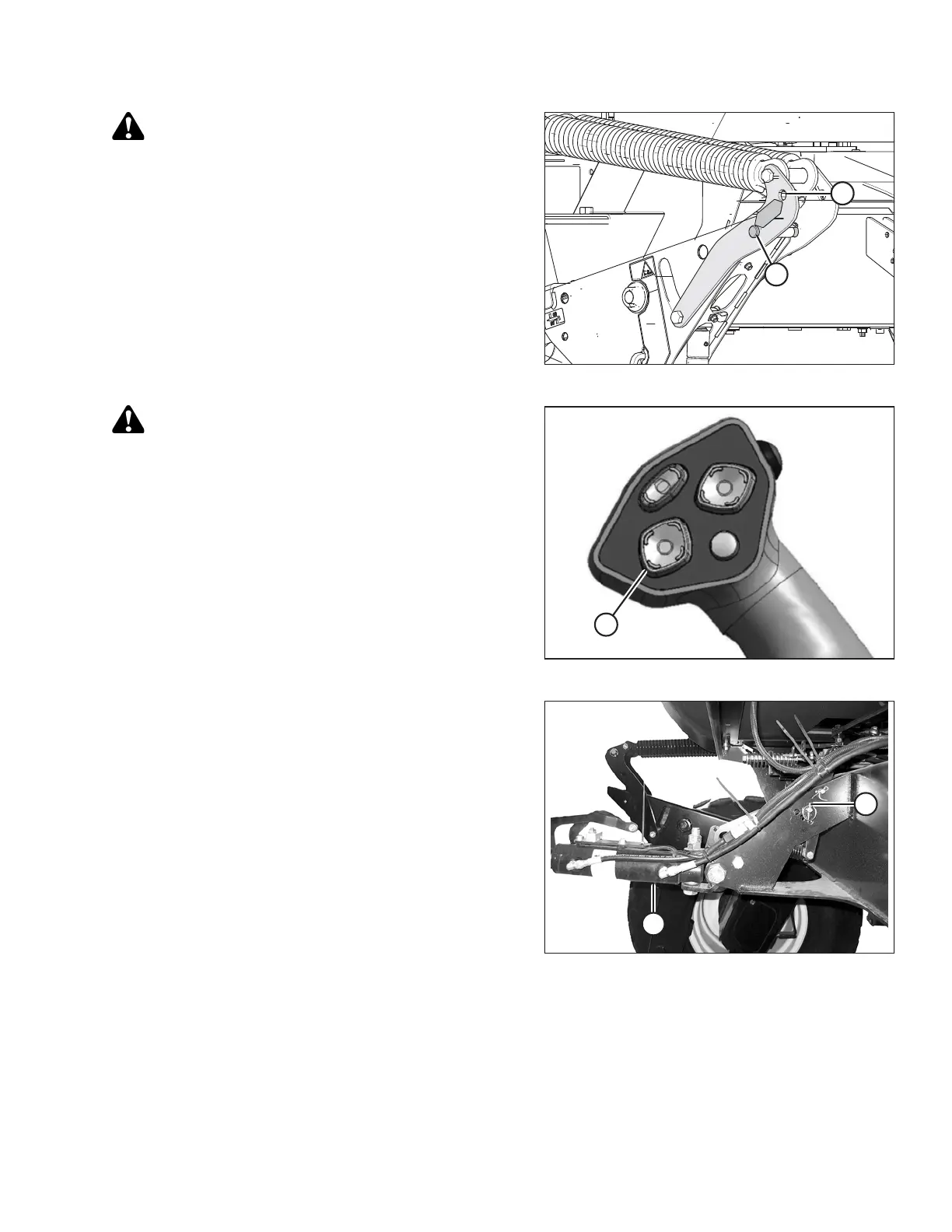

Figure 4.158: Header Float Linkage
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to the windrower, ensure the float engagement
pin is installed in storage position (B) and NOT in
engaged position (A).
Figure 4.159: Ground Speed Lever
CAUTION
Check to be sure all bystanders have cleared the area.
IMPORTANT:
Before starting engine, remove protective cover from
exhaust stack.
2. Start the engine and activate the HEADER DOWN
button (A) on the ground speed lever (GSL) to fully
retract header lift cylinders.
Figure 4.160: Hydraulic Center-Link without
Self-Alignment Kit
3. Remove pin (A) pin in frame linkage and raise center-
link (B) until hook is above the attachment pin on
header. Replace pin (A) to hold center-link in place.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
OPERATION
