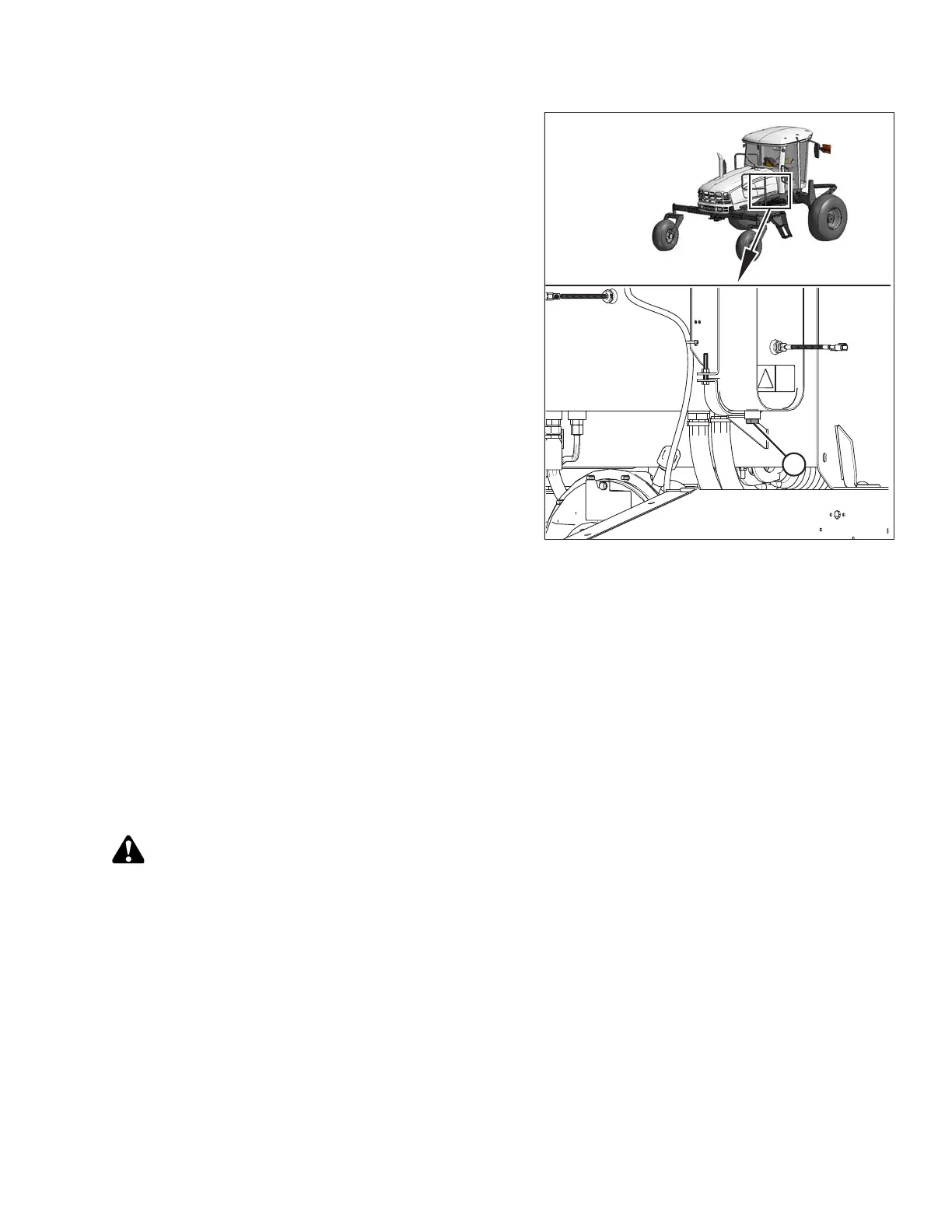

Figure 5.184: Hydraulic Oil Drain Plug
5. Remove drain plug (A) and allow oil to drain.
6. Change the lift filter. Refer to Removing Lift Filter, page
392.
7. Inspect plug and clean off any metal debris that may
have accumulated on magnetic plug. Wipe plug with a
clean cloth. Check O-ring condition. Look for cracking,
breakage, or deformation that may impede sealing
ability and replace as required.
8. Install drain plug (A), torque to 80 Nm (59 lbf·ft).
9. Fill hydraulic oil reservoir. Refer to 5.10.1 Checking and
Filling Hydraulic Oil, page 385.
5.10.4 Changing Hydraulic Oil Filters
Charge Oil Filter
The charge oil filter cleans the oil in the hydraulic charge circuit. The charge circuit replenishes oil losses that occur
normally at the motor and pump case drains and associated circuits.
Refer to the following procedures to change the charge oil filter:
• Removing Charge Oil Filter, page 387
• Installing Charge Oil Filter, page 389
Removing Charge Oil Filter
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
MAINTENANCE AND SERVICING
