3.3.7 Adjusting Armrest Angle
1000576
A

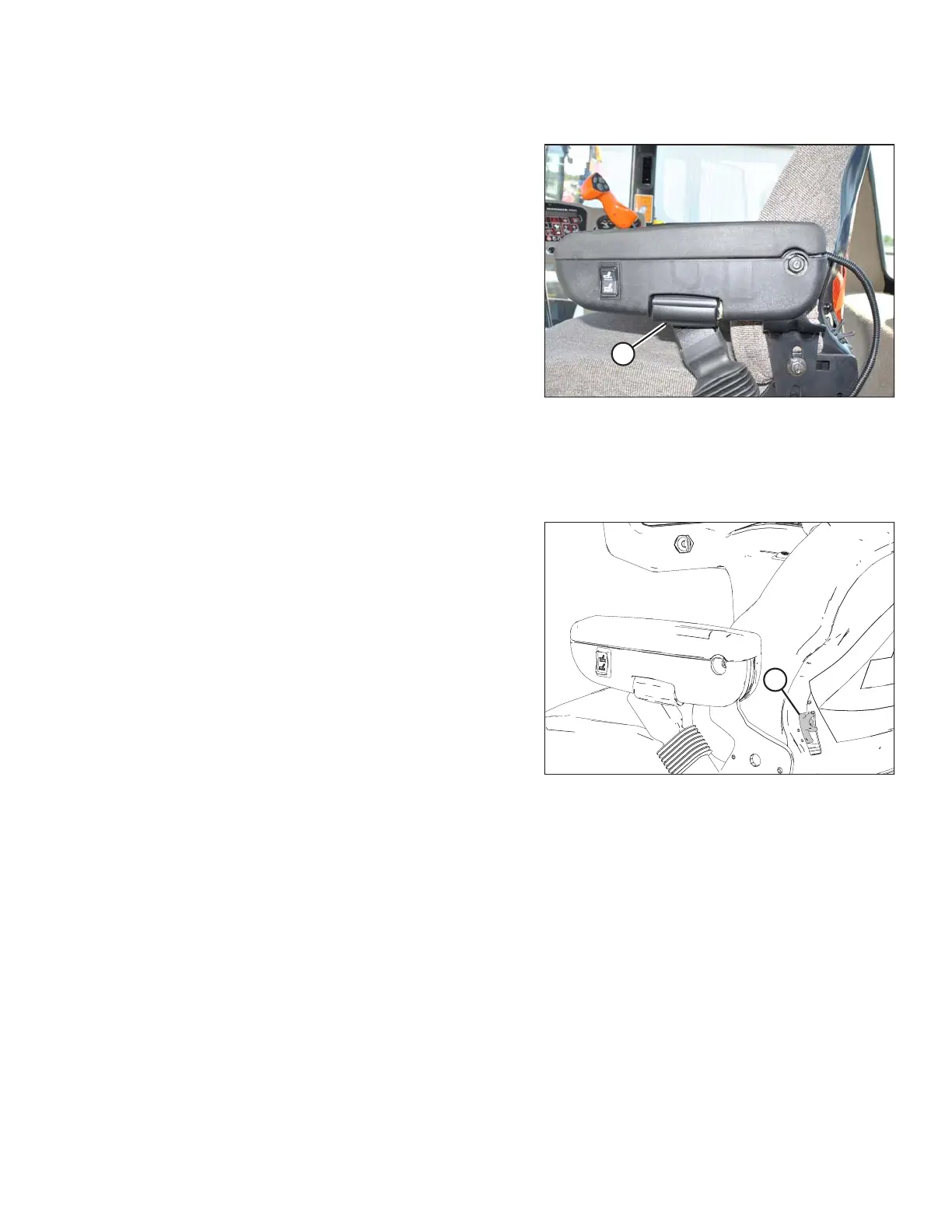

Figure 3.10: Armrest Angle
INCREASE: Rotate knob (A) clockwise.
DECREASE: Rotate knob (A) counterclockwise.
3.3.8 Adjusting Lumbar Support
Adjusts the stiffness of seat back.
1007710
A
Figure 3.11: Lumbar Support
INCREASE: Rotate knob (A) upward.
DECREASE: Rotate knob (A) downward.
