Changing Wheel Drive Lubricant
The wheel drive lubricant should be changed after the first 50 hours and then changed after every 1000 hours.
Change the lubricant when it is warm.
Check the level every 200 hours or annually.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
CAUTION
Park on a flat, level surface with the header on the ground and the ground speed lever in N-DETENT
position with the steering wheel locked.

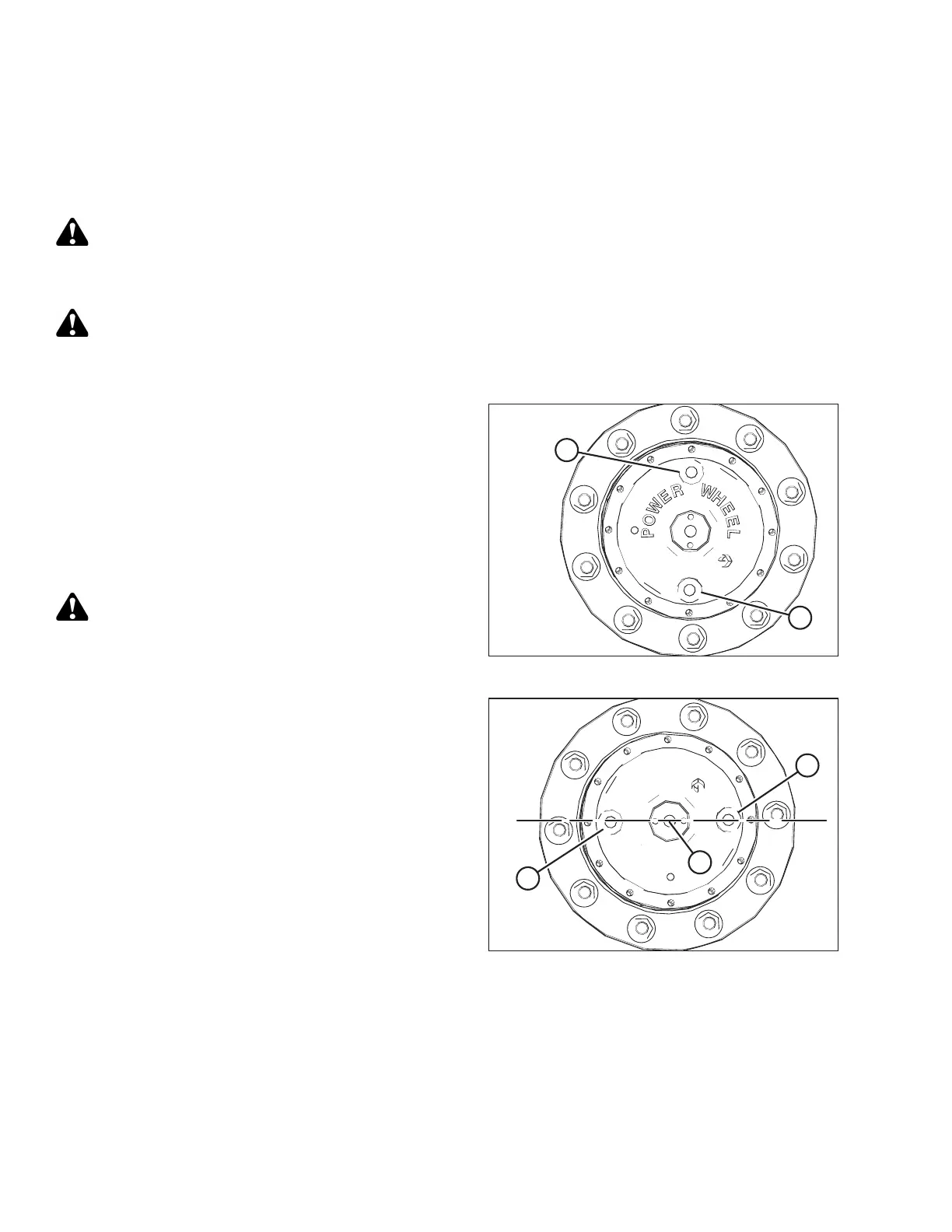

Figure 5.206: Drive Wheel Hub
1. Park windrower on level ground and position windrower
so that one of the drain plugs (A) or (B) is at the
lowest point on the drive wheel hub.
2. Shut down the windrower and remove key from ignition.
3. Place a container that can contain at least 2 liters
(2 quarts) under the lower drain plug (B).
4. Remove both plugs (A) and (B), and drain lubricant into
container.
CAUTION
Dispose of oil in a manner that complies with local rules
and regulations.
Figure 5.207: Drive Wheel Hub
5. After the lubricant has drained completely, start the
windrower and position it so that ports (A) and (B) on
wheel are level with the center of the hub (C) as shown.
6. Shut down the windrower and remove the key from the
ignition.
7. Add lubricant. Refer to Adding Wheel Drive Lubricant,
page 401.
