MacDon M205 - Activating the Reel Speed Control Lockout

214603 117 Revision A
1010007
DISK SPEED
ENABLED/LOCKED
C###
X###
D
C
B
A

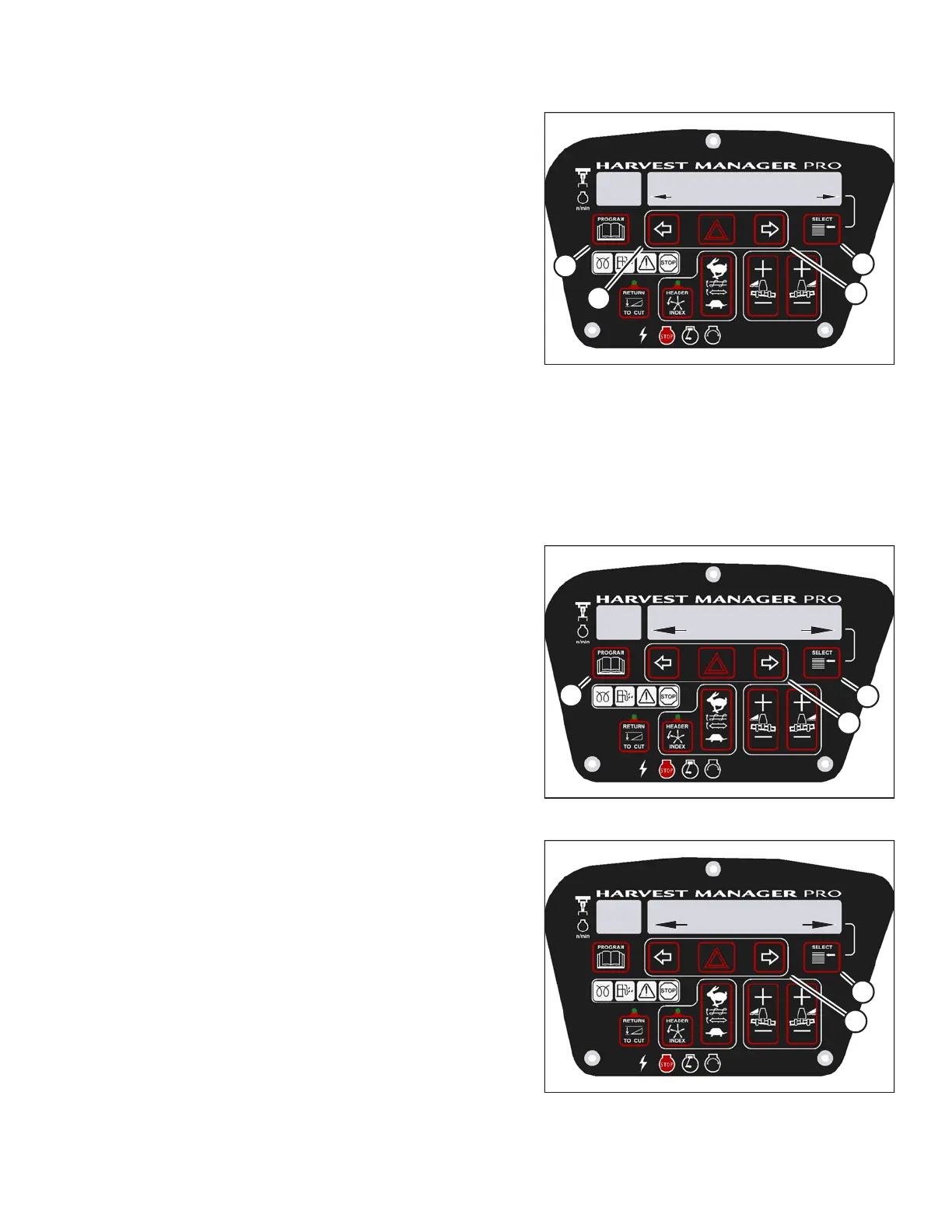

Figure 3.126: M205 Disc Speed Control Lock
6. Press SELECT (D) until DISK SPEED is displayed on
the upper line.
• ENABLED/LOCKED is displayed on the lower line.
7. Press left arrow (B) to enable DISK SPEED control
switch, or press right arrow (C) to lock DISK SPEED
control switch.
8. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
Activating the Reel Speed Control Lockout
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header.
For more information, refer to 4.5 Attaching and Detaching Headers, page 217.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C
Figure 3.127: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
1010005
NO/YES
SET CONTROL LOCKS?
C###
X###
B
A
Figure 3.128: M205 Control Locks
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right arrow (A) to select YES. Press SELECT (B).
OPERATOR’S STATION
