214603 405 Revision A
Installing Drive Wheel
CAUTION
Use a suitable lifting device capable of supporting a minimum of 907 kg (2000 lb.) to lift the wheel
assembly away from the windrower.

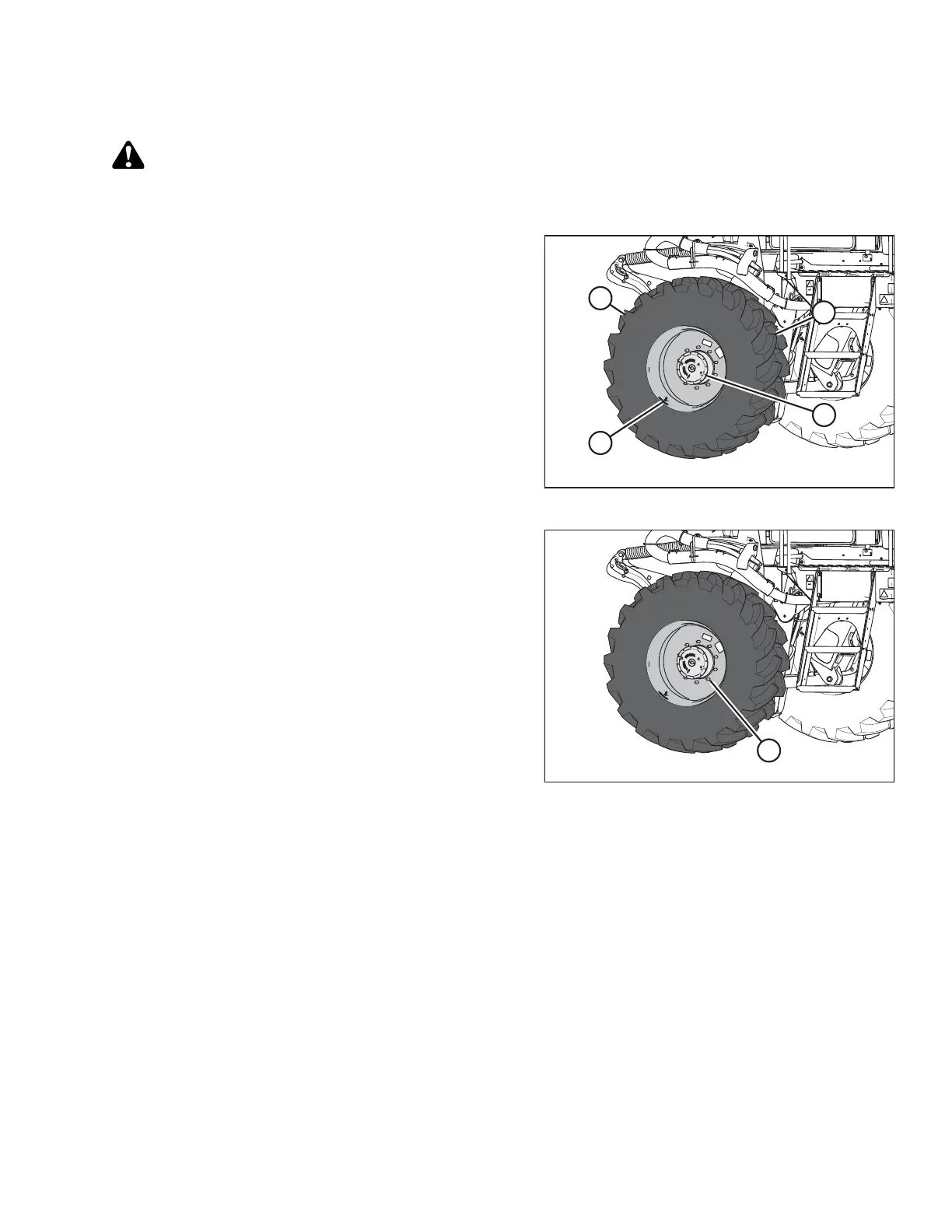

Figure 5.211: Drive Wheel
1. Position drive wheel (A) against wheel drive hub (B) so
air valve (C) is on the outside and tire tread (D) points in
cab-forward direction.
NOTE:
For turf tires (diamond tread), be sure arrow on sidewall
points in cab-forward rotation.
2. Lift wheel onto hub using a suitable lifting device.
3. Remove the lifting device.
Figure 5.212: Drive Wheel Nuts
4. Line up the holes in the rim with the studs on the wheel
drive hub and install wheel nuts (A).
IMPORTANT:
To avoid damage to wheel rims and studs, tighten nuts
by hand. Do NOT use an impact gun, do NOT use
lubricant or Never-Seez
®
compound, and do NOT
overtighten wheel nuts.
5. Torque drive wheel nuts. Refer to Tightening Drive
Wheel Nuts, page 400.
6. Lower the windrower, and remove jack. Refer to
Lowering Drive Wheel, page 406.
MAINTENANCE AND SERVICING
