MacDon M205 - Replacing High-Intensity Discharge (HID) Auxiliary Lights (if Installed)

214603 366 Revision A
1005944
B
C
A

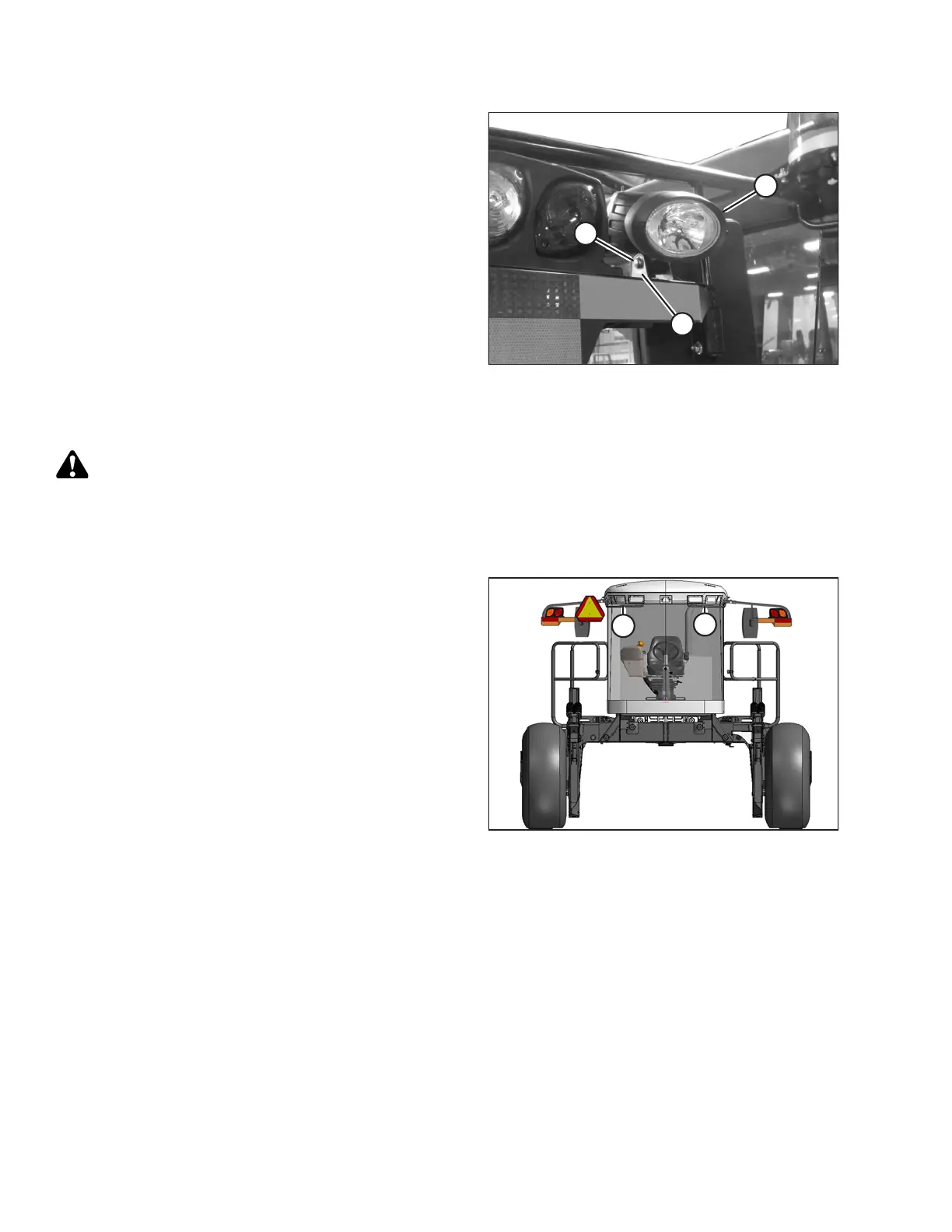

Figure 5.145: HID Auxiliary Lights
1. Shut down engine and remove key. Turn lights ON.
2. Loosen bolt (A) and nut (C) (located inside the
light/mirror support).
3. Position light (B) to desired position.
4. Tighten bolt and nut.
Replacing High-Intensity Discharge (HID) Auxiliary Lights (if Installed)
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
To remove and replace the lamp only, follow these steps:
1000891
A
A
Figure 5.146: Cab-Forward Lights
1. Shut down engine and remove key. Turn lights OFF.
NOTE:
Hold onto the handholds (A) on the cab front corners
and stand on the header anti-slip strips, or stand on the
maintenance platform when accessing the HID
auxiliary lights.
