214603 174 Revision A

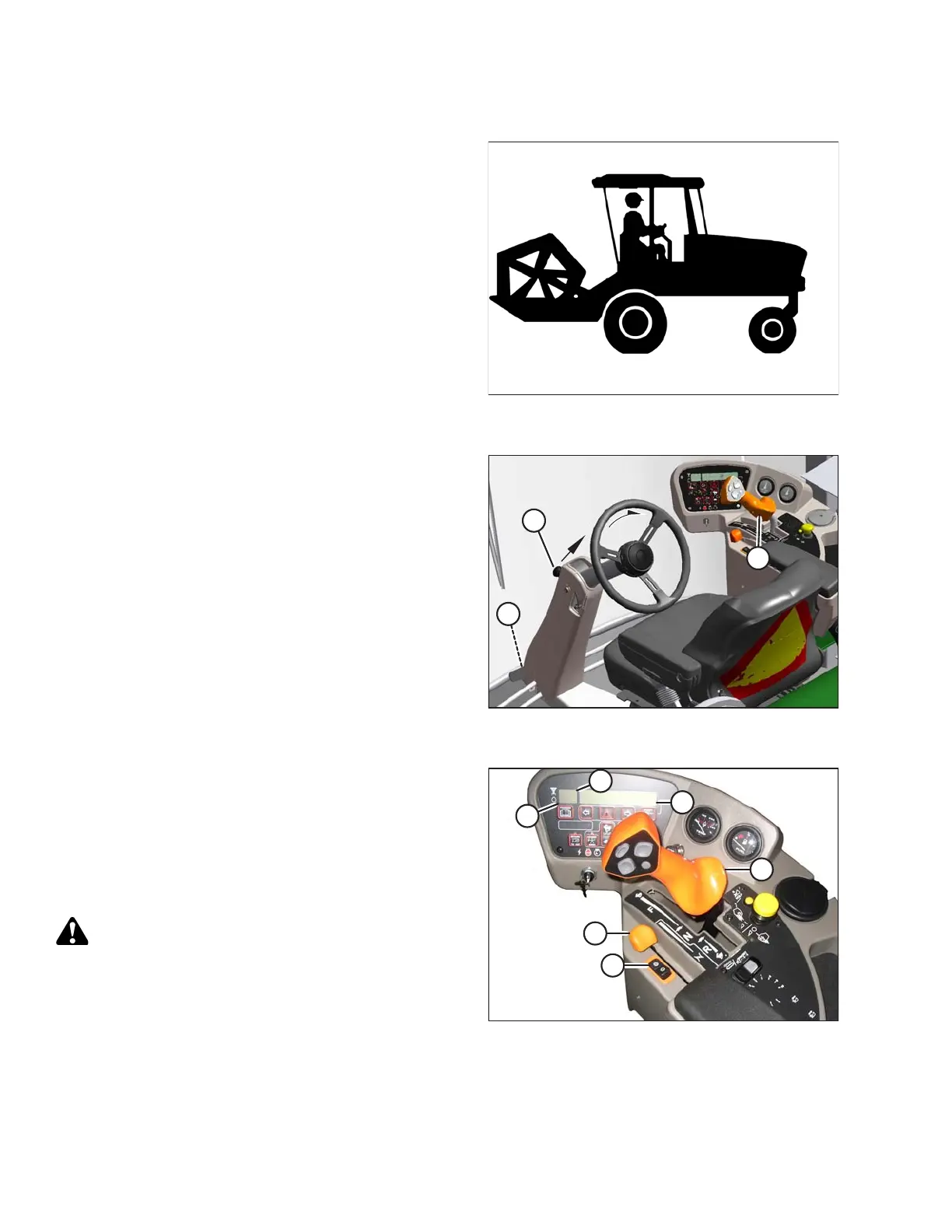

Driving Forward in Engine-Forward Mode
Figure 4.20: Engine-Forward – Seat
Faces Engine
In the engine-forward mode, the operator’s station is facing
toward the engine. If necessary, swivel operator’s station to
engine-forward position as follows:
Figure 4.21: Engine-Forward – Seat
Faces Engine
1. Place ground speed lever (GSL) (A) in N-DETENT and
lock steering wheel. Engine can be running.
IMPORTANT:
If GSL is NOT in N-DETENT, damage to the GSL cable
may result when swivelling operator’s station.
2. Pull up on knob (B) and hold to release latch (C) at base
of steering column.
3. Turn steering wheel clockwise to pivot operator’s
station counterclockwise 180° until pin engages latch to
secure operator’s station in new position.
4. Start the engine if not running.
Figure 4.22: Operator Console
5. Set GROUND SPEED RANGE switch (A) to H for road
speed (0–37 km/h [23 mph]). Cab display module
(CDM) will display ROAD GEAR at (F) and an alarm will
briefly sound.
6. Slowly push throttle (B) to full forward (operating
speed). CDM should display 2320–2350 rpm at
location (C).
CAUTION
Check to be sure all bystanders have cleared the area.
7. Slowly move the GSL (E) forward to desired speed
which will be displayed at (D).
OPERATION
