214603 142 Revision A
1010026
ACTIVATE REEL HT
DOWN/UP
C###
X###
D
C
B
A

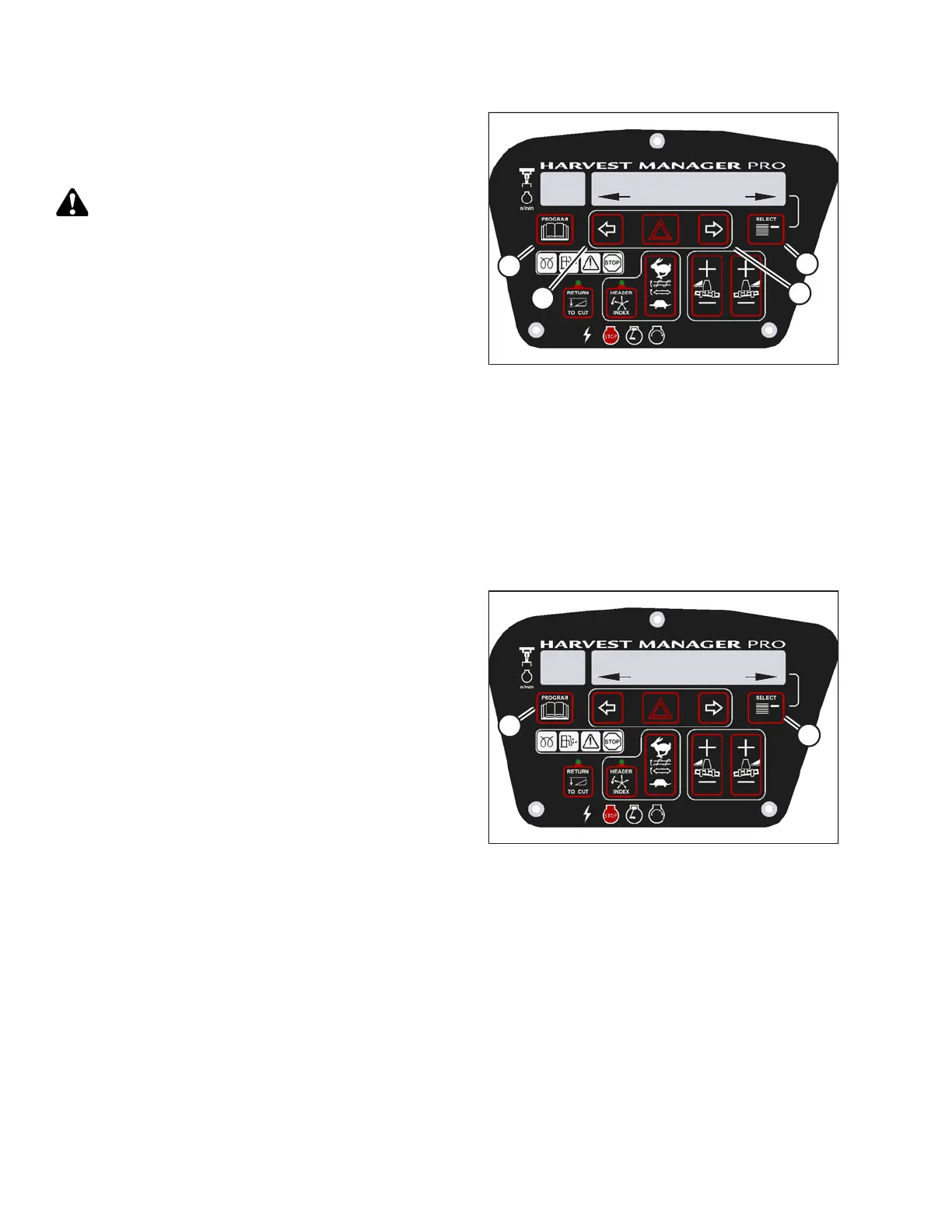

Figure 3.187: M205 Reel Height
7. Press SELECT (D) until ACTIVATE REEL HT is
displayed on the upper line.
• DOWN/UP is displayed on the lower line.
CAUTION
Check to be sure all bystanders have cleared the area.
8. Press and hold left arrow (B) to lower reel. Press and
hold right arrow (C) to raise reel.
IMPORTANT:
Verify reel is functioning properly.
9. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next ACTIVATE
FUNCTION.
Testing the Header Tilt Activate Function Using the Cab Display Module (CDM)
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
• The engine MUST be running to perform this procedure.
1007188
C###
X###
WINDROWER SETUP?
NO/YES
A
B
Figure 3.188: M205 CDM Programming Buttons
1. Start the engine.
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
OPERATOR’S STATION
To Next Page
