MacDon M205 - Operating the Windrower

214603 141 Revision A
1007188
C###
X###
WINDROWER SETUP?
NO/YES
A
B

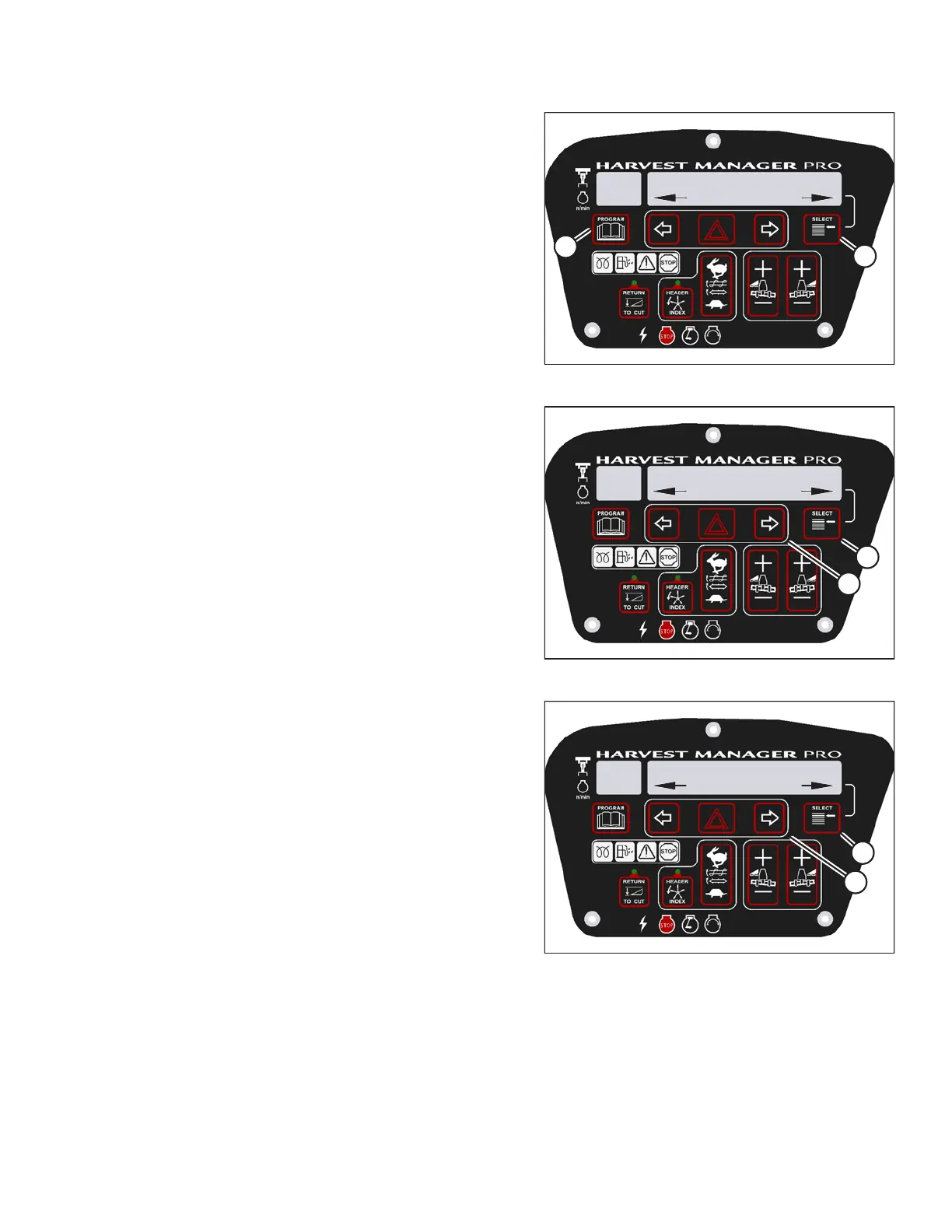

Figure 3.184: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode. Press
SELECT (B).
• WINDROWER SETUP? is displayed on the
upper line.
1010019
DIAGNOSTIC MODE?
NO/YES
C###
X###
A
B
Figure 3.185: M205 Diagnostic Functions
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.
4. Press right arrow (A) to select YES. Press SELECT (B).
1010024
ACTIVATE FUNCTIONS?
NO/YES
C###
X###
B
A
Figure 3.186: M205 Functions
5. Press SELECT (B) until ACTIVATE FUNCTIONS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right arrow (A) to select YES. Press SELECT (B).
