214603 101 Revision A
Setting the Header Cut Width
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
• Header cut width is less than actual header width to accurately measure number of acres cut.
• The header sends an electrical signal to the windrower to produce a header ID; however, the cut width will
always default to the smallest header size available for each header type. For example, A Series Auger
Headers come in 4.3, 4.9, and 5.5 m (14, 16, and 18 ft.) sizes, but the cut width will automatically default to the
smallest (4 m [14 ft.] size) and will need to be changed to your specific header’s size.
1. Turn ignition key to RUN, or start the engine.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C

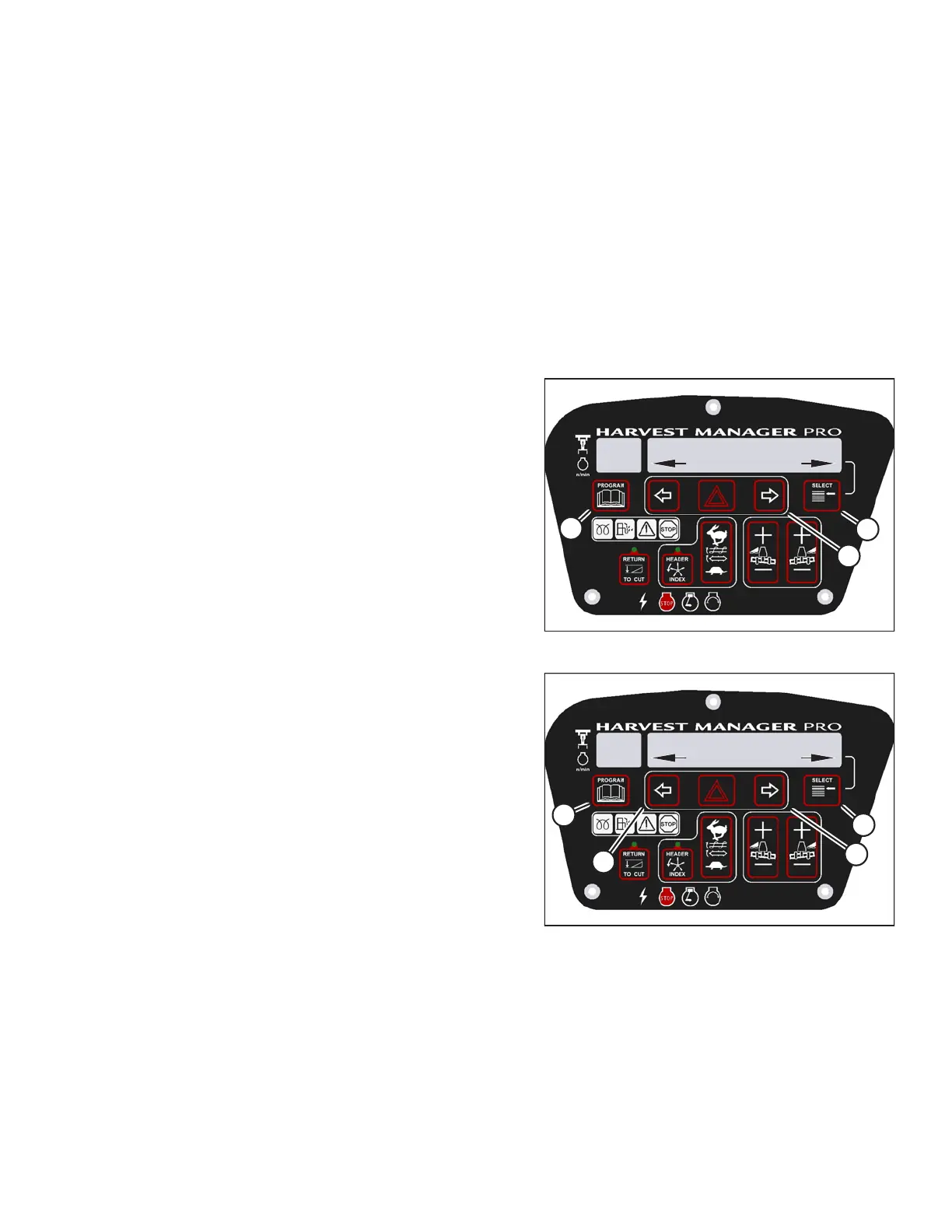

Figure 3.92: M205 CDM Programming Buttons
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed.
1009994
HDR CUT WIDTH? 0101
20.5 FEET
C###
X###
D
C
B
A
Figure 3.93: M205 Header Cut Width
4. Press SELECT (D) until HDR CUT WIDTH? #### is
displayed on the upper line.
• Previous cutting width is displayed on the lower line.
5. Press left (B) or right (C) arrows to change the header
cut width. Press SELECT (D).
6. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
