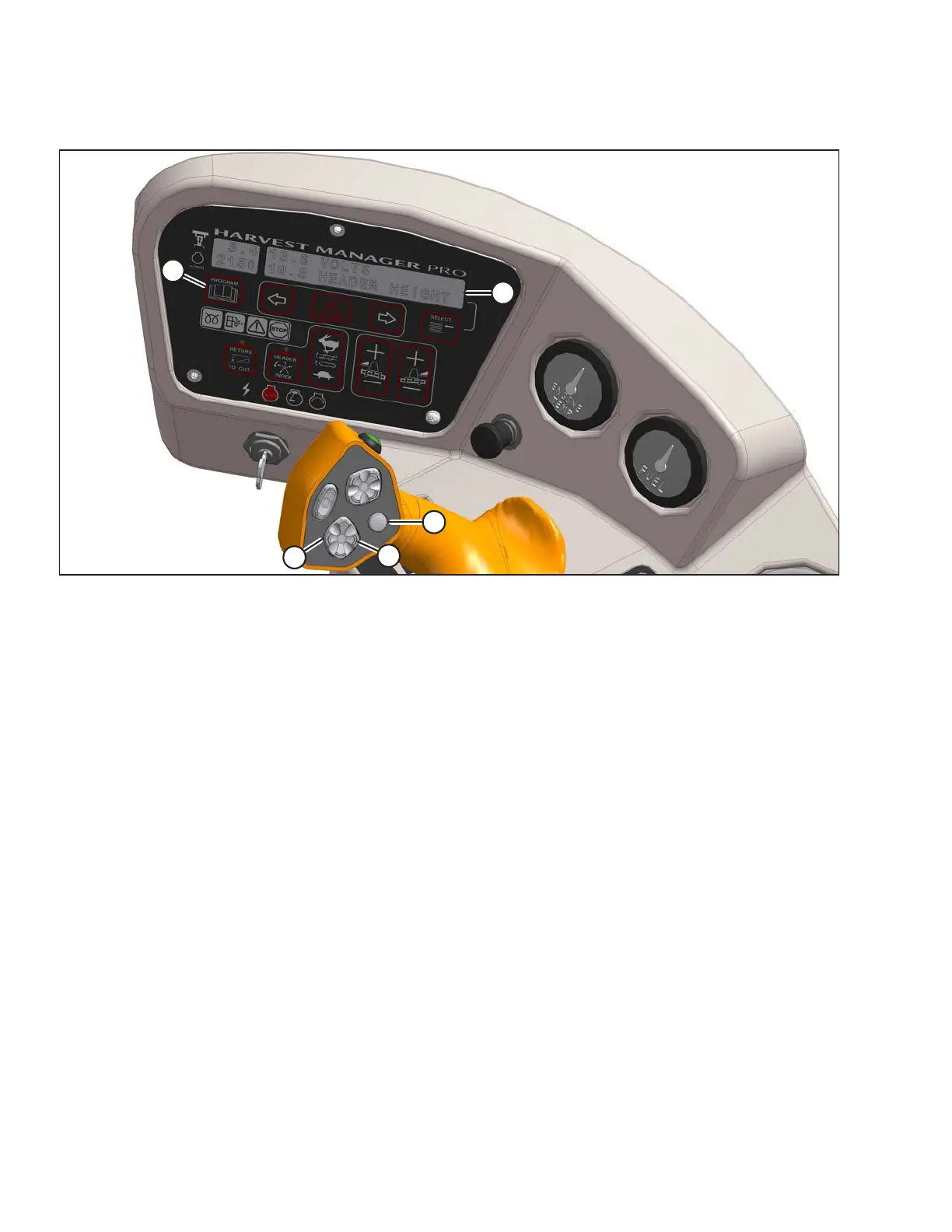

Figure 4.83: Operator Console
1000738
A
B
C
D
E
A - Program Button B - Display C - Header Tilt Down
D - Header Tilt Up E - Display Selector
Adjust the header angle as follows:
• To decrease (flatten) header angle, operate HEADER TILT UP switch (D) on ground speed lever (GSL) handle
so that cylinder retracts. The CDM display will show a reading on the lower line of decreasing value between
00.0 and 10.0.
• To increase (steepen) header angle, operate HEADER TILT DOWN switch (C) on the GSL handle so the
cylinder extends. The CDM display will show a reading on the lower line of increasing value between
00.0 and 10.0.
NOTE:
The HEADER TILT switch can be locked out to prevent inadvertent header angle changes when pressing the
HEADER HEIGHT control switches. Refer to Activating the Header Tilt Control Lockout, page 108.
Checking Self-Locking Center-Link Hook
Periodically check the operation of the hook locking mechanism and ensure that it is working properly as follows:
OPERATION
