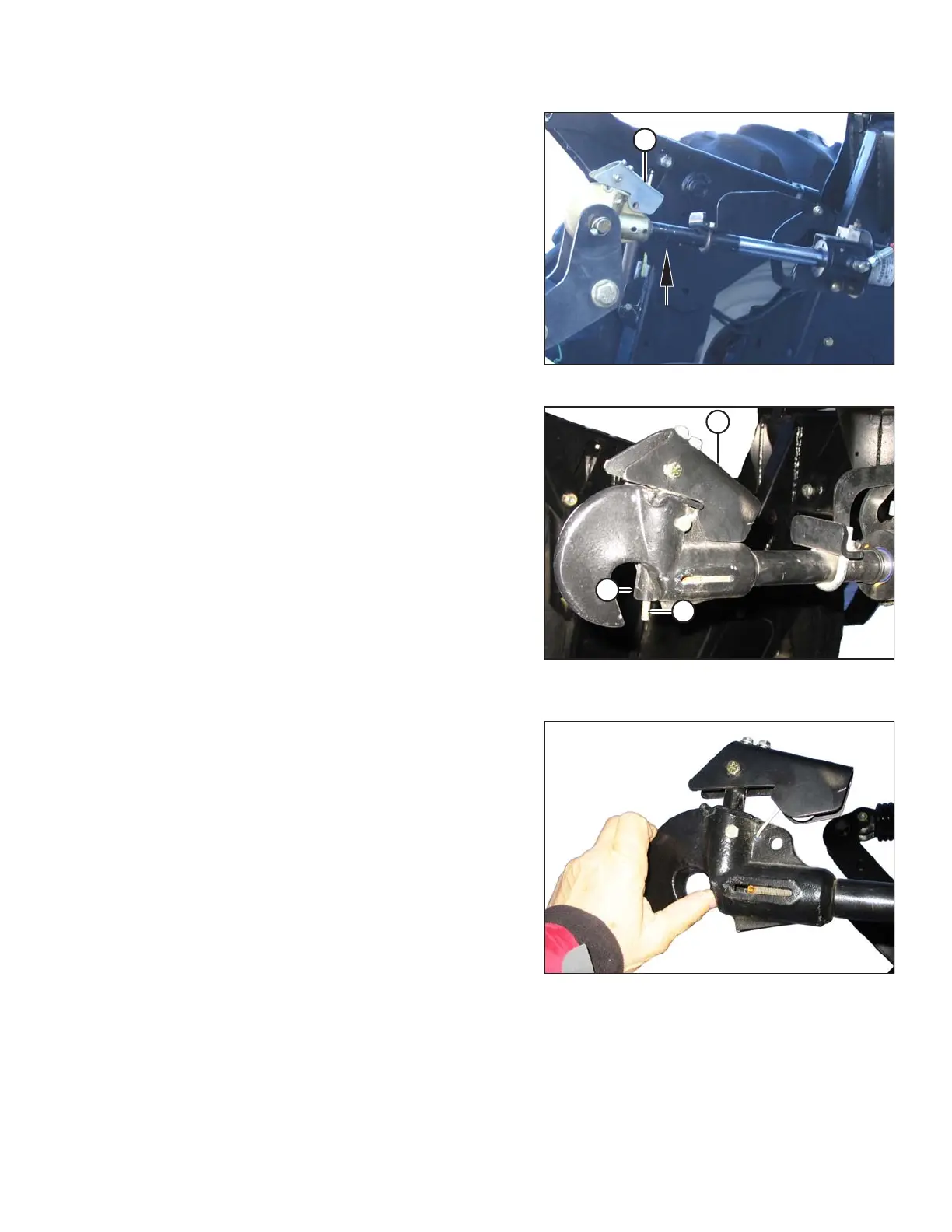

Figure 4.84: Center-Link
1. If header is attached to windrower, disconnect center-
link hook from header by pulling up on handle (A) to
release the locking device and then lifting the hook off
the header pin.
1000741
A
B
C
Figure 4.85: Center-Link Hook
A - Handle B - Lock Pin C - Actuator Rod
2. Lower the handle (A) into the LOCK position.
3. Push up on lock pin (B) only. Handle should catch on
casting and pin should NOT lift.
1000740
Figure 4.86: Center-Link Hook
4. Push up on actuator rod and lock pin should lift with the
handle.
