MacDon M205 - Headlights: Engine-Forward; Replacing Headlight Bulb

214603 358 Revision A
1018128
A
B

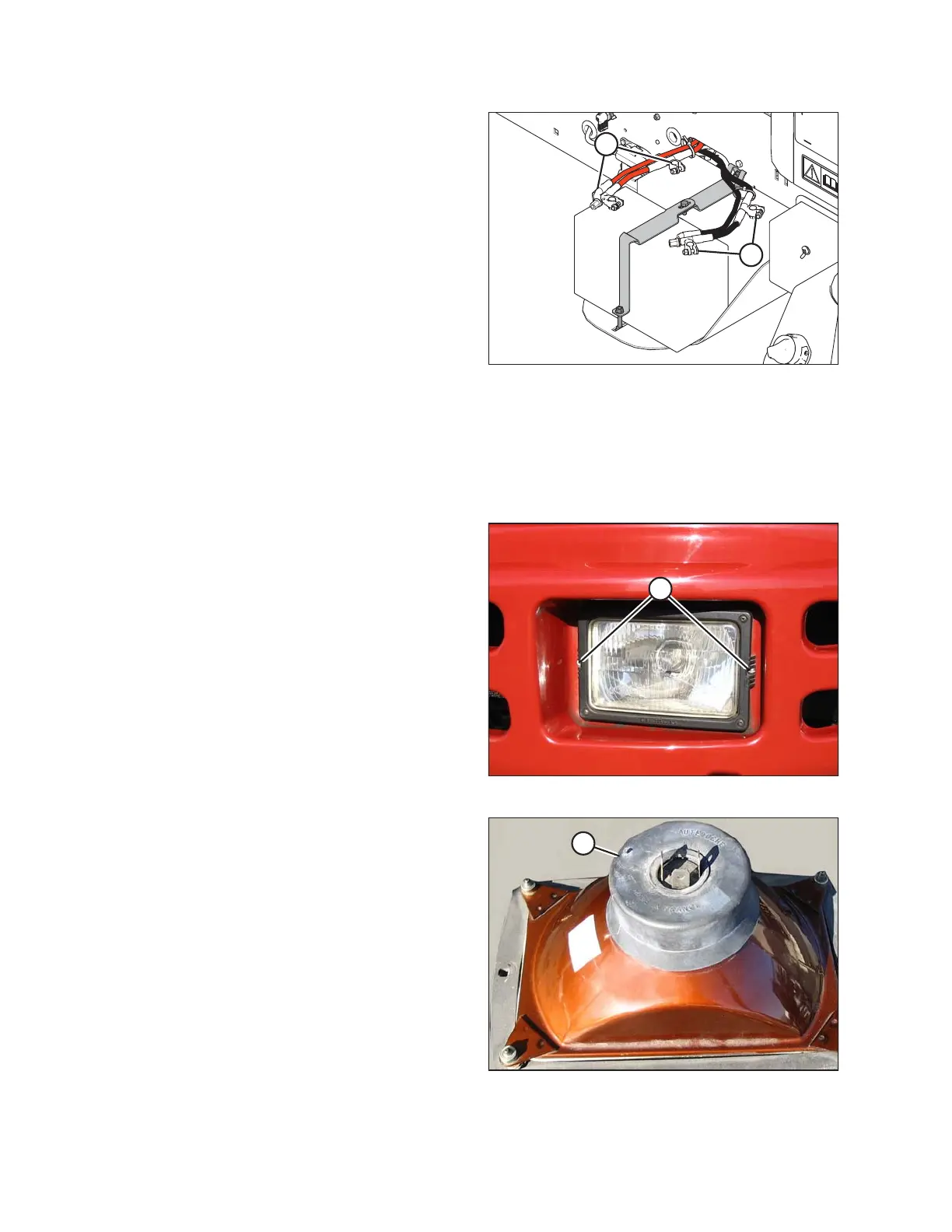

Figure 5.127: Batteries
5. Remove the plastic caps from the battery posts.
6. Attach the red positive (+) cable terminals to the
positive posts (A) on the batteries and tighten clamps.
Reposition plastic covers onto clamps.
7. Attach the black negative (–) cable terminals to the
negative posts (B) on the batteries and tighten clamps.
Reposition plastic covers onto clamps.
8. Turn the battery switch to the POWER ON position.
9. Close the platform. Refer to 5.3.2 Closing Platforms
(Standard Position), page 289.
5.9.3 Headlights: Engine-Forward
Replacing Headlight Bulb
Replacement bulb: MD #110267 (H4 12V 60/55W)
1000845
A
Figure 5.128: Headlight
1. Remove two screws (A) and remove headlight
assembly from hood.
1000846
A
Figure 5.129: Headlight Assembly
2. Pull wiring harness connector off the headlight
assembly and remove rubber insulator boot (A).
MAINTENANCE AND SERVICING
