214603 385 Revision A
5.10.1 Checking and Filling Hydraulic Oil
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Park windrower on level ground and lower header and reel so that lift cylinders are fully retracted.
2. Stop the engine and remove the key.
3. Open the hood. Refer to 5.2.1 Opening Hood (Lower Position), page 284.

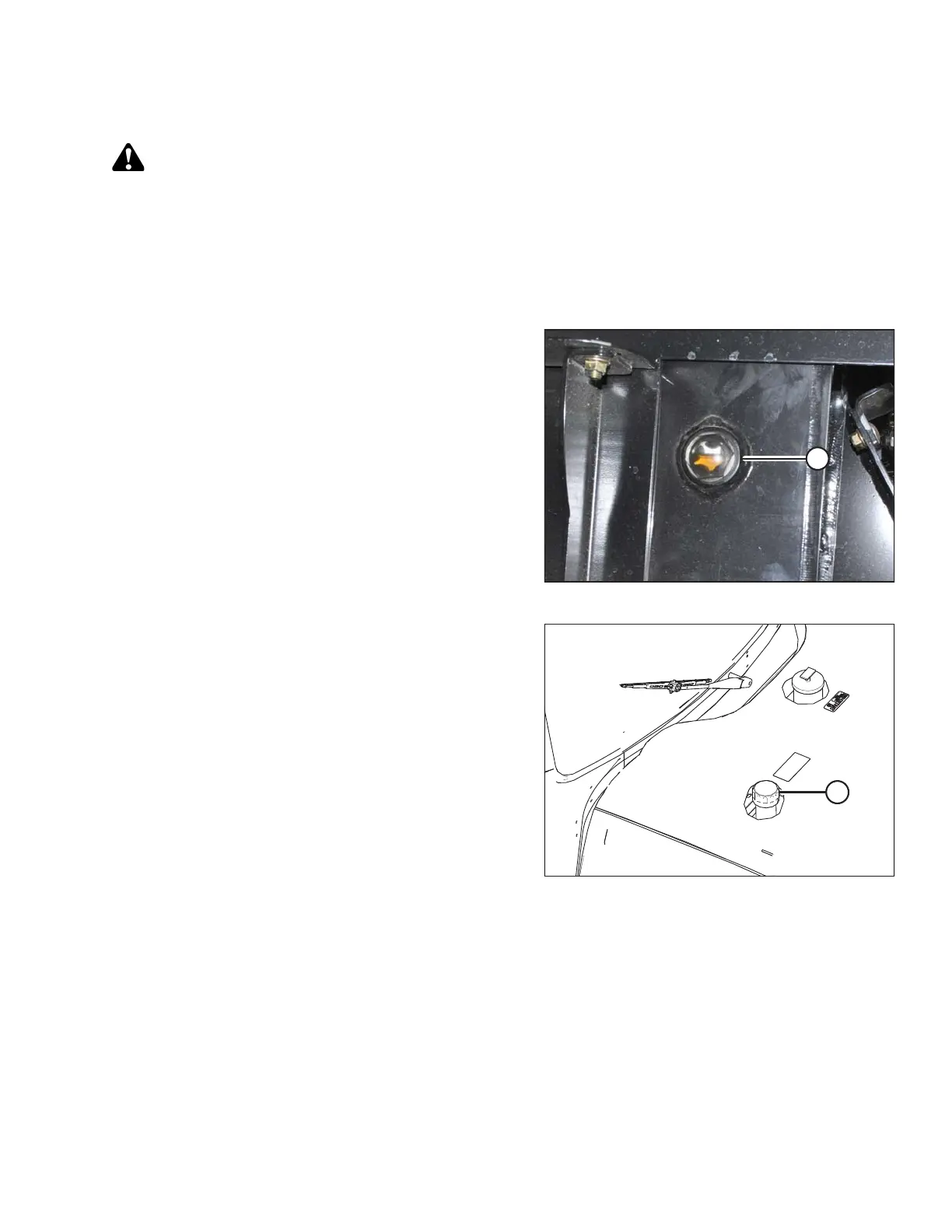

Figure 5.181: Hydraulic Oil Sight Glass
NOTE:
A sight glass (A) is provided under the hood on the right
side of the tank. It indicates oil level and signs of
contamination. No oil in the sight glass indicates oil
level is below the add mark on the dipstick.
Figure 5.182: Engine Hood
4. Stand on left (cab-forward side) platform to access the
filler pipe.
5. Clean cap (A) and surrounding area.
6. Turn filler cap (A) counterclockwise to unlock cap and
remove dipstick.
MAINTENANCE AND SERVICING
