MacDon M205 - Detaching an R Series Header; Detaching an R Series Header: Hydraulic Center-Link

214603 259 Revision A
1005186
1014769
A

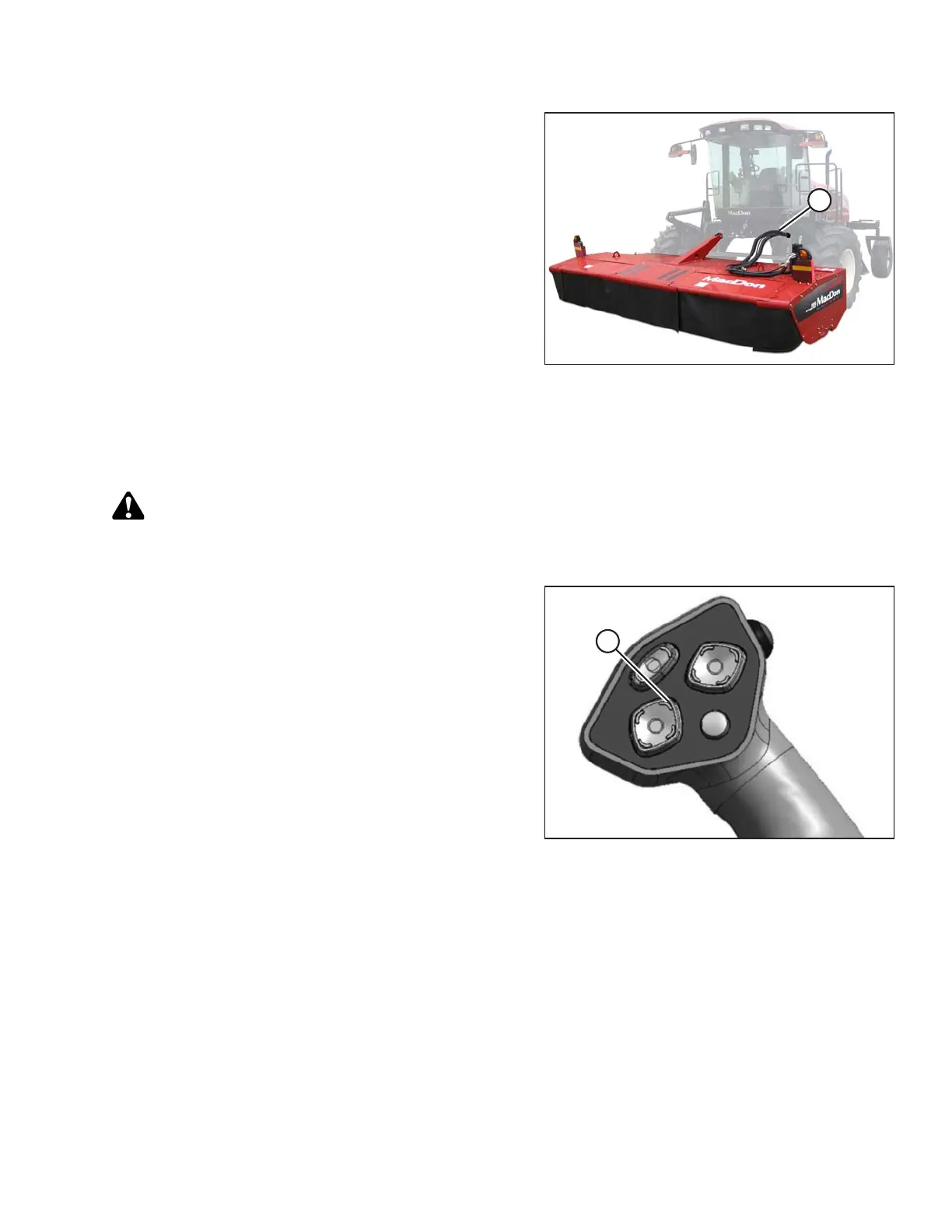

Figure 4.209: Header Connections
20. Connect the header drive hoses and electrical
harness (A) to the header. For instructions, refer to the
disc header operator’s manual.
4.5.7 Detaching an R Series Header
Detaching an R Series Header: Hydraulic Center-Link
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1008946
A
Figure 4.210: Ground Speed Lever (GSL)
1. Start engine and press HEADER UP switch (A) to raise
header to maximum height.
2. Rephase cylinders if one end of the header does not
raise fully. If rephasing is required, proceed as follows:
a. Press and hold the HEADER UP switch (A) until
both cylinders stop moving.
b. Continue to hold the switch for 3–4 seconds.
Cylinders are now phased.
