214603 359 Revision A

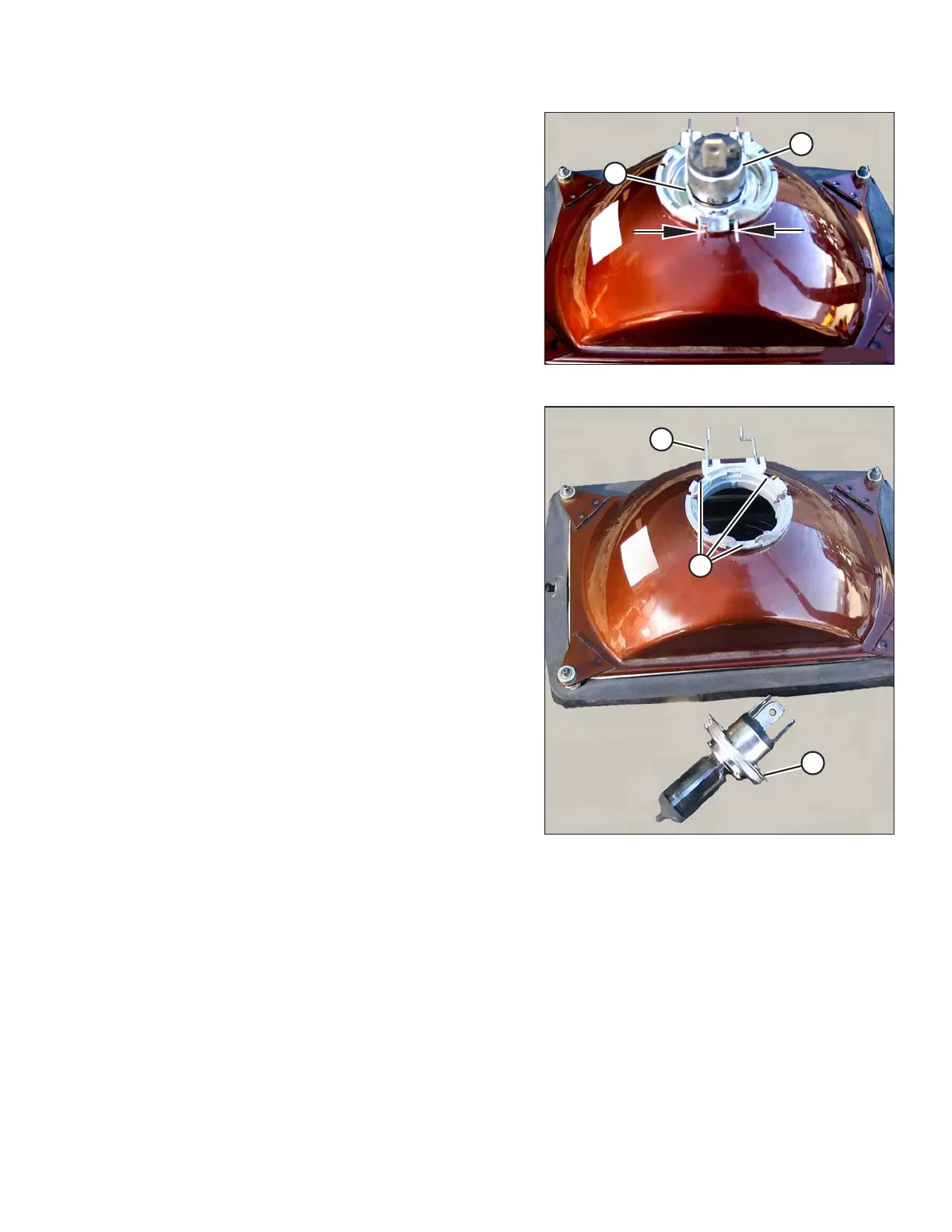

Figure 5.130: Headlight Assembly
3. Pinch wire retainer (A) and lift away from hooks.
4. Remove bulb (B) from body.
IMPORTANT:
Do NOT touch the glass of the halogen bulb as the oils
or other chemicals from your skin will cause the bulb to
fail prematurely.
Figure 5.131: Headlight Assembly
5. Align lugs (B) on new bulb with slots (C) in body and
push into place.
6. Secure bulb with wire retainer (A).
MAINTENANCE AND SERVICING
