214603 237 Revision A

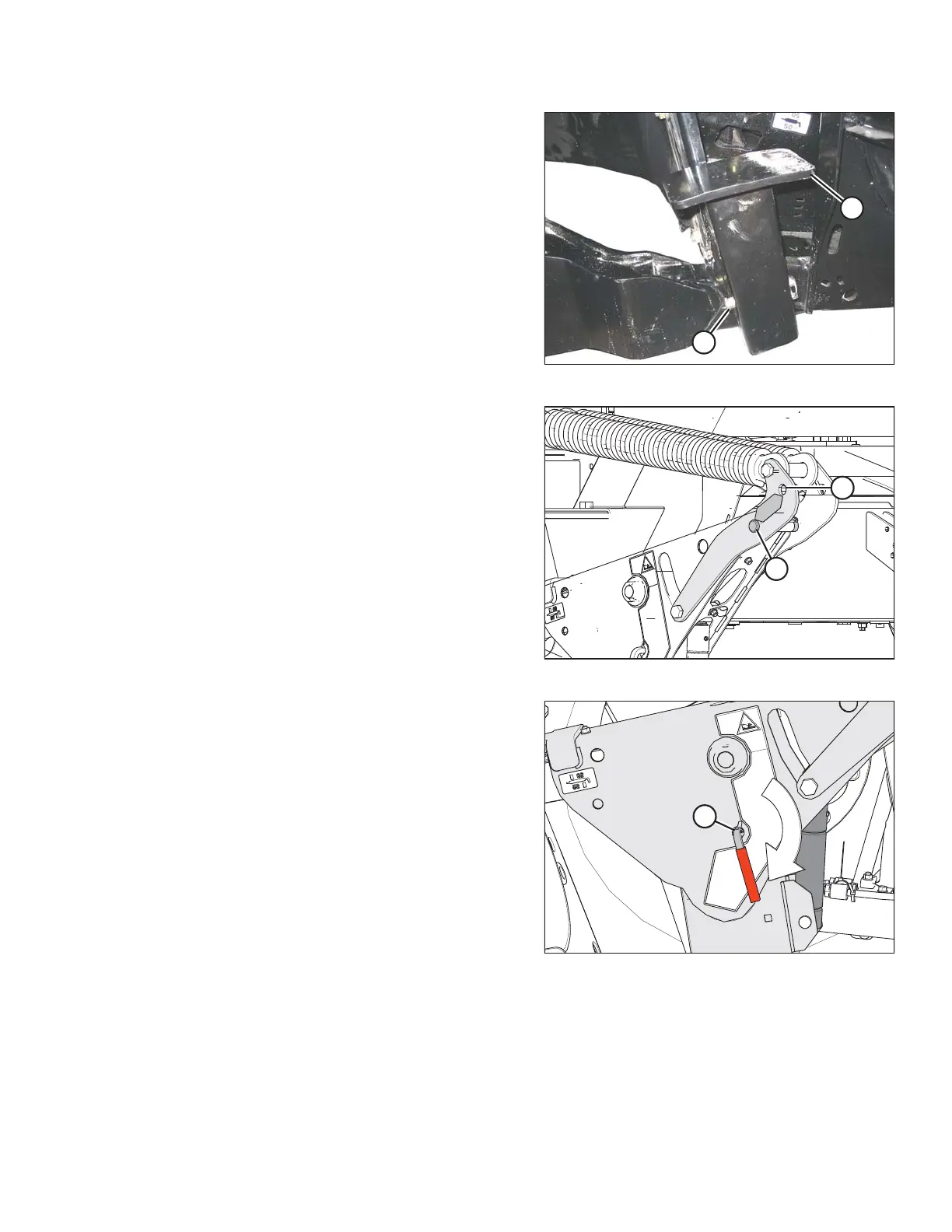

Figure 4.152: Header Stand
13. Remove lynch pin from clevis pin (A) in stand (B).
14. Hold stand (B) and remove pin (A).
15. Move stand (B) to storage position by inverting and
relocating onto bracket as shown. Reinsert clevis
pin (A) and secure with lynch pin.
Figure 4.153: Header Float Linkage
16. Remove the clevis pin from storage position (B) in
linkage and insert into hole (A) to engage the float
springs. Secure with hairpin.
Figure 4.154: Safety Prop Lever
17. Disengage the safety prop by turning lever (A)
downwards until lever locks into vertical position.
18. Repeat for opposite safety prop.
OPERATION
