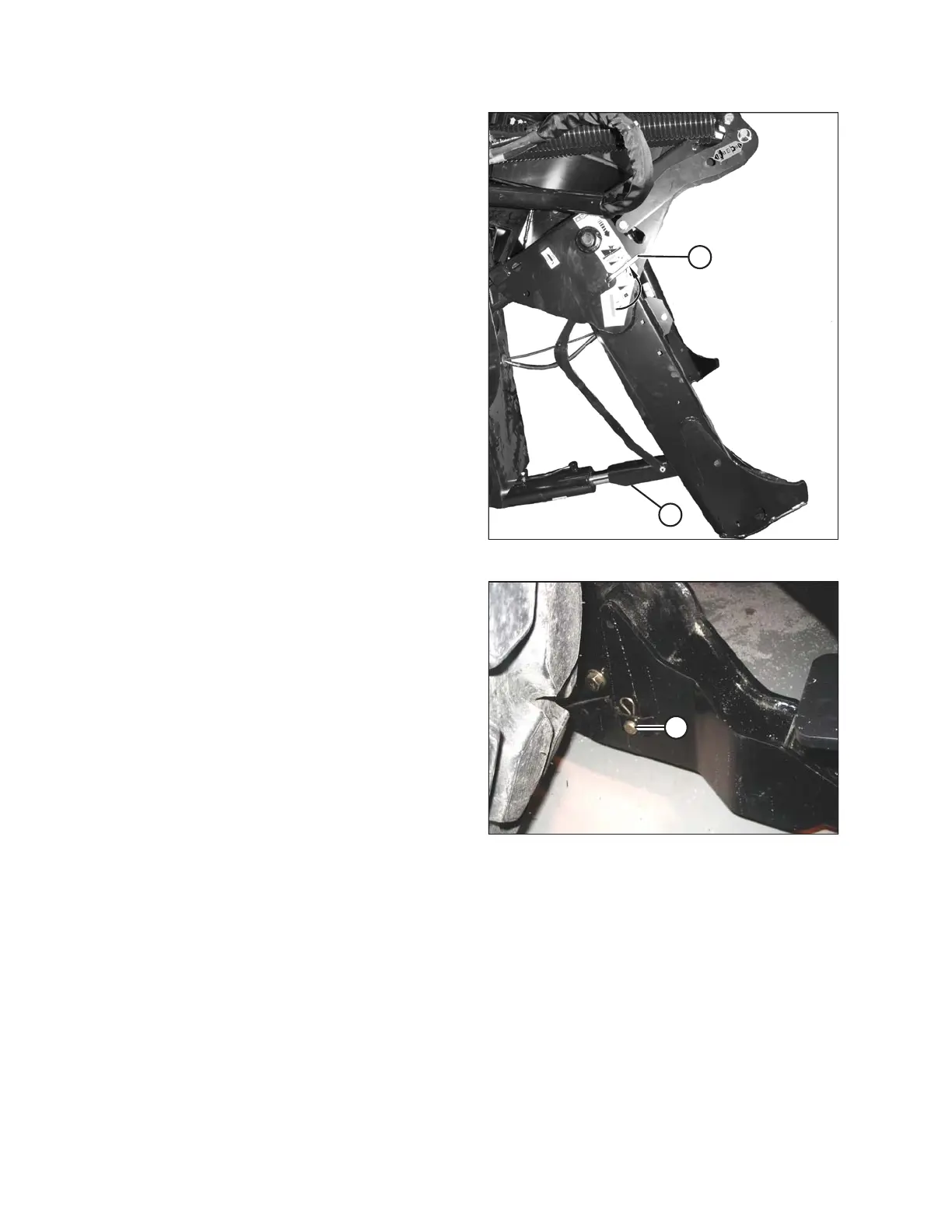

Figure 4.150: Safety Prop
11. Engage the safety props on both lift cylinders as
follows:
a. Stop engine and remove key from ignition.
b. Pull lever (A) and rotate towards the header to
release and lower safety prop (B) onto the lift
cylinder.
c. Repeat for opposite lift cylinder.
Figure 4.151: Header Support
12. Install clevis pin (A) through support and foot and
secure with hairpin. Repeat for opposite support.
IMPORTANT:
Ensure clevis pin (A) is fully inserted and hairpin is
installed behind bracket.
