MacDon M205 - Page 366

214603 346 Revision A
1000078
A
B

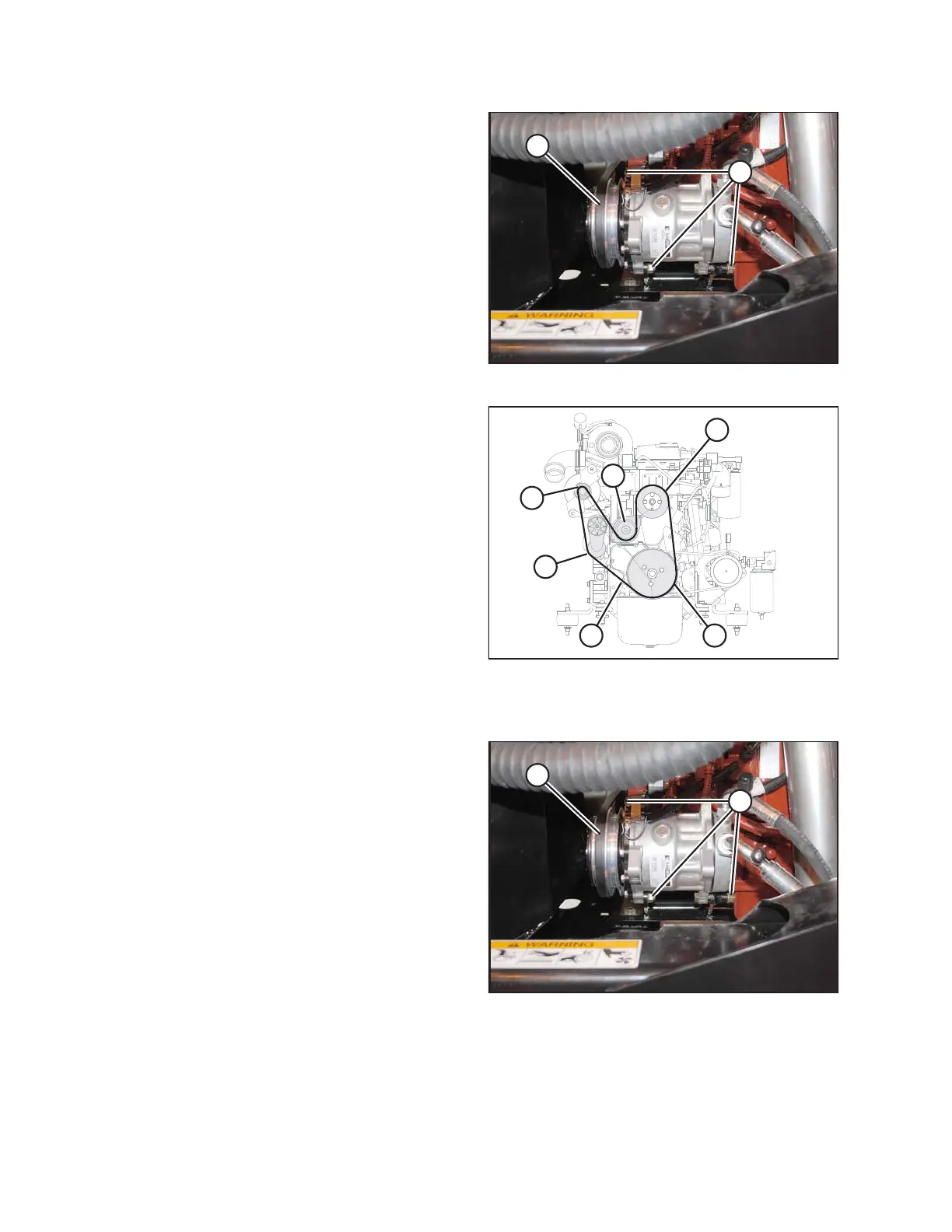

Figure 5.108: A/C Compressor
4. Loosen compressor mounting hardware (B) and push
compressor towards engine to release tension.
5. Remove belt (A) from compressor.
1009772
1
2
3
A
B
C
Figure 5.109: Fan Belt
6. Insert the drive end of a 1/2 in. drive ratchet wrench into
belt tensioner (A).
7. Rotate tensioner clockwise until fan belt (B) can be
slipped off pulley (C). Release tensioner and remove
wrench.
8. Remove belt in order 1–2–3 as shown. Route fan belt
around fan (not shown) and remove belt.
9. Install new belt (B) around fan (not shown) and onto
pulleys in order 3–2–1.
10. Insert the drive end of a 1/2 in. drive ratchet wrench into
belt tensioner (A).
11. Rotate tensioner clockwise until belt (B) can be slipped
onto pulley (C). Release tensioner and remove wrench.
12. Check that belt is properly seated in all pulley grooves.
1000078
A
B
Figure 5.110: A/C Compressor
13. Install new compressor belt (A).
14. Pry compressor away from engine so that a force of
35–55 N (8–12 lbf) deflects belt (A) 5 mm (3/16 in.) at
mid-span.
15. Tighten compressor mounting hardware (B).
16. Recheck tension and adjust as required.
17. Close the hood. Refer to 5.2.2 Closing Hood (Lower
Position), page 285.
18. Close the platform. Refer to 5.3.2 Closing Platforms
(Standard Position), page 289.
MAINTENANCE AND SERVICING
