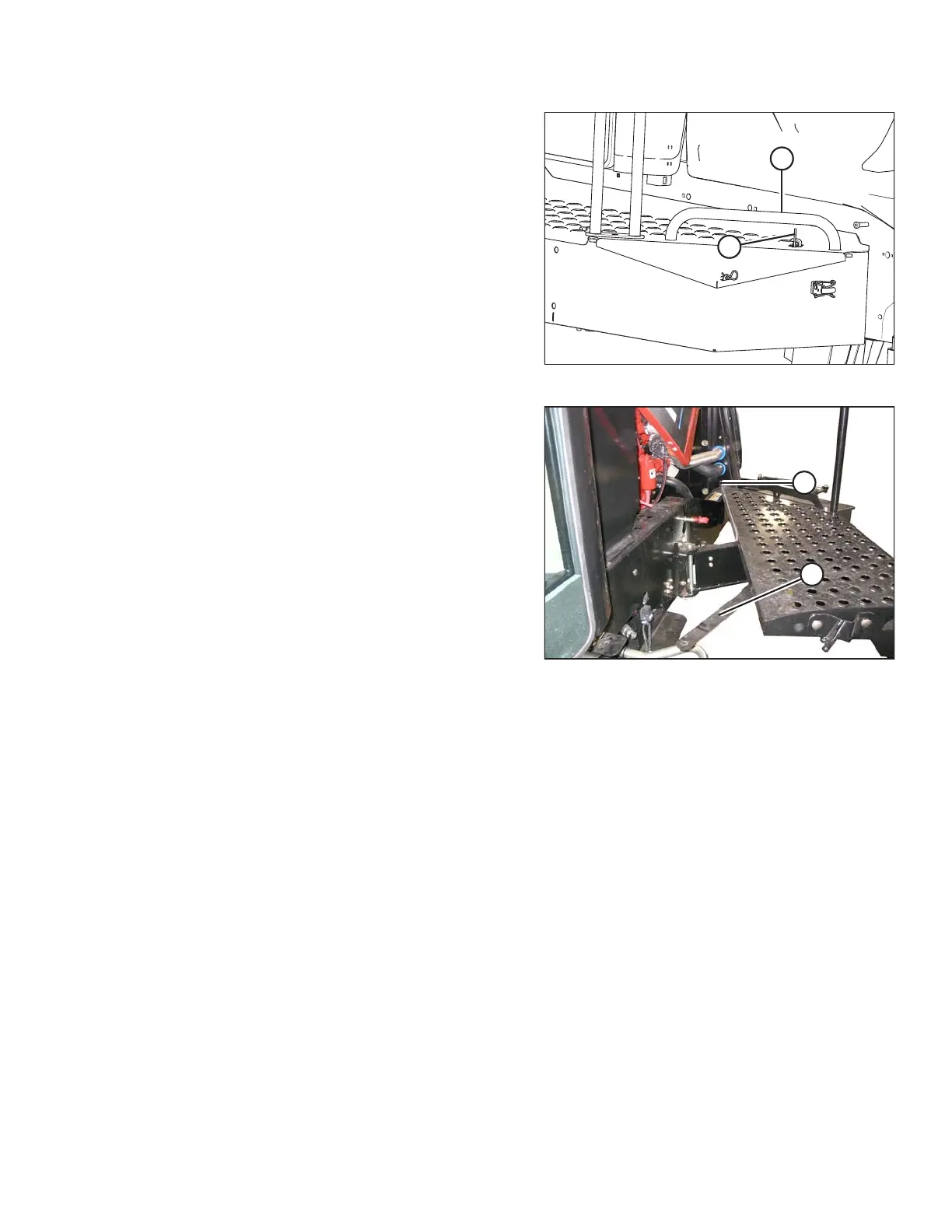

Figure 5.10: Platform Latch
2. Unlock latch (A) and move platform (B) toward open
position. Do NOT lock in full aft position.
Figure 5.11: Platform
3. Remove the nut and bolt that secure link (A) to the
frame. Swing link (A) out of the way.
4. Pull the front (cab-forward) end of platform away from
frame while moving it towards the walking beam. The
aft corner of platform (B) should project slightly into the
engine bay when the opening is optimum.
