CAUTION
• To tow a header with an M205 Self-Propelled Windrower, the header must be equipped with the
appropriate equipment to comply with local regulations.
• Before towing, conduct a pretrip inspection to verify signal lighting and safety equipment is installed
and functioning properly.
• Do NOT exceed the Combined Gross Vehicle Weight (CGVW) specified in table 4.1, page 182.
• To prevent damage and/or loss of control, ensure the machine and attached equipment are within the
following weight limits:

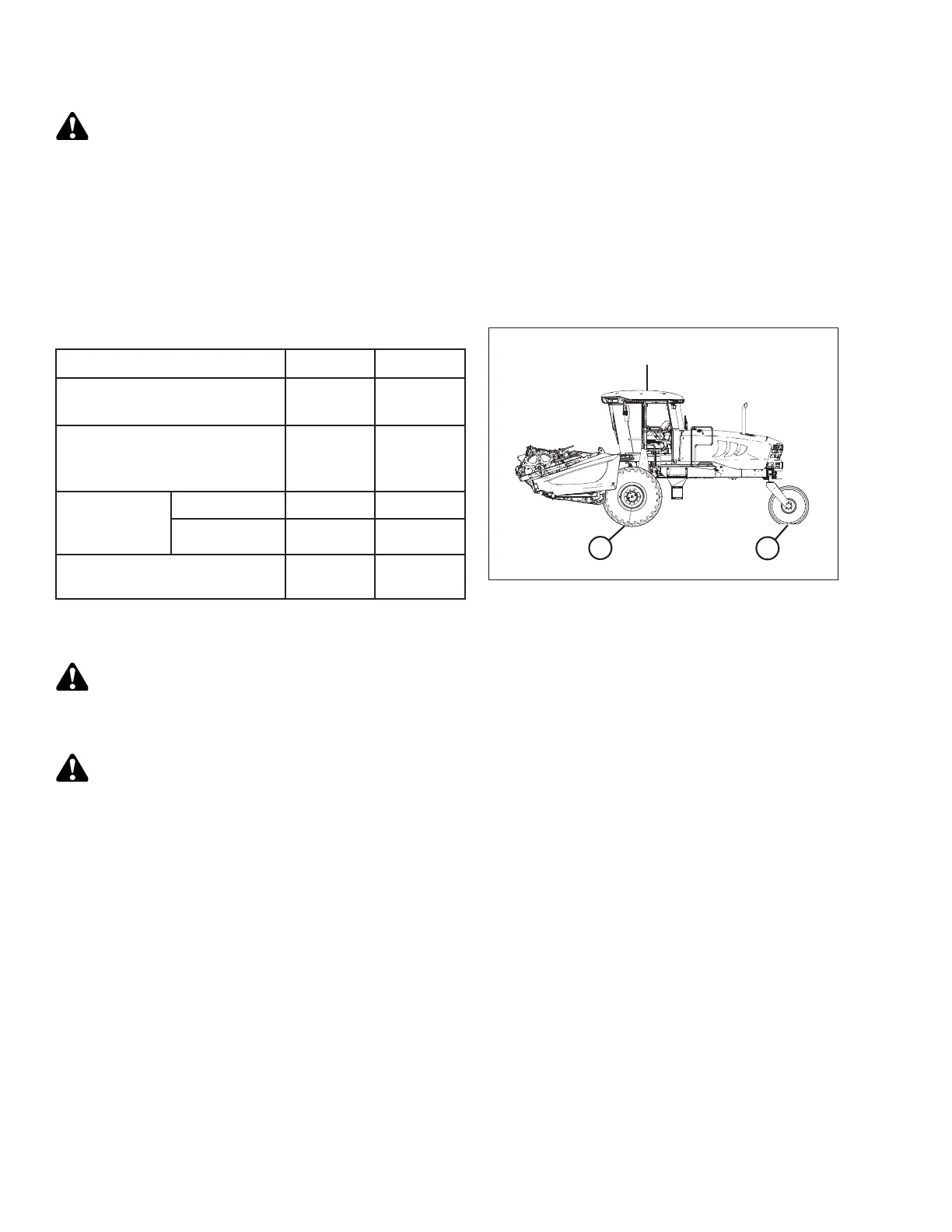

Figure 4.37: Maximum Weight
Table 4.1 Maximum Weight
kg lb.
Maximum GVW (includes
mounted implements)
9750 21,500
Maximum CGVW (includes
towed and mounted
implements)
10,480 23,100
Weight (A) on
both drive
wheels
Maximum 8500 18,750
Minimum 4570 10,070
Maximum weight (B) on both
caster tires
2750 6050
Converting from Field to Transport Mode
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
DANGER
To avoid bodily injury from fall of raised header, always engage safety props when working on or around
raised header, and before going under header for any reason.
1. Set header on the ground (field position).
2. Disconnect the following hydraulic and electrical connections:
a. Left Side – Store hydraulic hoses and electrical cable into the storage position. Refer to header
operator’s manual.
b. Right Side – Release the multi-link and place into storage on windrower. Refer to header operator’s
manual.
OPERATION
